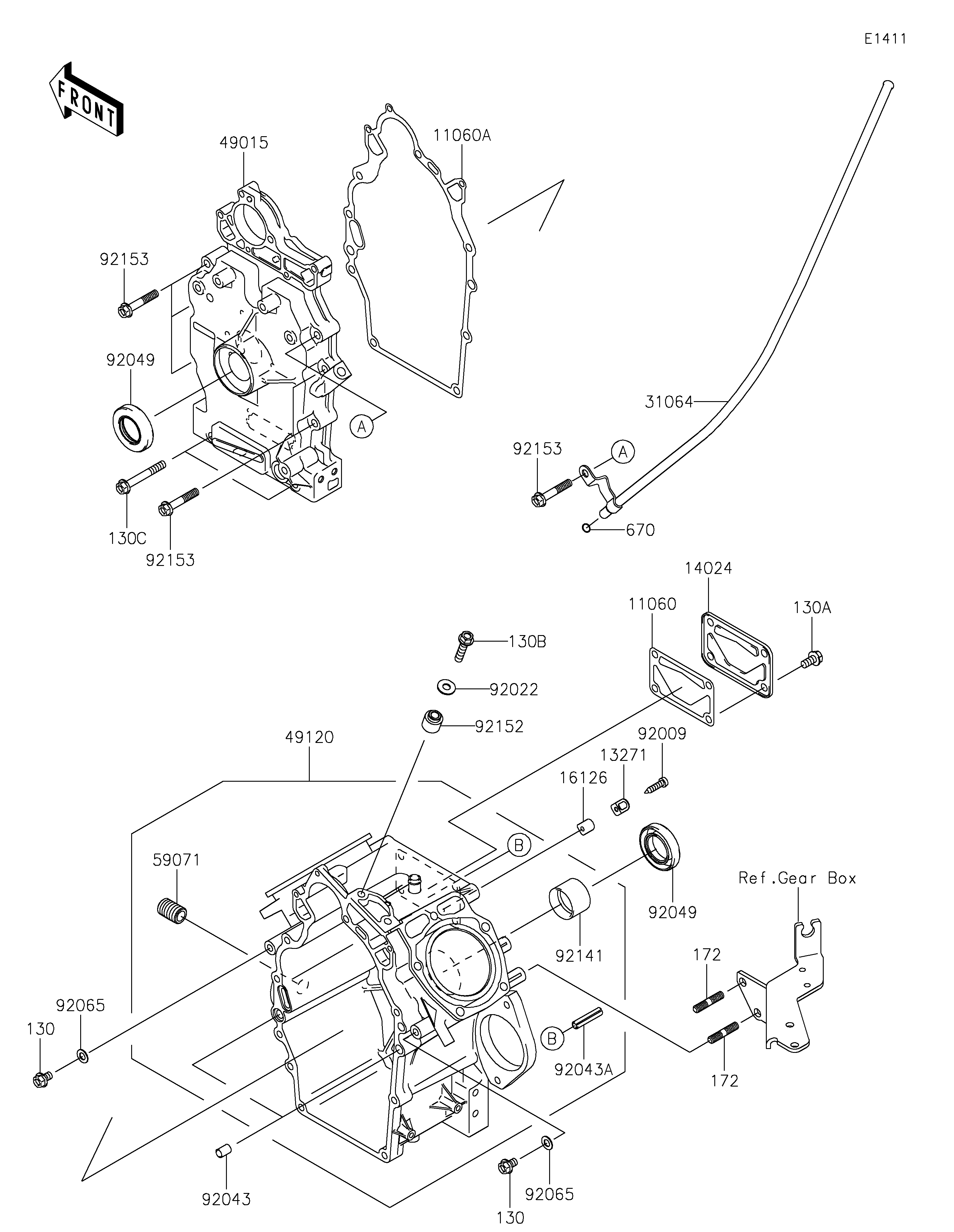

2021 MULE™ 4010 TRANS4x4® FE - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11060
11060A
13271
14024
16126
31064
49015
49120
59071
92009
92022
92043
92043A
92049
92049
92065
92065
92141
92152
92153
92153
92153
130
130
130A
130B
130C
172
172
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER,COVER 11060 11060-2089 1
GASKET,CRANKCASE COVER 11060A 11060-2449 1
PLATE 13271 13271-2054 1
COVER 14024 14024-2292 1
VALVE 16126 16126-2146 1
PIPE-COMP 31064 31064-0713 1
COVER-CRANKCASE 49015 49015-6324 1
CRANKCASE-COMP 49120 49120-0847 1
JOINT 59071 59071-0733 1
SCREW 92009 92009-2308 1
WASHER,8.5X20X1.6 92022 92022-1561 1
PIN,DOWEL,10X14 92043 92043-1037 2
PIN,2X25 92043A 92043-2227 1
SEAL-OIL 92049 92049-2112 2
GASKET,8.5X16X1 92065 92065-023 2
BEARING-PLANE 92141 92141-2122 1
COLLAR 92152 92152-1901 1
BOLT,FLANGED,8X45 92153 92153-2130 6
BOLT-FLANGED,8X12 130 130AB0812 2
BOLT-FLANGED,8X16 130A 130BA0816 4
BOLT-FLANGED,8X35 130B 130BA0835 1
BOLT-FLANGED,8X60 130C 130CA0860 2
BOLT-STUD,8X25 172 172BA0825 2
O RING,10MM 670 670B2010 1
