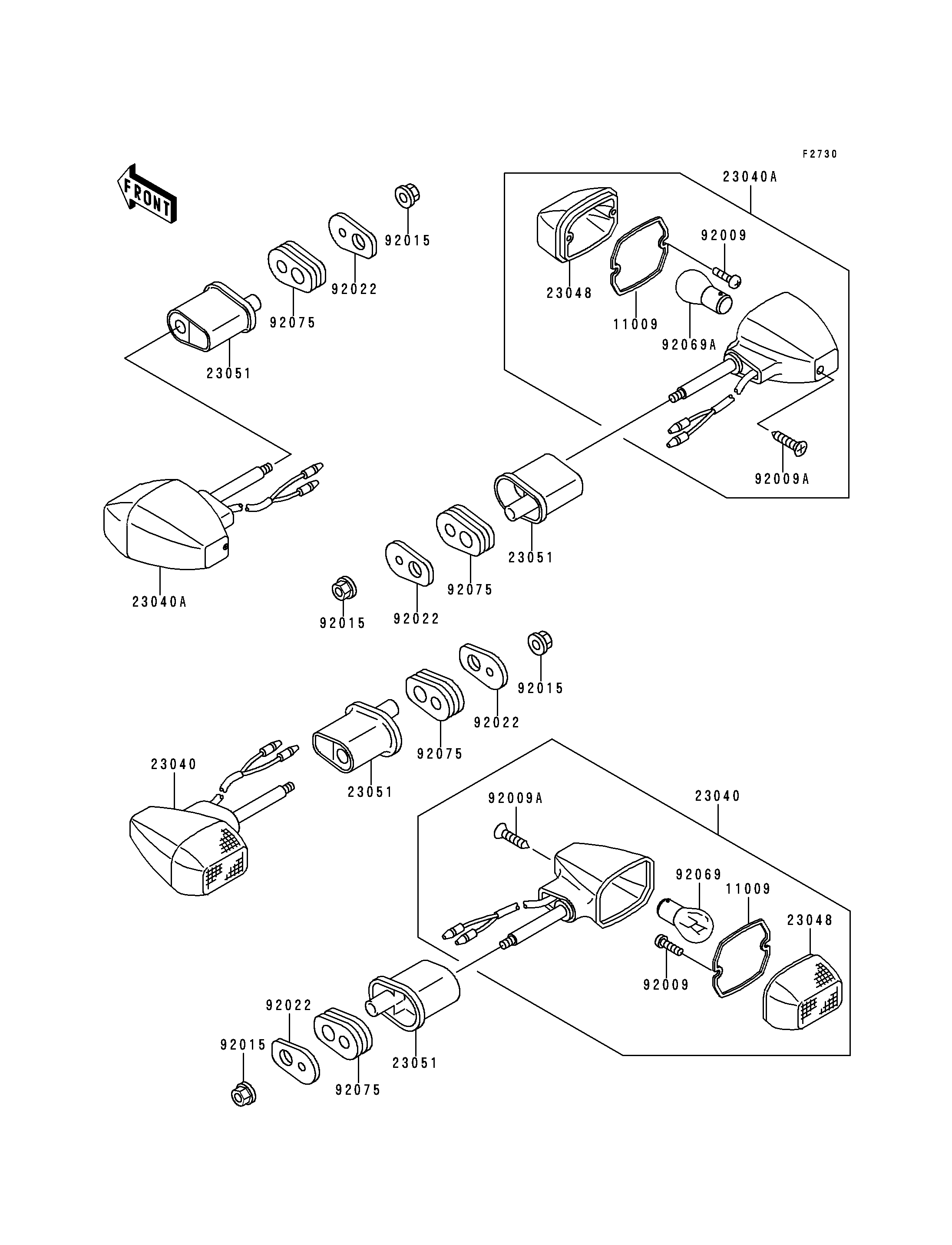

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11009 | 11009-1402 | 4 | ||
| LAMP-SIGNAL,RR | 23040 | 23040-1195 | 2 | ||
| LAMP-SIGNAL,FR | 23040A | 23040-1279 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1054 | 4 | ||
| BRACKET-SIGNAL LAMP | 23051 | 23051-1164 | 4 | ||
| SCREW,TAPPING,3X16 | 92009 | 92009-1115 | 8 | ||
| SCREW,TAPPING,4X20 | 92009A | 92009-1304 | 4 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| WASHER,SIGNAL LAMP | 92022 | 92022-1672 | 4 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
| BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
| DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 4 |
