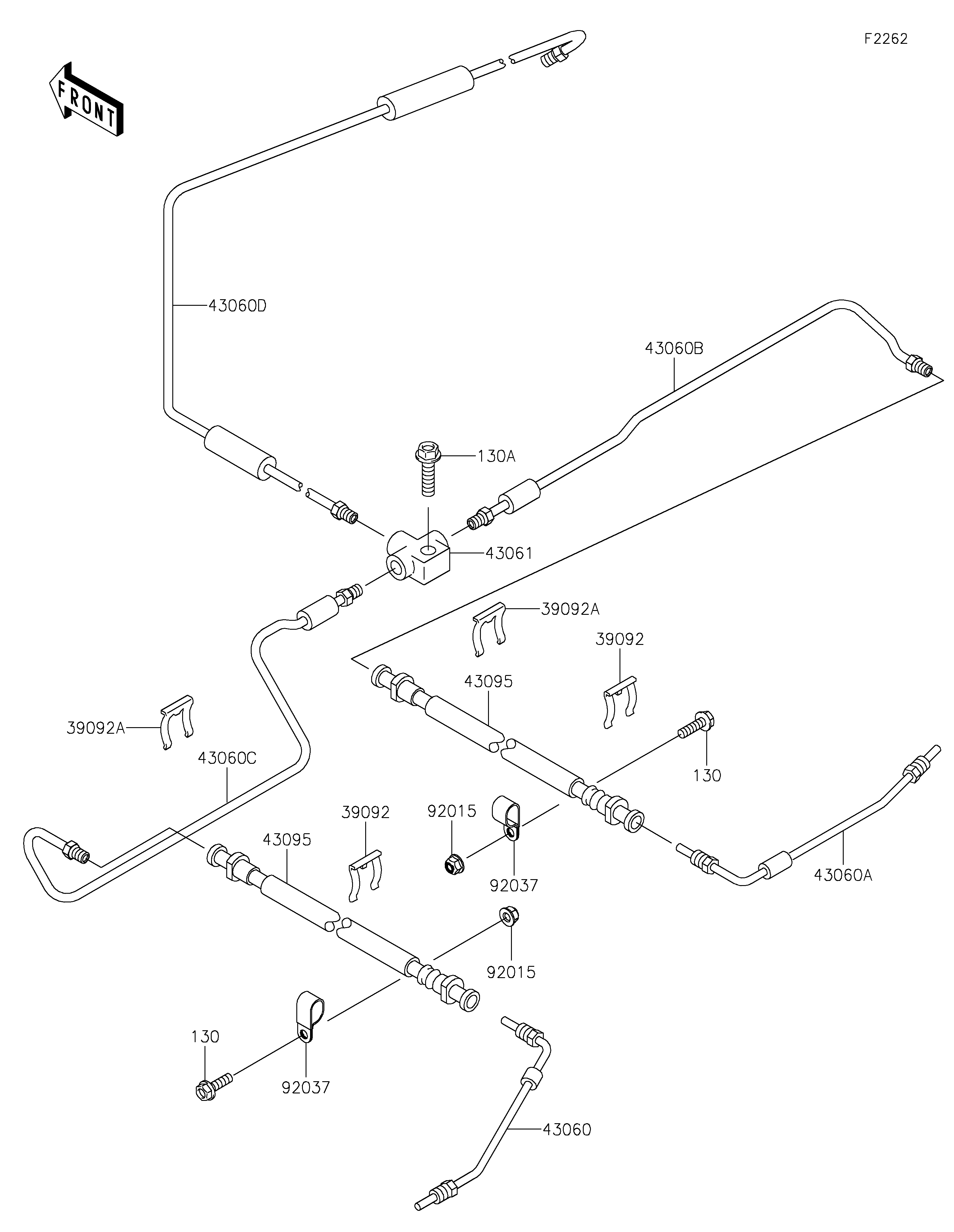

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-HAIR 39092 39092-1052 2
PIN-HAIR 39092A 39092-1059 2
PIPE-BRAKE,RR,LH 43060 43060-1083 1
PIPE-BRAKE,RR,RH 43060A 43060-1084 1
PIPE-BRAKE,MIDDLE,RH 43060B 43060-7503 1
PIPE-BRAKE,MIDDLE,LH 43060C 43060-7504 1
PIPE-BRAKE,FR 43060D 43060-7505 1
JOINT-BRAKE 43061 43061-1063 1
HOSE-BRAKE,RR 43095 43095-1609 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
CLAMP 92037 92037-1608 2
BOLT-FLANGED,6X20 130 130AA0620 2
BOLT-FLANGED,8X30 130A 130CA0830 1
