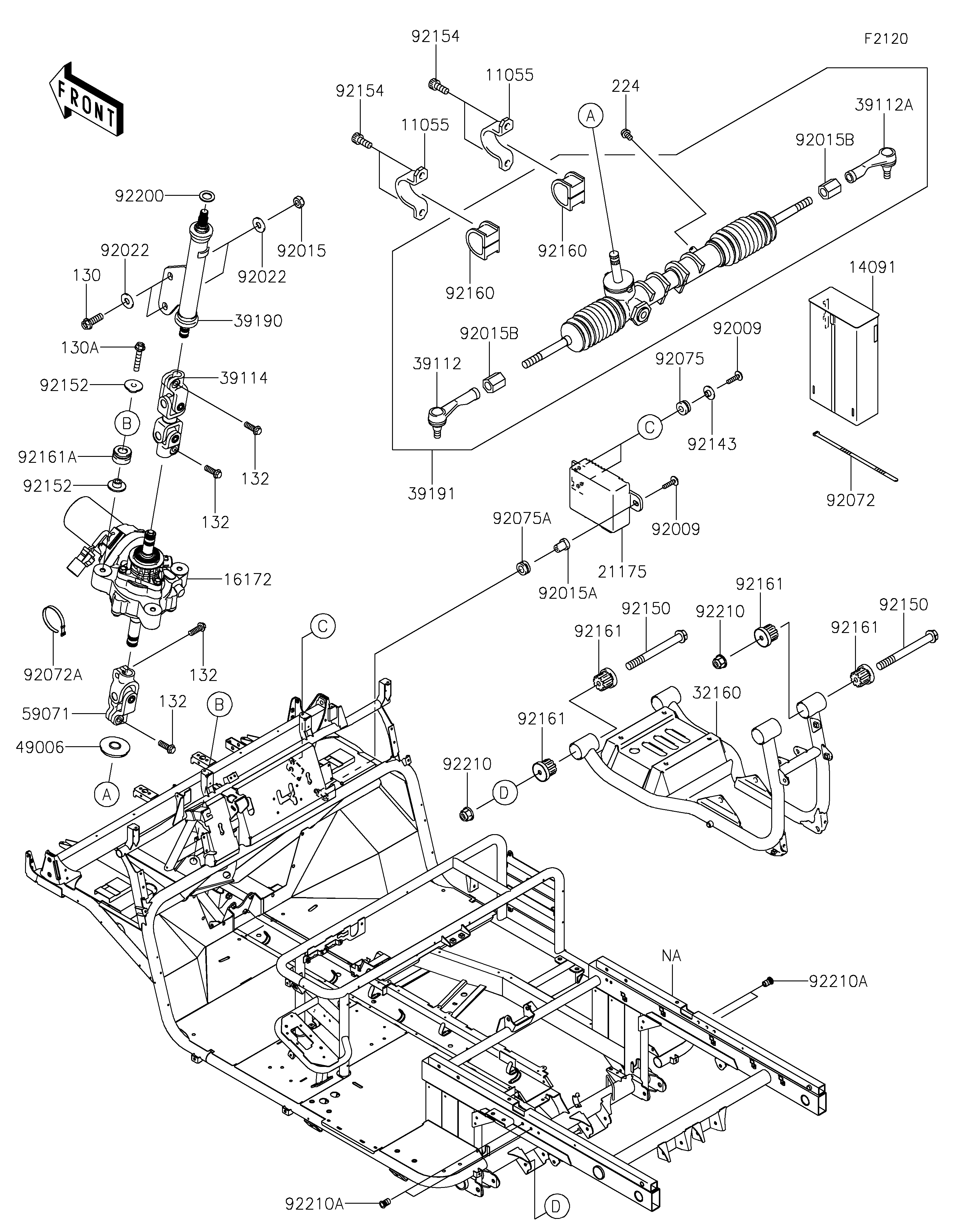

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STEERING GEAR 11055 11055-1240 2
COVER,ECU 14091 14091-7560 1
ACTUATOR 16172 16172-0028 1
CONTROL UNIT-ELECTRONIC,E.P.S 21175 21175-7501 1
FRAME-COMP,RR 32160 32160-0004 1
RODEND-TIE,STEERING GEAR,LH 39112 39112-1068 1
RODEND-TIE,STEERING GEAR,RH 39112A 39112-1069 1
SHAFT-COMP-STRG 39114 39114-0019 1
SHAFT-ASSY-STEERING 39190 39190-7501 1
GEAR-ASSY-STEERING 39191 39191-0021 1
BOOT,STEERING SHAFT,LWR 49006 49006-1255 1
JOINT 59071 59071-7501 1
SCREW,6X28,BLACK 92009 92009-1400 3
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,RUBBER,6MM 92015A 92015-1692 1
NUT 92015B 92015-1864 2
WASHER,10.5X26X2.3 92022 92022-044 4
BAND,L=123 92072 92072-030 1
BAND,L=186 92072A 92072-056 1
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-294 1
COLLAR,L=6.5 92143 92143-1025 2
BOLT,FLANGED,10X100 92150 92150-1731 4
COLLAR,8.5X30X10.6 92152 92152-2149 6
BOLT,SOCKET,10X23 92154 92154-1434 4
DAMPER,STEERING GEAR 92160 92160-1084 2
DAMPER 92161 92161-0800 8
DAMPER,ACTUATOR 92161A 92161-7517 3
WASHER,15X25X1.6 92200 92200-0460 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
NUT,POP,6MM,L=15 92210A 92210-1397 4
BOLT-FLANGED,10X30 130 130BA1030 2
BOLT-FLANGED,8X45 130A 130CA0845 3
BOLT-FLANGED-SMALL,8X25 132 132BA0825 4
SCREW-PAN-WP-CROS,5X8 224 224AA0508 1
