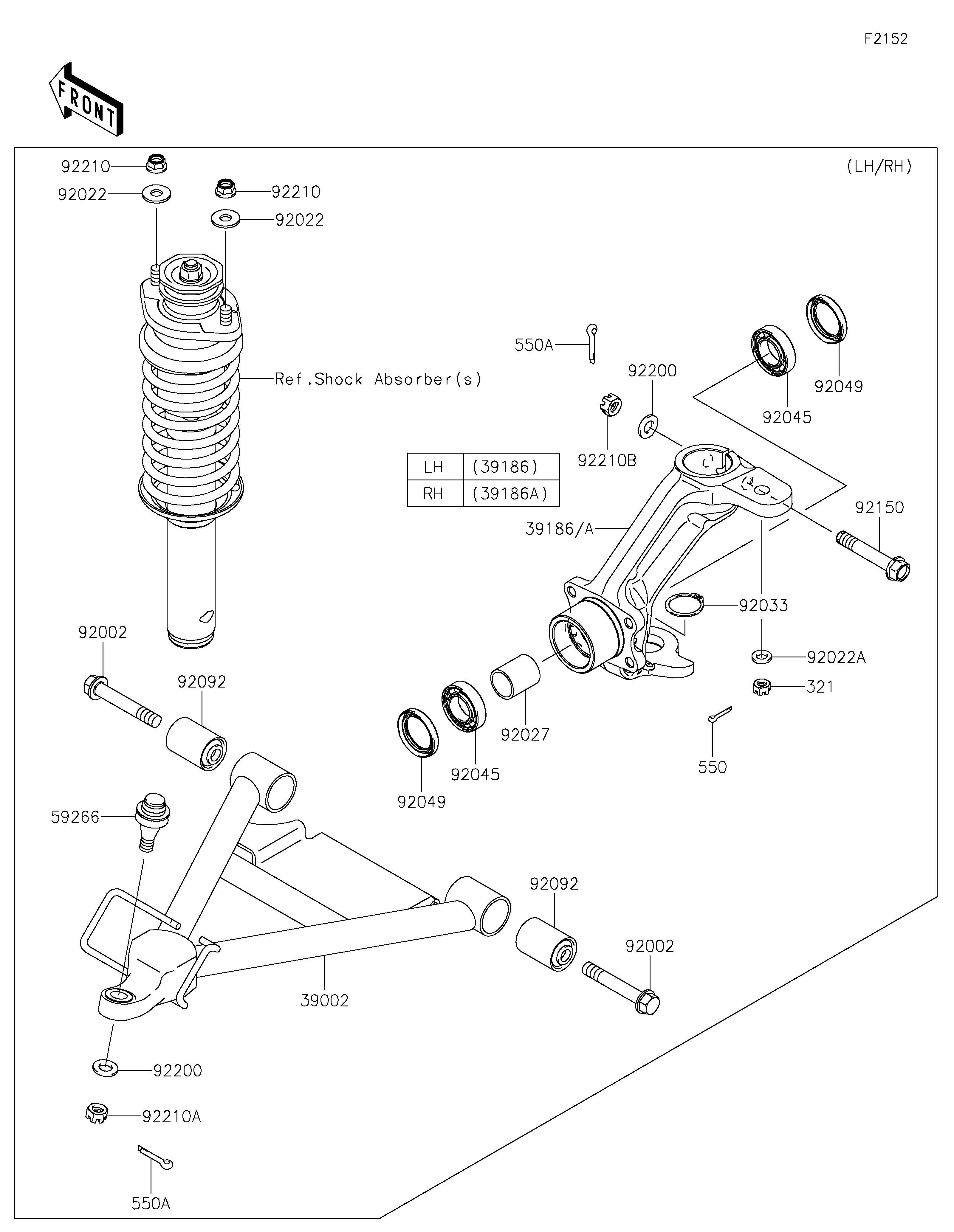

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SUSP 39002 39002-0001 2
KNUCKLE,FR,LH 39186 39186-0074 1
KNUCKLE,FR,RH 39186A 39186-0075 1
JOINT-BALL 59266 59266-1080 2
BOLT,FLANGED,12X75 92002 92002-1661 4
WASHER,10.5X26X2.3 92022 92022-044 4
WASHER,10.5X18X2.5 92022A 92022-1876 2
COLLAR,L=34.5 92027 92027-1538 2
RING-SNAP,C-TYPE,32MM 92033 92033-1262 2
BEARING-BALL 92045 92045-3707 4
SEAL-OIL,SD35X47X7HS 92049 92049-1513 4
BUSHING-RUBBER 92092 92092-1065 4
BOLT,FLANGED,12X72 92150 92150-1356 2
WASHER,12.3X23X2.3 92200 92200-1004 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
NUT,CASTLE,12MM 92210A 92210-0395 2
NUT,12MM 92210B 92210-7501 2
NUT-CASTLE 321 321BA1000 2
PIN-COTTER,2.0X22 550 550AA2022 2
PIN-COTTER,3.0X25 550A 550AA3025 4
