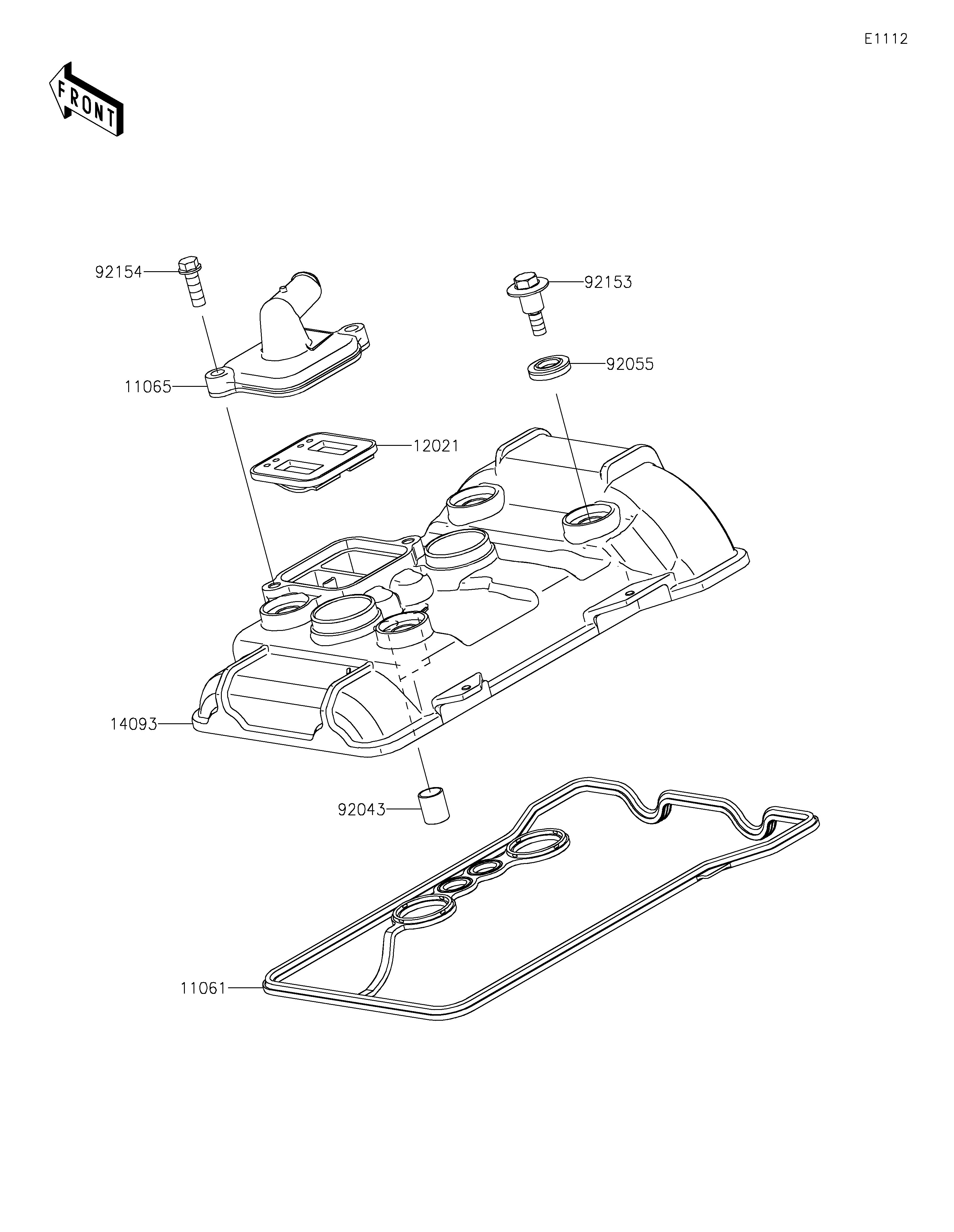

2024 Ninja 400 ABS - Cylinder Head Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD COVER | 11061 | 11061-1337 | 1 | ||
| CAP,HEAD | 11065 | 11065-1311 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-0708 | 1 | ||
| COVER,CYLINDER HEAD | 14093 | 14093-0818 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 2 | ||
| RING-O | 92055 | 92055-0143 | 4 | ||
| BOLT,HEAD COVER | 92153 | 92153-0793 | 4 | ||
| BOLT,FLANGED,6X18 | 92154 | 92154-1775 | 2 |
| GASKET,CYLINDER HEAD COVER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,HEAD | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CYLINDER HEAD | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEAD COVER | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
