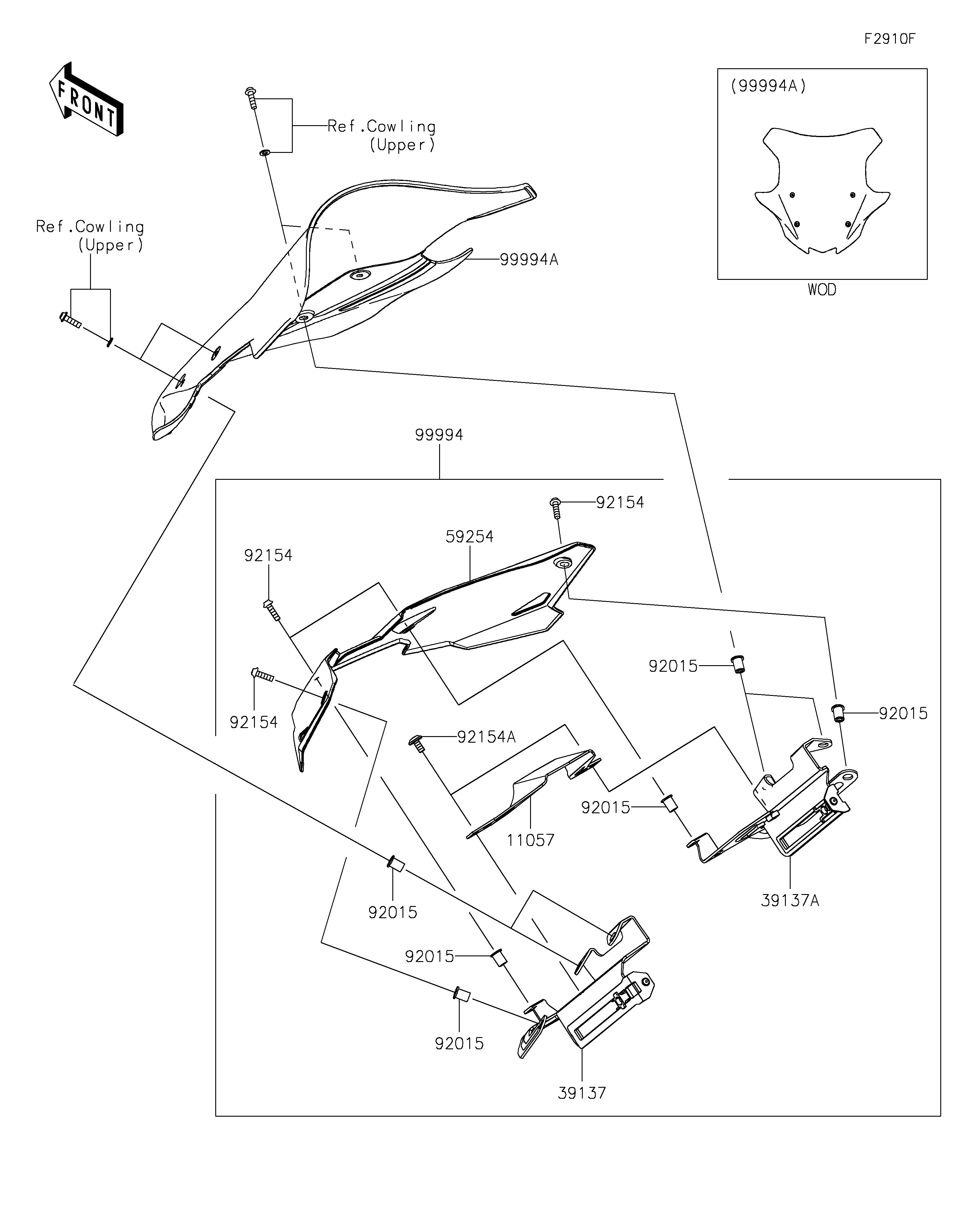

2023 VERSYS® 650 - Accessory(Windshield)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CNT | 11057 | 11057-7452 | 1 | ||
| STAY-COMP,LH | 39137 | 39137-0720 | 1 | ||
| STAY-COMP,RH | 39137A | 39137-0721 | 1 | ||
| DEFLECTOR | 59254 | 59254-0006 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 8 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-2107 | 4 | ||
| BOLT,SOCKET,6X12 | 92154A | 92154-2706 | 2 | ||
| WINDSHIELD HIGH BKT KIT | 99994 | 99994-1689 | 1 | ||
| LARGE WINDSHIELD CLEAR KIT | 99994A | 99994-2172 | 1 |
| BRACKET,CNT | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY-COMP,LH | |
| REF # | 39137 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY-COMP,RH | |
| REF # | 39137A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DEFLECTOR | |
| REF # | 59254 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X18 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WINDSHIELD HIGH BKT KIT | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LARGE WINDSHIELD CLEAR KIT | |
| REF # | 99994A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
