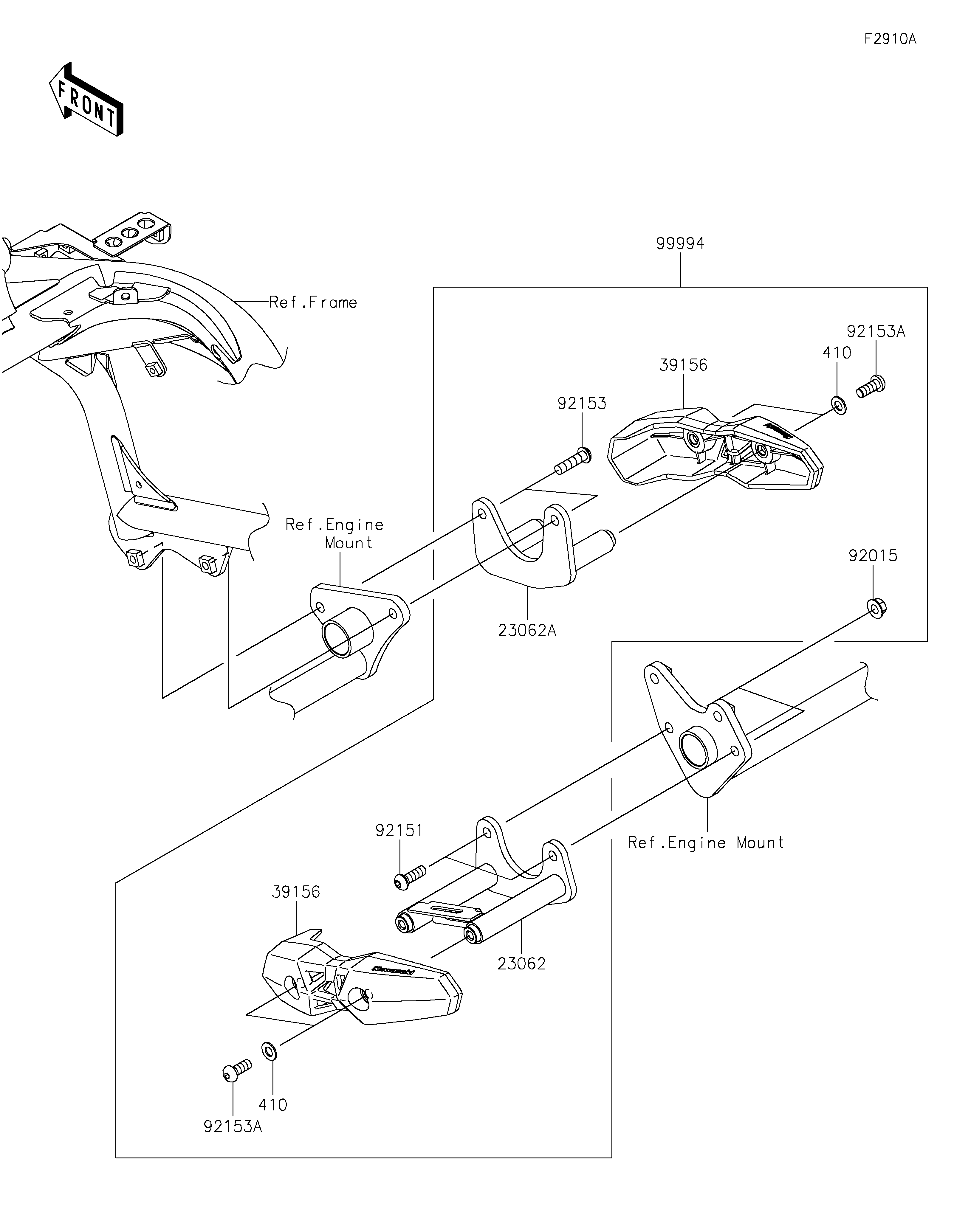

2023 VERSYS® 650 - Accessory(Engine Guard)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-COMP,LH | 23062 | 23062-1363 | 1 | ||
| BRACKET-COMP,RH | 23062A | 23062-1364 | 1 | ||
| PAD,SLIDER | 39156 | 39156-1818 | 2 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
| BOLT,SOCKET,8X25 | 92151 | 92151-1327 | 2 | ||
| BOLT,SOCKET,8X30 | 92153 | 92153-0393 | 2 | ||
| BOLT,SOCKET,8X20 | 92153A | 92153-0912 | 4 | ||
| GUARD-ENGINE | 99994 | 99994-1848 | 1 | ||
| WASHER-PLAIN-SMALL,8MM,BLACK | 410 | 410AB0800 | 4 |
| BRACKET-COMP,LH | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP,RH | |
| REF # | 23062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SLIDER | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X25 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUARD-ENGINE | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,8MM,BLACK | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
