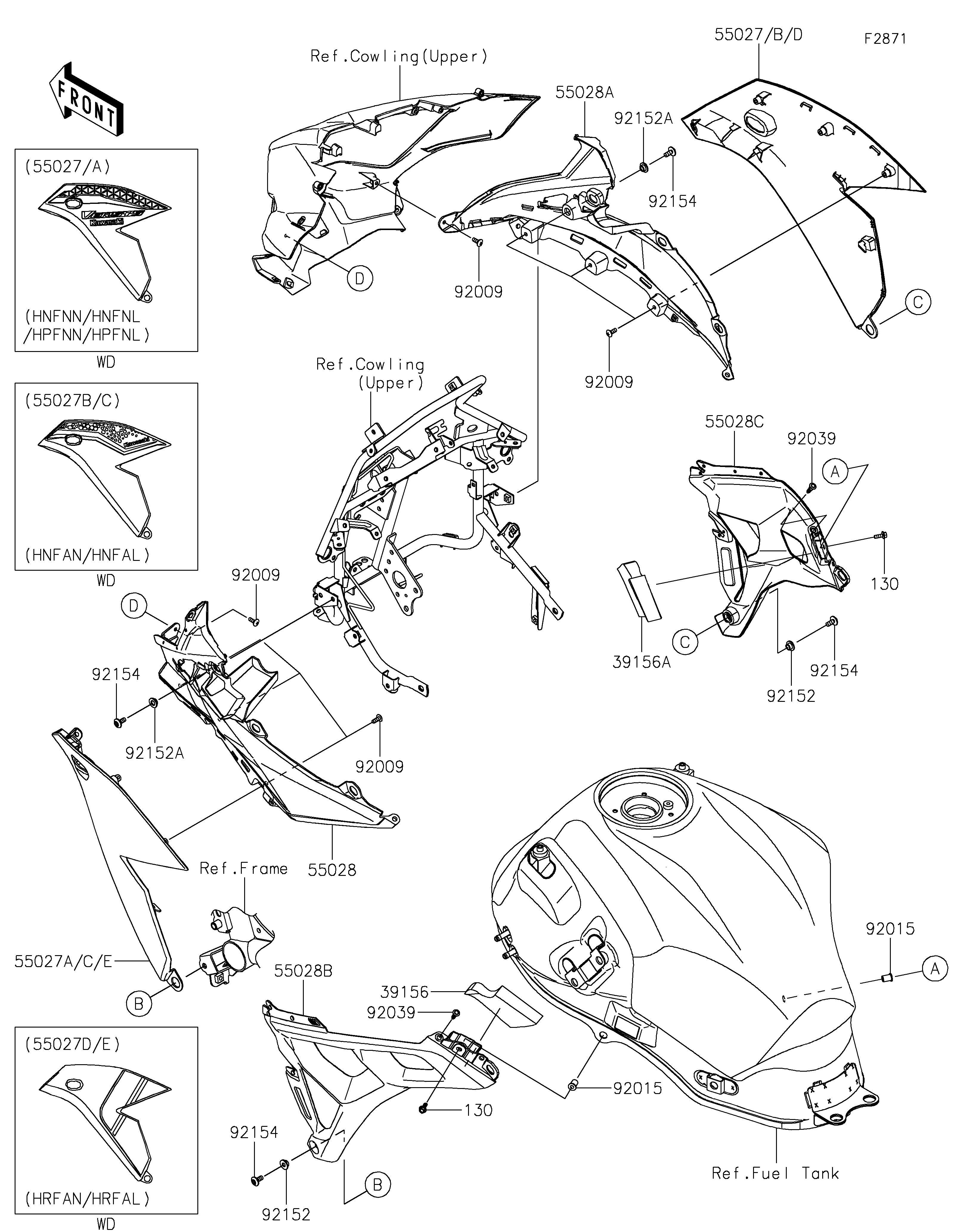

2023 VERSYS® 650 - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
39156
39156A
55027
55027A
55028
55028A
55028B
55028C
92009
92009
92009
92009
92015
92015
92039
92039
92152
92152
92152A
92152A
92154
92154
92154
92154
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,SIDE COWL.,LH 39156 39156-2791 1
PAD,SIDE COWL.,RH 39156A 39156-2792 1
COWLING,SIDE FR,RH,M.F.S.BLACK 55027 55027-5227-739 1
COWLING,SIDE,FR,LH,M.F.S.BLACK 55027A 55027-5231-739 1
COWLING,SIDE MID,LH 55028 55028-0813 1
COWLING,SIDE MID,RH 55028A 55028-0814 1
COWLING,SIDE RR,LH 55028B 55028-0817 1
COWLING,SIDE RR,RH 55028C 55028-0818 1
SCREW,TAPPING,5X14 92009 92009-1197 8
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0709 2
COLLAR,6.5X10X6.4 92152 92152-2287 2
COLLAR 92152A 92152-2296 2
BOLT,SOCKET,6X14 92154 92154-0932 4
BOLT-FLANGED,5X14 130 130BA0514 2
