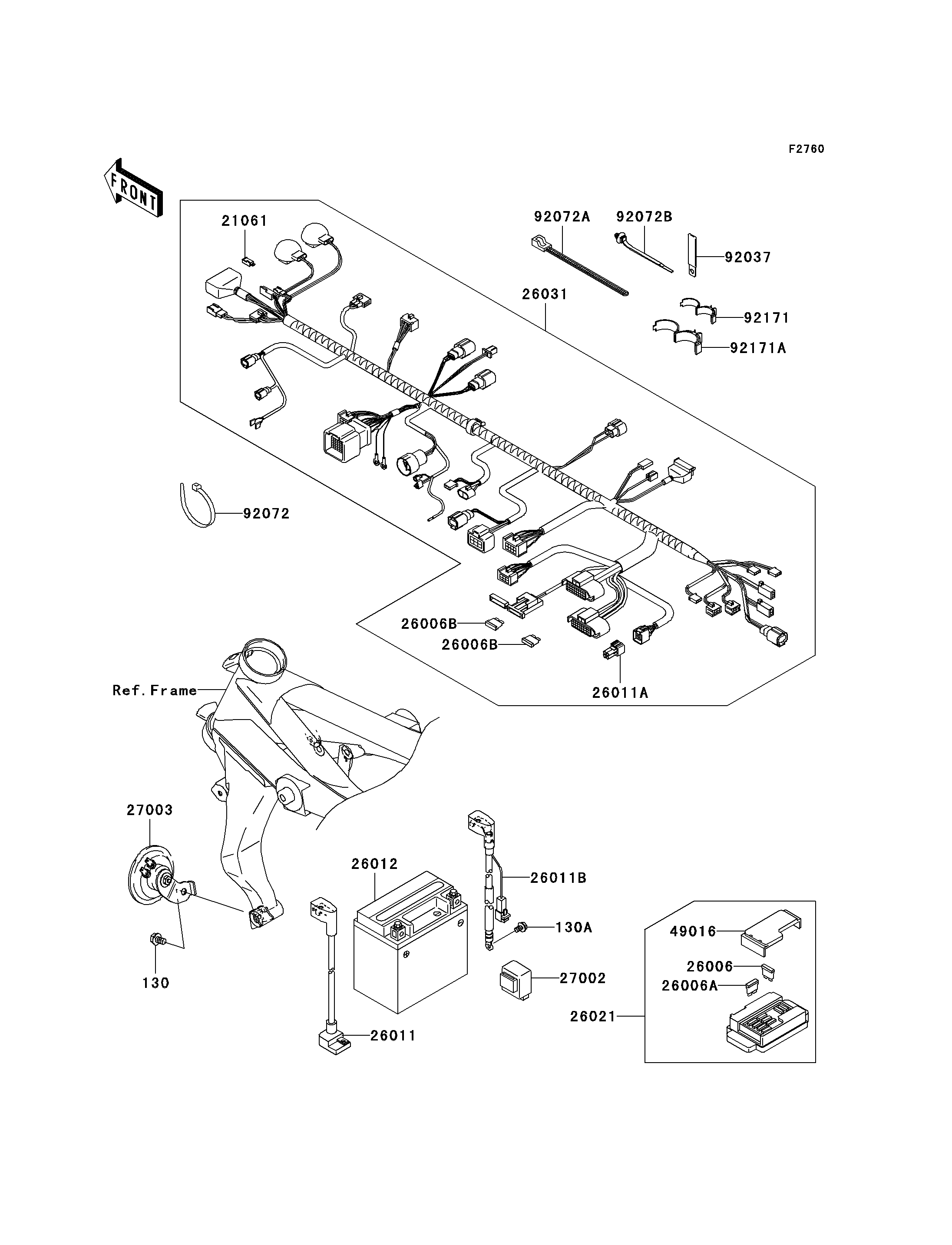

2006 Z1000 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
21061
26006
26006A
26006B
26006B
26011
26011A
26011B
26012
26021
26031
27002
27003
49016
92037
92072
92072A
92072B
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130L0812 1
BOLT-FLANGED,6X10 130A 130V0610 1
RECTIFIER 21061 21061-0001 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
FUSE,15A 26006B 26006-1075 2
WIRE-LEAD,BATTERY(+) 26011 26011-0006 1
WIRE-LEAD 26011A 26011-0037 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0041 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1326 1
JUNCTION BOX 26021 26021-0001 1
HARNESS,MAIN 26031 26031-0257 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1101 1
HORN 27003 27003-0032 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,L=60 92037 92037-1069 1
BAND,L=202 92072 92072-1195 1
BAND,L=250 92072A 92072-1237 1
BAND 92072B 92072-1414 2
CLAMP,DIA=15 92171 92171-1424 3
CLAMP,DIA=25 92171A 92171-1559 2
