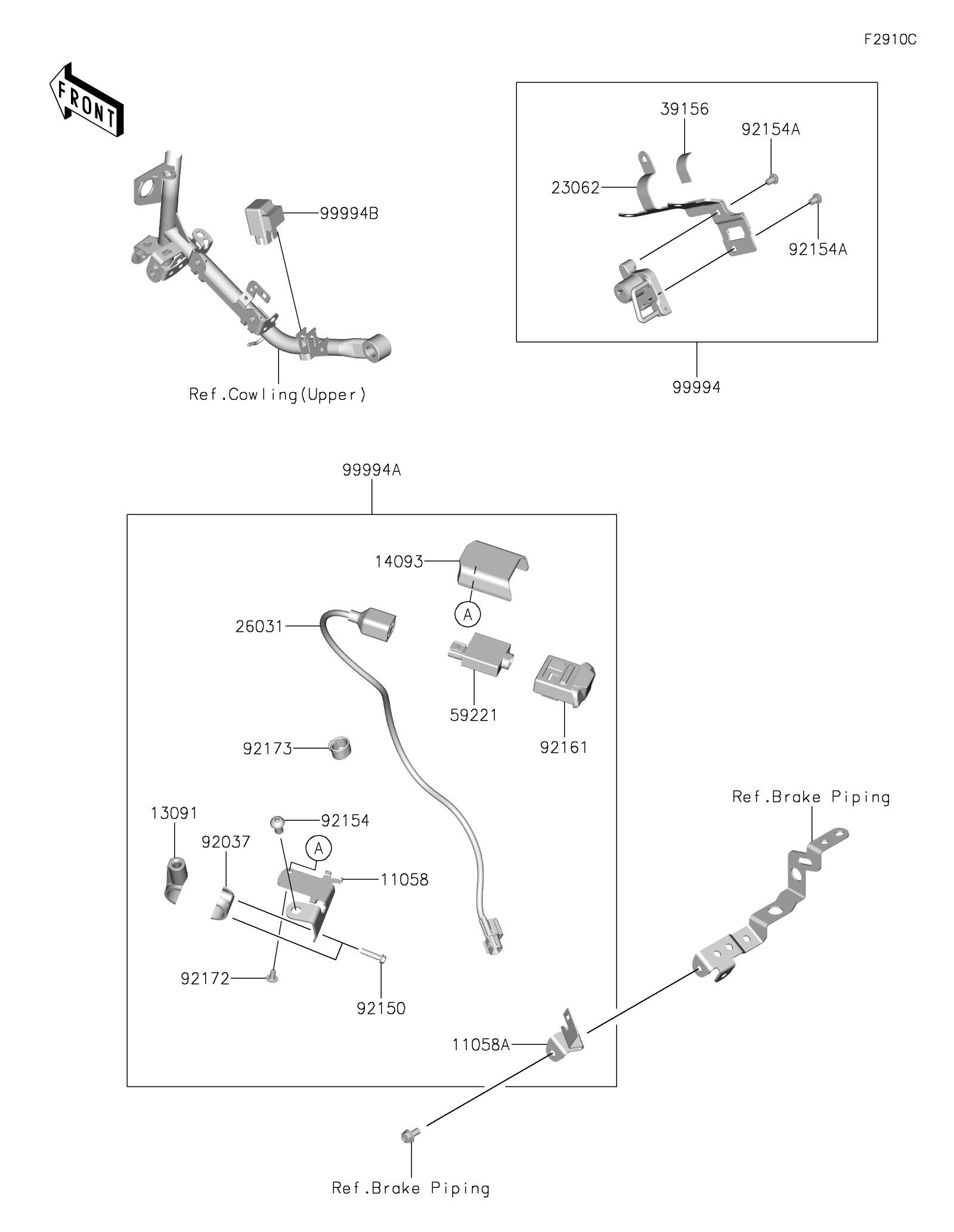

2024 NINJA® e-1 ABS - Accessory(Helmet Lock and USB)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
13091
14093
23062
26031
39156
59221
92037
92150
92154
92154A
92154A
92161
92172
92173
99994
99994A
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-0802 1
BRACKET 11058A 11058-1339 1
HOLDER,MIRROR 13091 13091-1717 1
COVER,USB 14093 14093-1458 1
BRACKET-COMP 23062 23062-1435 1
HARNESS 26031 26031-4037 1
PAD 39156 39156-2891 1
CONNECTOR-CORD,USB TYPE-C 59221 59221-0022 1
CLAMP,LEVER HOLDER 92037 92037-1621 1
BOLT,5X20 92150 92150-1389 2
BOLT,SOCKET,8X14 92154 92154-2651 1
BOLT,ONE SIDE,6X8 92154A 92154-2948 2
DAMPER 92161 92161-2497 1
SCREW,5X10 92172 92172-1194 1
CLAMP 92173 92173-2198 1
HELMET LOCK 99994 99994-1957 1
USB OUTLET TYPE-C 99994A 99994-1958 1
ACC-RELAY 99994B 99994-1985 1
