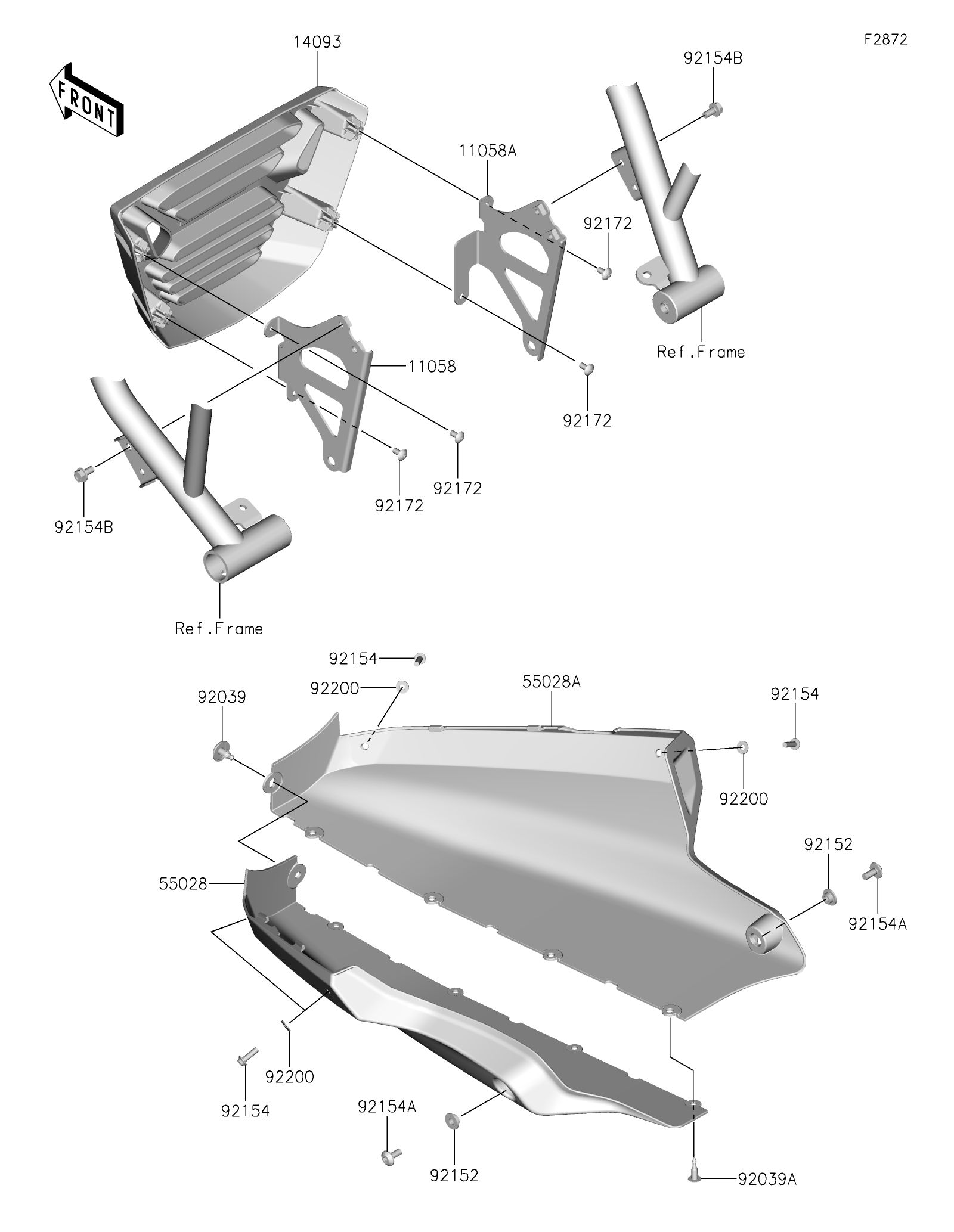

Parts Diagrams |
11058
11058A
14093
55028
55028A
92039
92039A
92152
92152
92154
92154
92154
92154A
92154A
92154B
92154B
92172
92172
92172
92172
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR,LH | 11058 | 11058-0754 | 1 | ||
| BRACKET,LWR,RH | 11058A | 11058-0755 | 1 | ||
| COVER,FR,LWR,CNT | 14093 | 14093-1473 | 1 | ||
| COWLING,LWR,LH | 55028 | 55028-0861 | 1 | ||
| COWLING,LWR,RH | 55028A | 55028-0862 | 1 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0051 | 4 | ||
| COLLAR,6.5X16X5.6 | 92152 | 92152-1838 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 4 | ||
| BOLT,SOCKET,6X14 | 92154A | 92154-0932 | 2 | ||
| BOLT,FLANGED,6X12 | 92154B | 92154-1050 | 4 | ||
| SCREW,5X10 | 92172 | 92172-0864 | 4 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 4 |
| BRACKET,LWR,LH | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR,RH | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR,LWR,CNT | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X16X5.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X12X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
