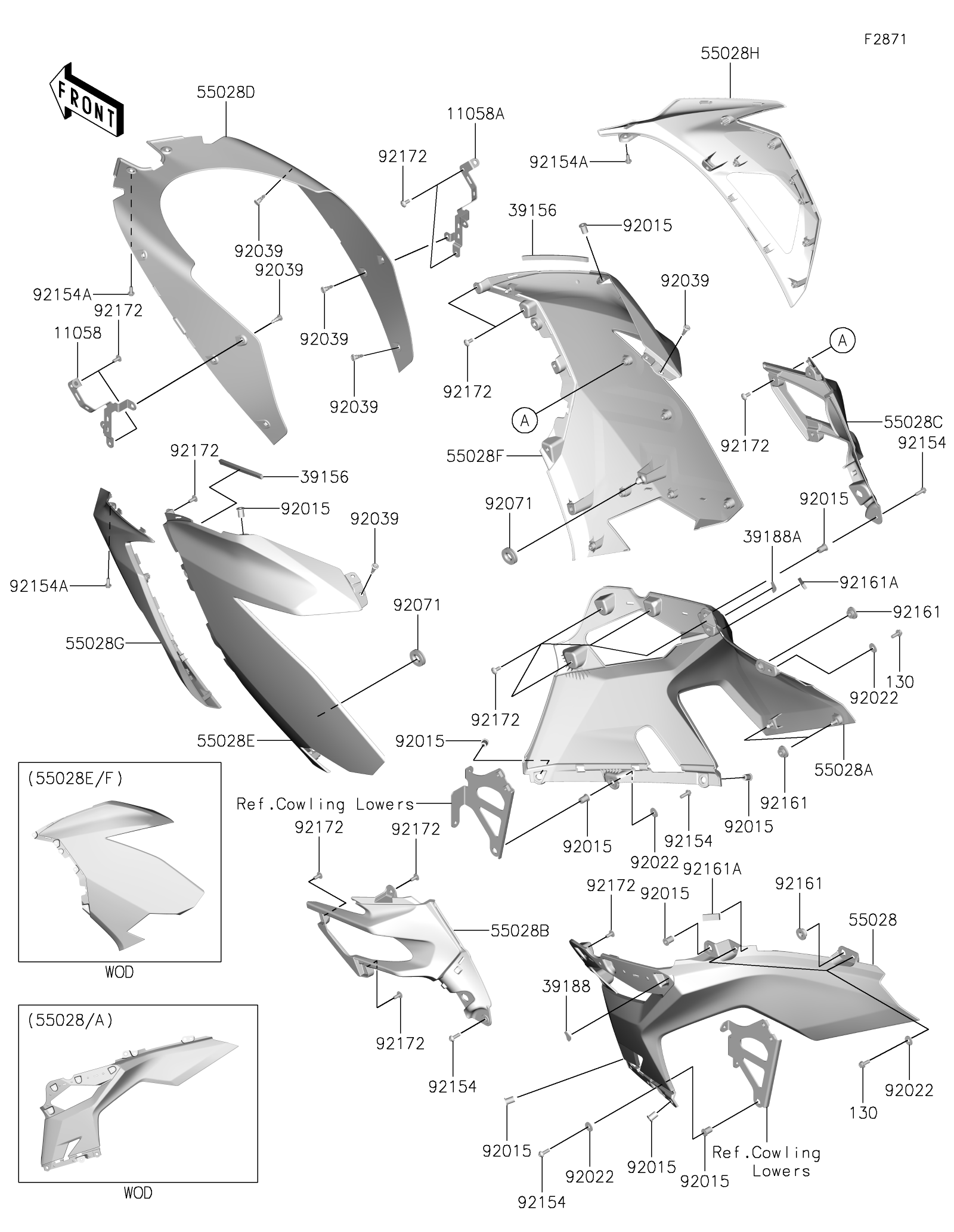

2024 NINJA® e-1 ABS - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
39156
39156
39188
39188A
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55028H
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92039
92039
92039
92039
92039
92039
92071
92071
92154
92154
92154
92154
92154A
92154A
92154A
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR,LH 11058 11058-1354 1
BRACKET,FR,RH 11058A 11058-1355 1
PAD,7X130X5 39156 39156-2296 2
TAPE,LWR SIDE COWL.,LH 39188 39188-0573 1
TAPE,LWR SIDE COWL.,RH 39188A 39188-0574 1
COWLING,SIDE,LWR,LH,EBONY 55028 55028-0641-H8 1
COWLING,SIDE,LWR,RH,EBONY 55028A 55028-0642-H8 1
COWLING,FIN,LH,M.M.R.GREEN 55028B 55028-0643-63R 1
COWLING,FIN,RH,M.M.R.GREEN 55028C 55028-0644-63R 1
COWLING,INNER 55028D 55028-0647 1
COWLING,SIDE,UPP,LH,M.B.SILVER 55028E 55028-0686-63S 1
COWLING,SIDE,UPP,RH,M.B.SILVER 55028F 55028-0687-63S 1
COWLING,SIDE,FR,LH 55028G 55028-0865 1
COWLING,SIDE,FR,RH 55028H 55028-0866 1
NUT,WELL,5MM 92015 92015-1757 10
WASHER,5.2X16X1.2 92022 92022-263 6
RIVET 92039 92039-0060 10
GROMMET 92071 92071-1043 2
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,5X12 92154A 92154-1421 4
DAMPER 92161 92161-1531 6
DAMPER,10X28X5 92161A 92161-2107 2
SCREW,5X12 92172 92172-0821 22
BOLT-FLANGED,5X14 130 130BA0514 4
