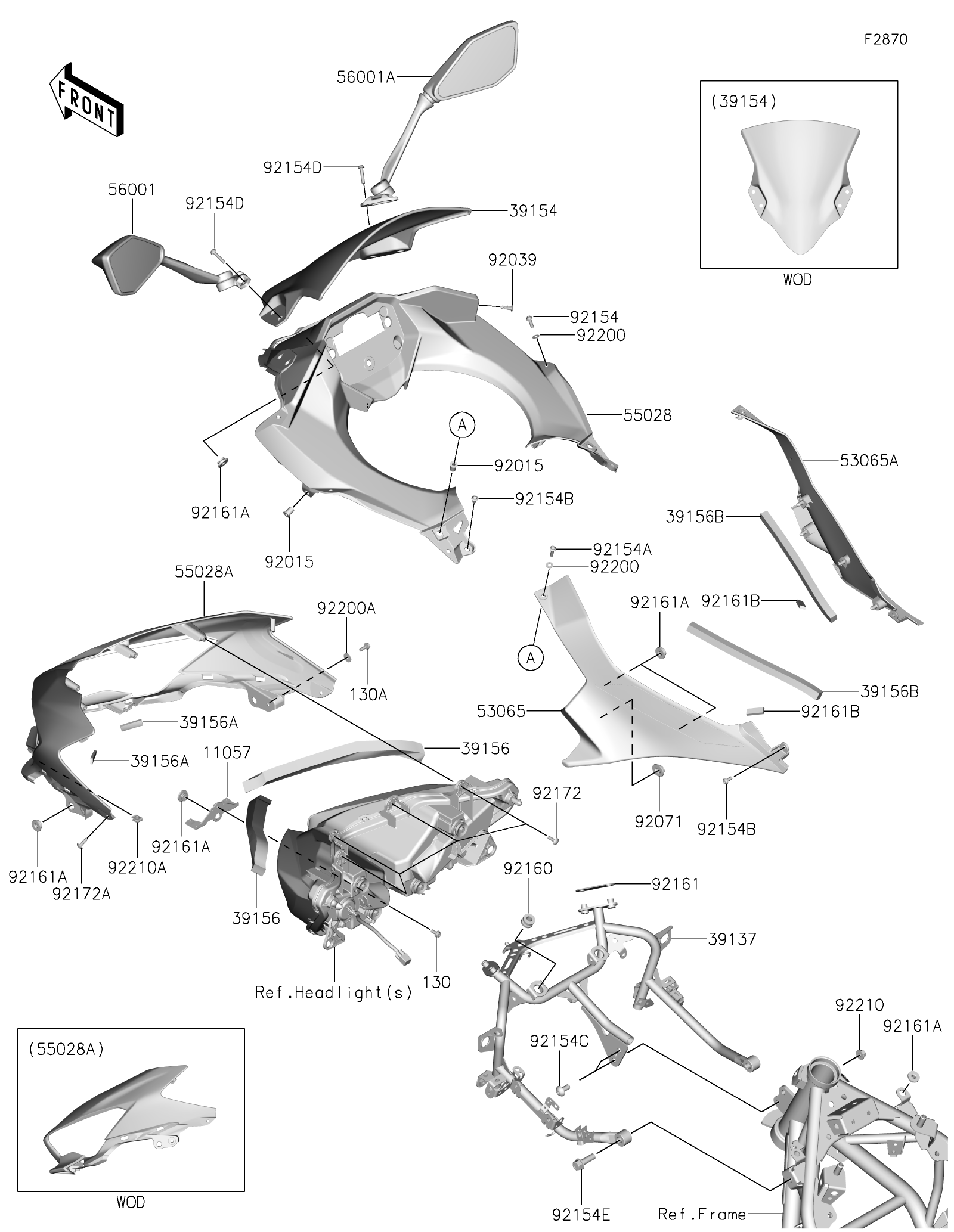

2024 NINJA® e-1 ABS - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11057
39137
39154
39156
39156
39156A
39156A
39156B
39156B
53065
53065A
55028
55028A
56001
56001A
92015
92015
92039
92071
92154
92154A
92154B
92154B
92154C
92154D
92154D
92154E
92160
92161
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92172
92172A
92200
92200
92200A
92210
92210A
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,LWR 11057 11057-1199 1
STAY-COMP,UPP COWLING 39137 39137-0761 1
WINDSHIELD 39154 39154-0426 1
PAD,20X290X20 39156 39156-2357 2
PAD,10X35X4 39156A 39156-2380 2
PAD,240X13X12 39156B 39156-2889 2
COVER SEAT,LH 53065 53065-0042 1
COVER SEAT,RH 53065A 53065-0043 1
COWLING,METER PANEL 55028 55028-0860 1
COWLING,UPP,M.B.SILVER 55028A 55028-0893-63S 1
MIRROR-ASSY,LH 56001 56001-0378 1
MIRROR-ASSY,RH 56001A 56001-0379 1
NUT,WELL,5MM 92015 92015-1757 4
RIVET 92039 92039-0060 2
GROMMET,20X24X7.5 92071 92071-0766 2
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,5X20 92154A 92154-0210 2
BOLT,SOCKET,5X12 92154B 92154-1421 4
BOLT,SOCKET,8X18 92154C 92154-2656 2
BOLT,SOCKET,6X25 92154D 92154-2806 4
BOLT,FLANGED,10X30 92154E 92154-4393 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92161 92161-1467 2
DAMPER 92161A 92161-1531 10
DAMPER,10X28X5 92161B 92161-2107 2
SCREW,TAPPING,5X16 92172 92172-0427 4
SCREW,TRUSS HEAD,5X16 92172A 92172-1222 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
WASHER,5.2X16X1.2 92200A 92200-0583 2
NUT,FLANGED,8MM 92210 92210-0304 2
NUT 92210A 92210-0571 2
BOLT-FLANGED,5X12 130 130BA0512 1
BOLT-FLANGED,5X14 130A 130BA0514 2
