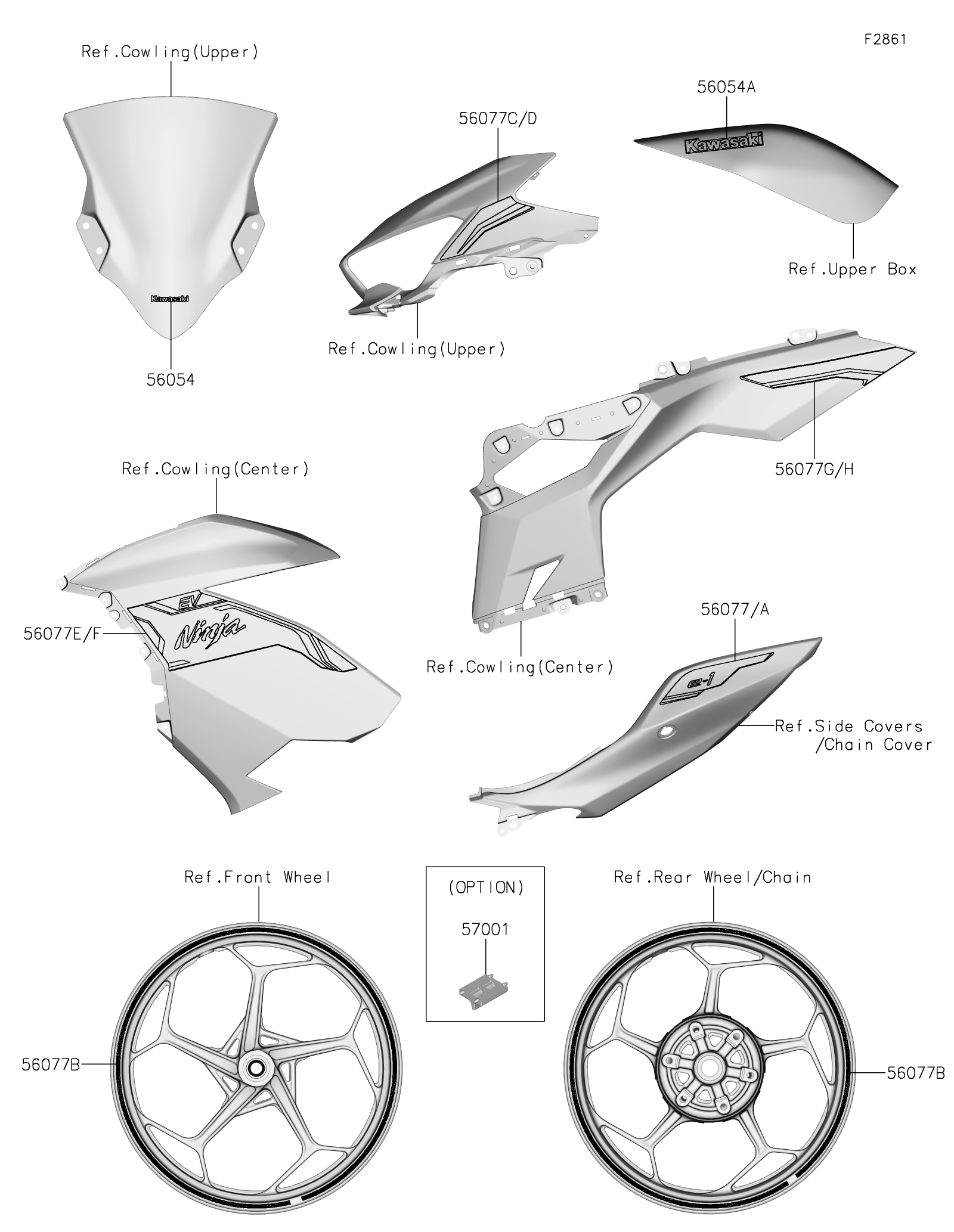

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-2261 | 1 | ||
| MARK,STORAGE COVER,KAWASAKI | 56054A | 56054-4025 | 2 | ||
| PATTERN,TAIL COVER,LH | 56077 | 56077-0653 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077A | 56077-0654 | 1 | ||
| PATTERN,WHEEL,GRN/BLK,6X1353 | 56077B | 56077-0655 | 4 | ||
| PATTERN,UPP COWL.,LH | 56077C | 56077-0656 | 1 | ||
| PATTERN,UPP COWL.,RH | 56077D | 56077-0657 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56077E | 56077-0658 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56077F | 56077-0659 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56077G | 56077-0660 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56077H | 56077-0661 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
