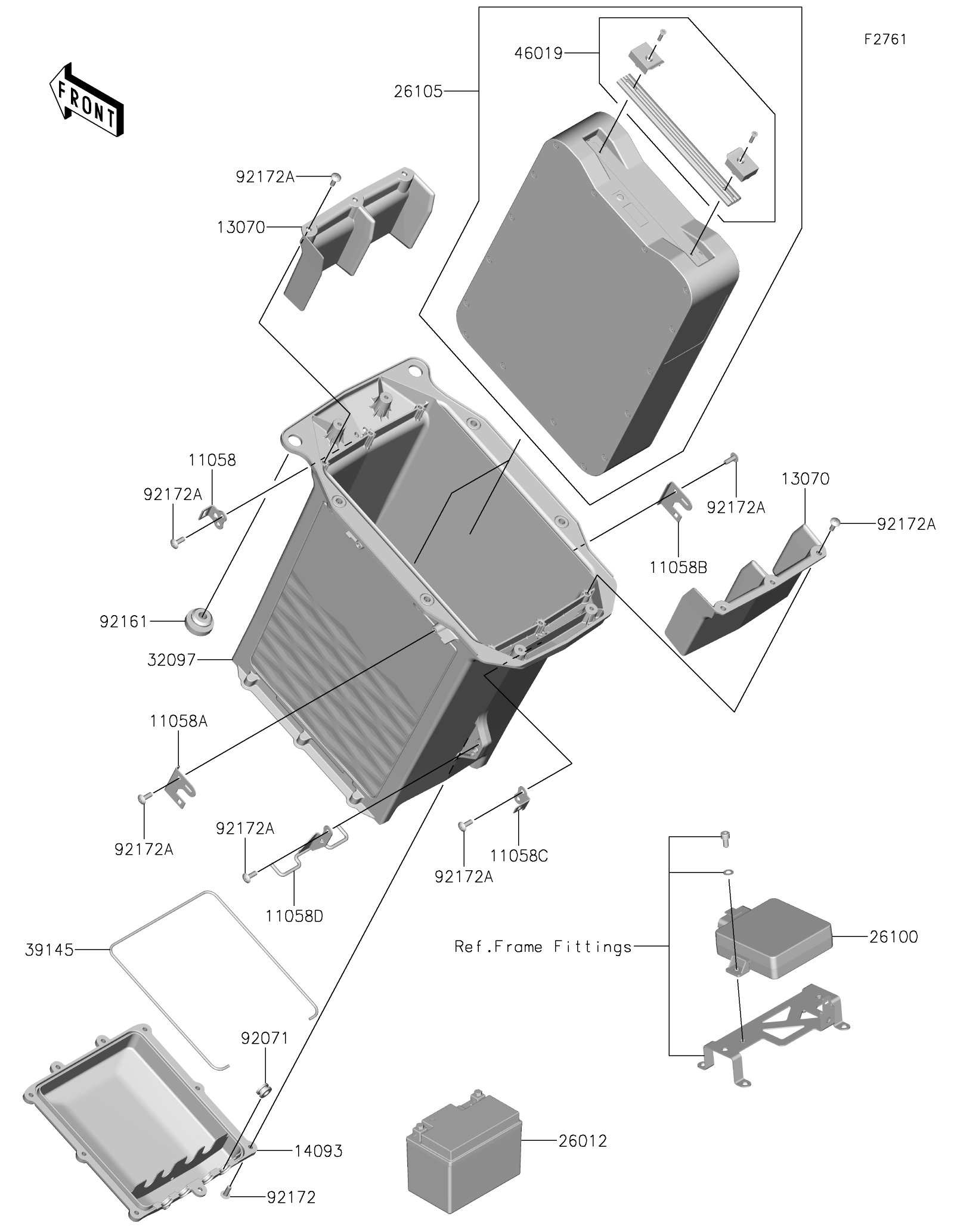

Parts Diagrams |
11058
11058A
11058B
11058C
11058D
13070
13070
14093
26012
26100
26105
32097
39145
46019
92071
92161
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-0771 | 1 | ||
| BRACKET | 11058A | 11058-0838 | 1 | ||
| BRACKET | 11058B | 11058-0839 | 1 | ||
| BRACKET | 11058C | 11058-0910 | 1 | ||
| BRACKET | 11058D | 11058-0963 | 1 | ||
| GUIDE,BATTERY CASE | 13070 | 13070-1437 | 2 | ||
| COVER,BATTERY CASE | 14093 | 14093-1483 | 1 | ||
| BATTERY,FTZ3,12V 2.5AH | 26012 | 26012-1457 | 1 | ||
| MANAGEMENT-SYSTEM-BATTERY | 26100 | 26100-0001 | 1 | ||
| PACK-ASSY-BATTERY | 26105 | 26105-0009 | 2 | ||
| CASE-BATTERY | 32097 | 32097-0570 | 1 | ||
| TRIM-SEAL,BATTERY CASE | 39145 | 39145-0764 | 1 | ||
| GRIP-ASSY,BATTERY | 46019 | 46019-0131 | 4 | ||
| GROMMET | 92071 | 92071-1128 | 4 | ||
| DAMPER,10X32X17 | 92161 | 92161-1980 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 9 | ||
| SCREW,TAPPING,5X14 | 92172A | 92172-0265 | 14 |
| BRACKET | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,BATTERY CASE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,BATTERY CASE | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,FTZ3,12V 2.5AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANAGEMENT-SYSTEM-BATTERY | |
| REF # | 26100 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACK-ASSY-BATTERY | |
| REF # | 26105 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 32097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,BATTERY CASE | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,BATTERY | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X32X17 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
