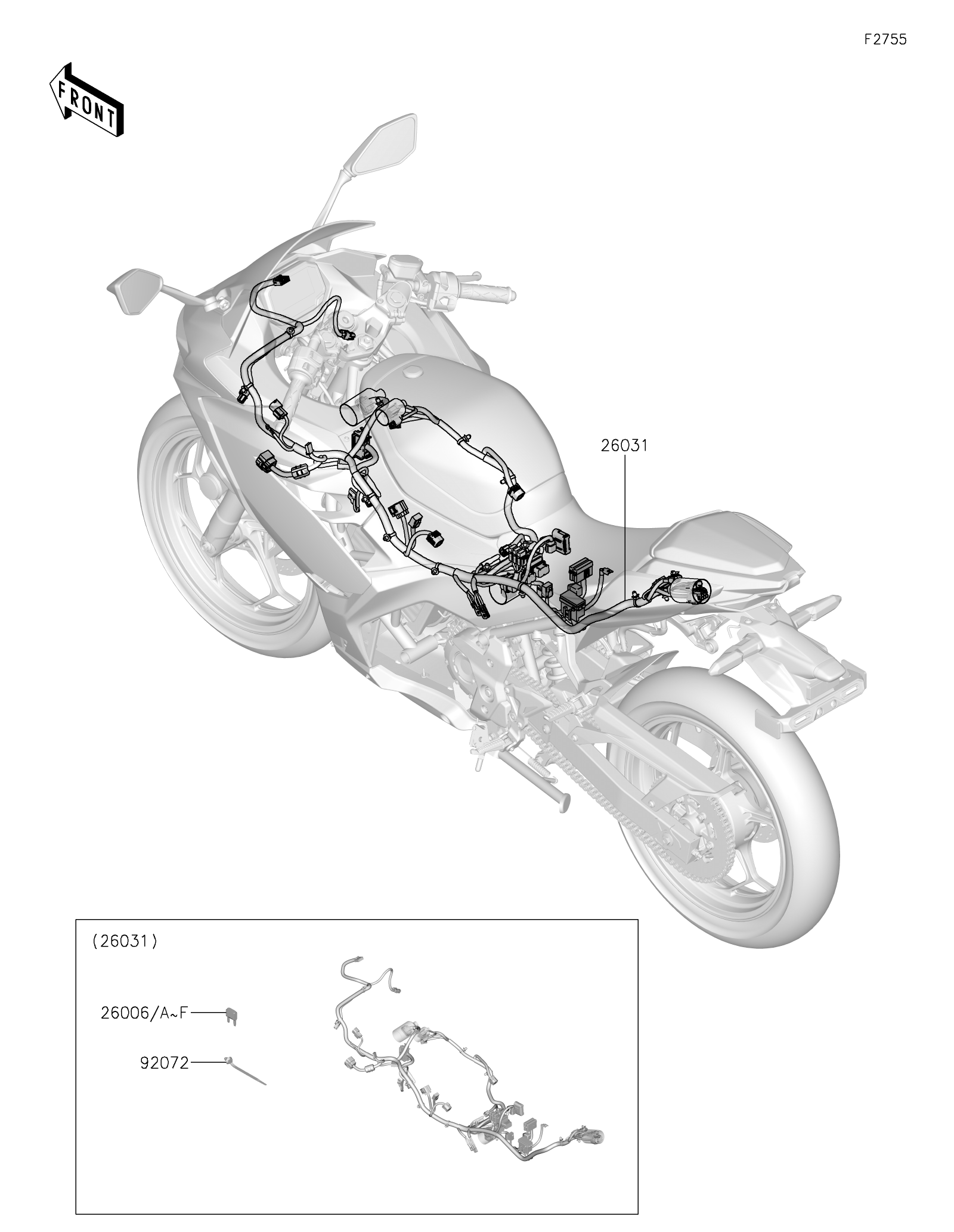

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 2 | ||
| FUSE,MINI BLADE,5A(58V),TAN | 26006A | 26006-0058 | 1 | ||
| FUSE,MINI BLADE,10A(58V),RED | 26006B | 26006-0059 | 1 | ||
| FUSE,MINI BLADE,15A(58V),BLUE | 26006C | 26006-0060 | 1 | ||
| FUSE,MINI BLADE,10A,RED | 26006D | 26006-1078 | 7 | ||
| FUSE,MINI BLADE,20A,YELLOW | 26006E | 26006-1079 | 2 | ||
| FUSE,MINI BLADE,30A,GREEN | 26006F | 26006-1080 | 3 | ||
| HARNESS,MAIN | 26031 | 26031-4210 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | AR |
| FUSE,MINI BLADE,15A,BLUE | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,5A(58V),TAN | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,10A(58V),RED | |
| REF # | 26006B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,15A(58V),BLUE | |
| REF # | 26006C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,10A,RED | |
| REF # | 26006D |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,20A,YELLOW | |
| REF # | 26006E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,MINI BLADE,30A,GREEN | |
| REF # | 26006F |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
