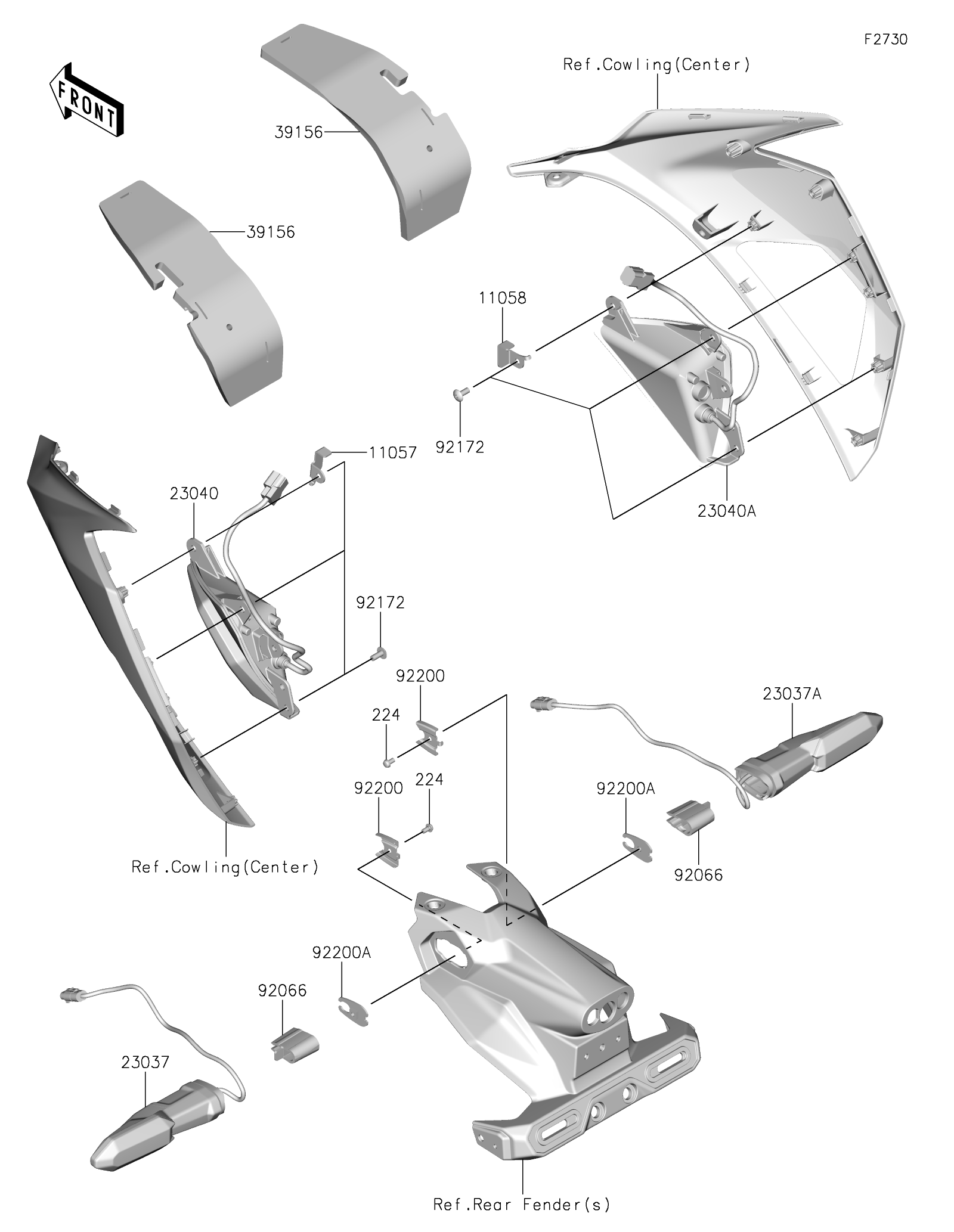

2024 NINJA® e-1 ABS - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
23037
23037A
23040
23040A
39156
39156
92066
92066
92172
92172
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1614 1
BRACKET 11058 11058-1367 1
LAMP-ASSY-SIGNAL,LED,RR,LH 23037 23037-0569 1
LAMP-ASSY-SIGNAL,LED,RR,RH 23037A 23037-0570 1
LAMP-SIGNAL,LED,FR,LH 23040 23040-0159 1
LAMP-SIGNAL,LED,FR,RH 23040A 23040-0160 1
PAD,87X236X10 39156 39156-2910 2
PLUG,SIGNAL LAMP 92066 92066-0919 2
SCREW,5X12 92172 92172-0821 6
WASHER 92200 92200-0855 2
WASHER 92200A 92200-2268 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
