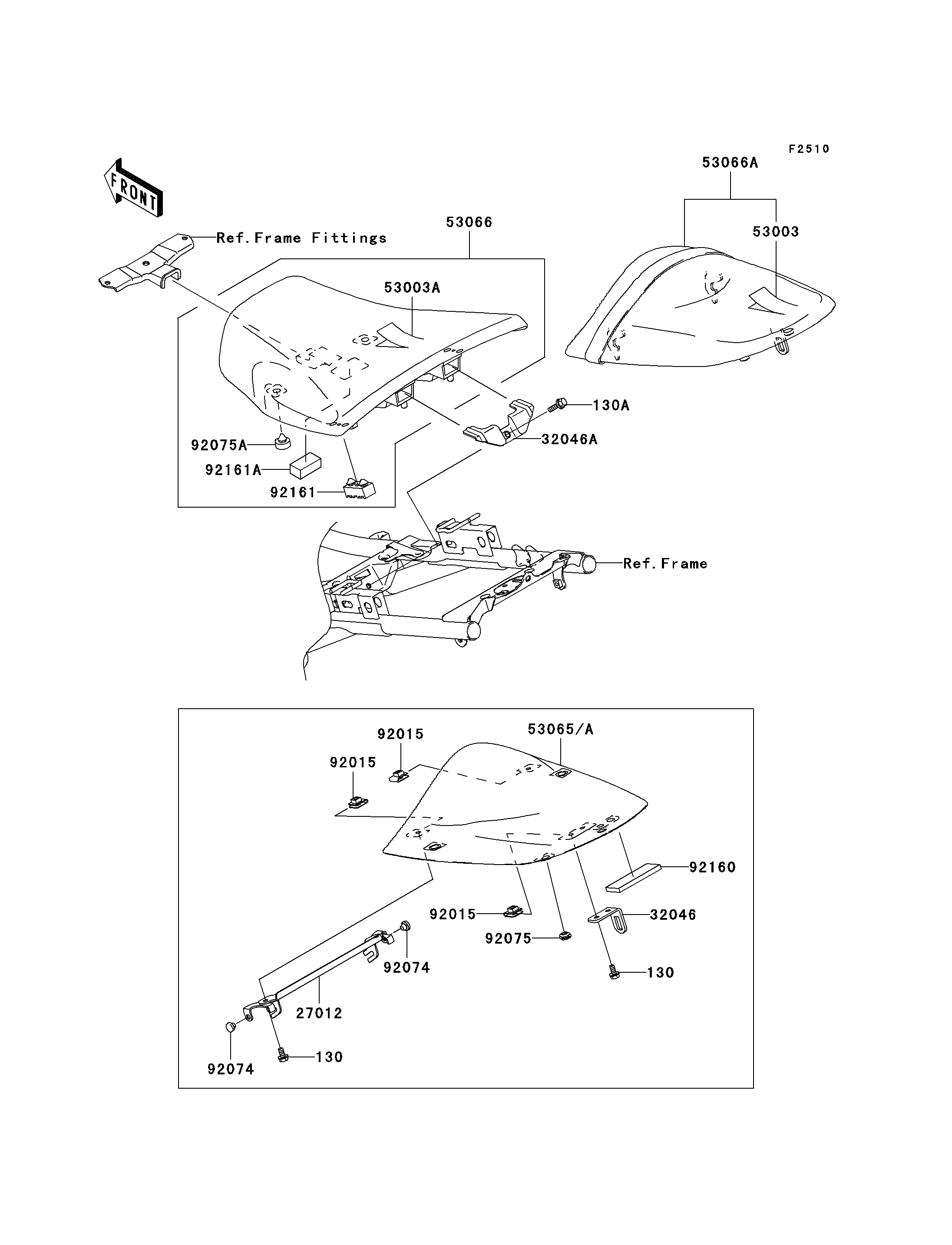

2006 Z1000 - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
27012
32046
32046A
53003
53003A
53065
53066
53066A
92015
92015
92015
92074
92074
92075
92075A
92160
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 4
BOLT-FLANGED,6X20 130A 130J0620 1
HOOK,SEAT COVER 27012 27012-0013 1
BRACKET-SEAT 32046 32046-1468 1
BRACKET-SEAT,FRONT SEAT,RR 32046A 32046-1530 1
LEATHER,REAR SEAT,BLACK 53003 53003-1530-MA 1
LEATHER,FRONT SEAT,BLACK 53003A 53003-1533-MA 1
COVER SEAT,BLUE 53065 53065-1054-10E 1
SEAT-ASSY,FR,BLACK 53066 53066-0042-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53066A 53066-1074-MA 1
NUT,CLAMP,6MM 92015 92015-1531 4
PLUG,7X2 92074 92074-028 2
DAMPER 92075 92075-1011 4
DAMPER 92075A 92075-1927 2
DAMPER 92160 92160-1323 1
DAMPER,SEAT 92161 92161-0050 2
DAMPER,SEAT 92161A 92161-1321 1
COVER SEAT,TITANIUM 53065A 53065-1054-725 1 CN
