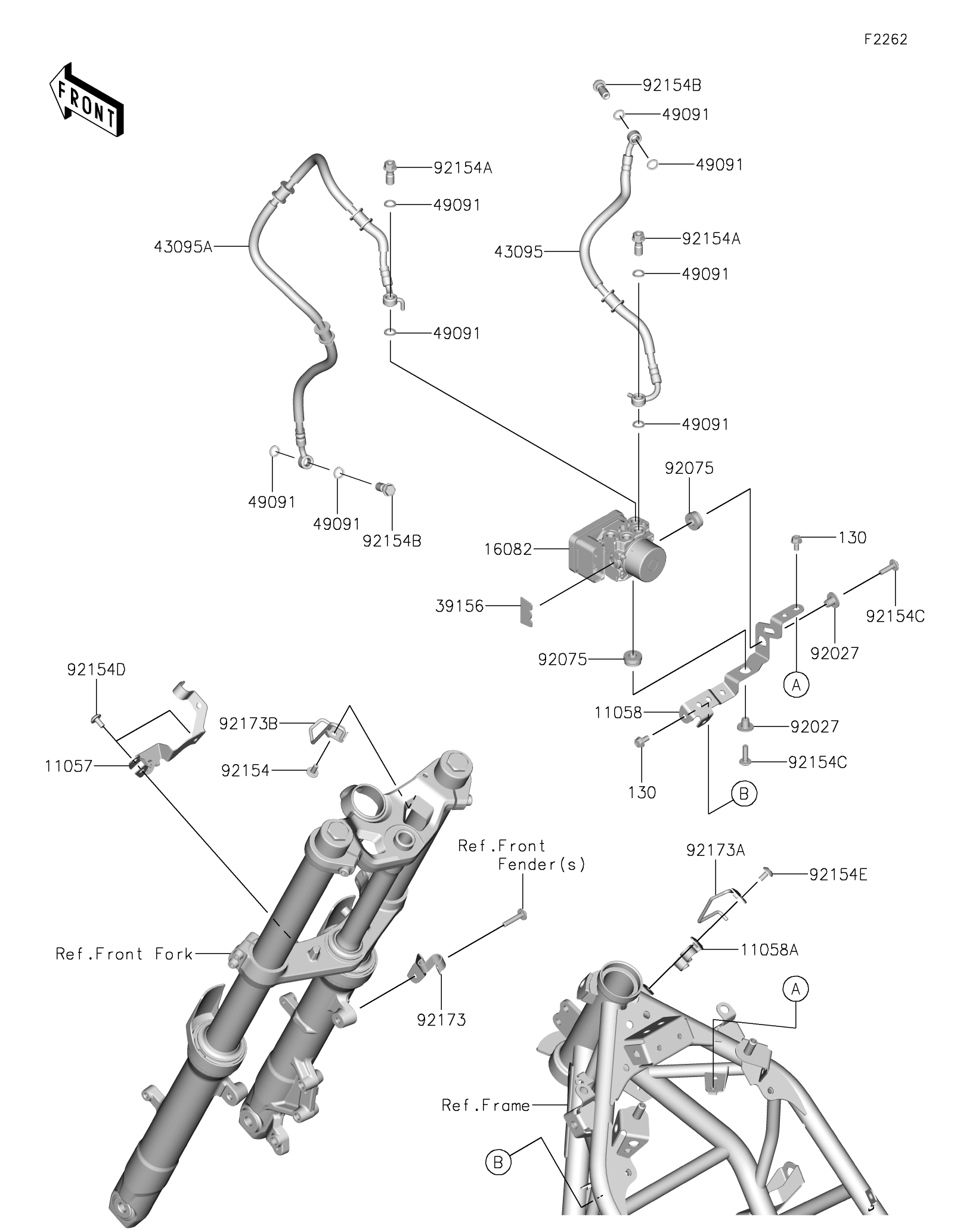

2024 NINJA® e-1 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
16082
39156
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
92027
92027
92075
92075
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154E
92173
92173A
92173B
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HORN 11057 11057-7535 1
BRACKET 11058 11058-0778 1
BRACKET 11058A 11058-0860 1
PUMP-ASSY-OIL,ABS,WET TYPE 16082 16082-0903 1
PAD 39156 39156-2885 1
HOSE-BRAKE,HU-FR M/CYLINDER 43095 43095-1851 1
HOSE-BRAKE,HU-FR CALIPER 43095A 43095-1914 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
DAMPER 92075 92075-277 2
BOLT,SOCKET,6X14 92154 92154-0907 1
BOLT,BANJO,10X22 92154A 92154-1138 2
BOLT,BANJO,10X23 92154B 92154-1712 2
BOLT,SOCKET,6X22 92154C 92154-2302 2
BOLT,SOCKET,6X12 92154D 92154-2355 2
BOLT,SOCKET,6X12 92154E 92154-4310 1
CLAMP,HOSE&SENSOR 92173 92173-1774 1
CLAMP 92173A 92173-2726 1
CLAMP 92173B 92173-2774 1
BOLT-FLANGED,6X12 130 130BB0612 2
