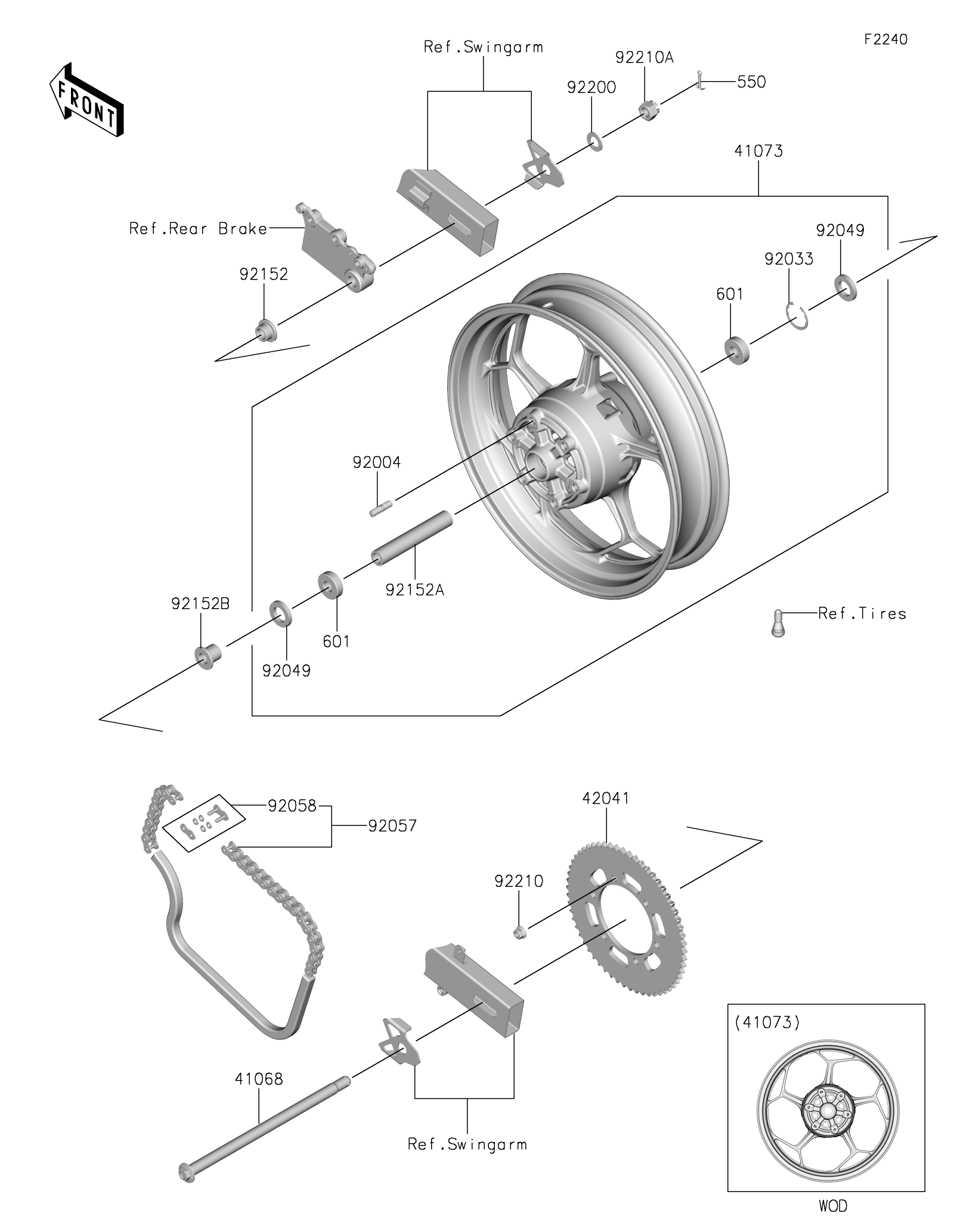

2024 NINJA® e-1 ABS - Rear Wheel/Chain
41068
41073
42041
92004
92033
92049
92049
92057
92058
92152
92152A
92152B
92200
92210
92210A
550
601
601
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,RR | 41068 | 41068-0644 | 1 | ||
| WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0825-QT | 1 | ||
| SPROCKET-HUB,58T | 42041 | 42041-0195 | 1 | ||
| STUD,10X19 | 92004 | 92004-0048 | 6 | ||
| RING-SNAP,40MM | 92033 | 92033-1040 | 1 | ||
| SEAL-OIL | 92049 | 92049-0794 | 2 | ||
| CHAIN,DRIVE,RK428KLOX136L | 92057 | 92057-0885 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-0085 | 1 | ||
| COLLAR,17X24X16 | 92152 | 92152-1760 | 1 | ||
| COLLAR,17.1X24X141 | 92152A | 92152-2317 | 1 | ||
| COLLAR | 92152B | 92152-2977 | 1 | ||
| WASHER,17.3X30X2 | 92200 | 92200-1916 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 6 | ||
| NUT,CASTLE,16X19 | 92210A | 92210-1585 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550AA4035 | 1 | ||
| BEARING-BALL,#6203UUC3 | 601 | 601B6203UU | 2 |
