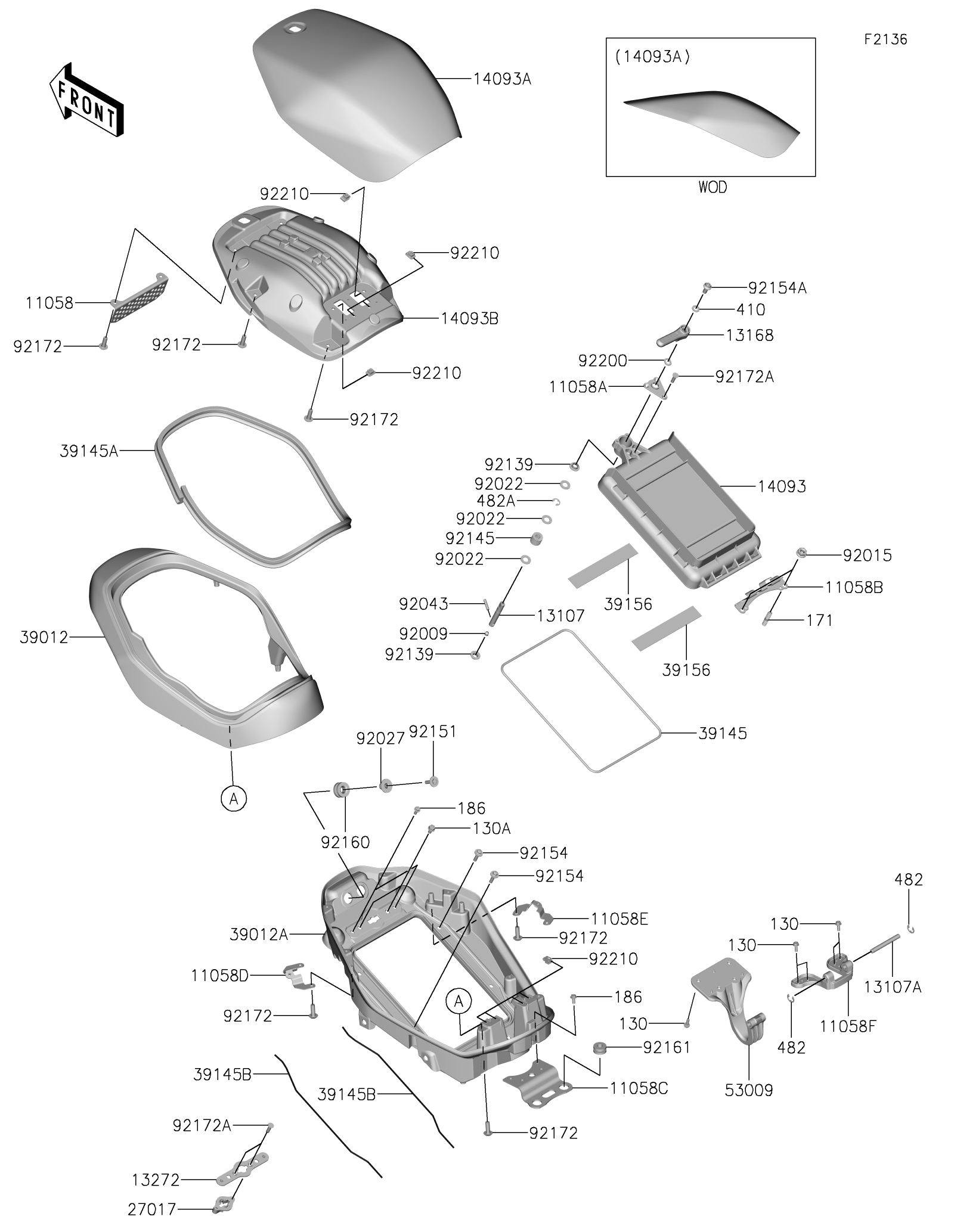

2024 NINJA® e-1 ABS - Upper Box

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
11058D
11058D
11058E
11058E
11058F
11058F
13107
13107
13107A
13107A
13168
13168
13272
13272
14093
14093
14093A
14093A
14093B
14093B
27017
27017
39012
39012
39012A
39012A
39145
39145
39145A
39145A
39145B
39145B
39145B
39145B
39156
39156
39156
39156
53009
53009
92009
92009
92015
92015
92022
92022
92022
92022
92022
92022
92027
92027
92043
92043
92139
92139
92139
92139
92145
92145
92151
92151
92154
92154
92154
92154
92154A
92154A
92160
92160
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130
130
130
130
130A
130A
171
171
186
186
186
186
410
410
482
482
482
482
482A
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STORAGE COVER 11058 11058-0757 1
BRACKET,BATTERY LOCK SHAFT 11058A 11058-0781 1
BRACKET,BATTERY LOCK 11058B 11058-0782 1
BRACKET,STORAGE BASE,RR 11058C 11058-0784 1
BRACKET,STORAGE BASE,LH 11058D 11058-0785 1
BRACKET,STORAGE BASE,RH 11058E 11058-0786 1
BRACKET,HINGE 11058F 11058-0787 1
SHAFT,BATTERY LOCK 13107 13107-0987 1
SHAFT,HINGE 13107A 13107-0988 1
LEVER,BATTERY LOCK 13168 13168-0942 1
PLATE,BATTERY LOCK 13272 13272-4261 1
COVER,BATTERY 14093 14093-1487 1
COVER,STORAGE,OUTER,M.B.SILVER 14093A 14093-1488-63S 1
COVER,STORAGE,INNER 14093B 14093-1489 1
LOCK,BATTERY 27017 27017-0578 1
CASE-STORAGE,UPP,EBONY 39012 39012-0077-H8 1
CASE-STORAGE,LWR,EBONY 39012A 39012-0078-H8 1
TRIM-SEAL,CASE-STORAGE,LWR,UPP 39145 39145-0765 1
TRIM-SEAL,STORAGE COVER 39145A 39145-0767 1
TRIM-SEAL,CASE-STORAGE,LWR,LWR 39145B 39145-0769 2
PAD,160X26X1 39156 39156-2853 2
HINGE,STORAGE COVER 53009 53009-0323 1
SCREW,NUT LOCK 92009 92009-1883 1
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,10.5X20X1 92022 92022-239 3
COLLAR 92027 92027-1929 2
PIN 92043 92043-1790 1
BUSHING 92139 92139-0230 2
SPRING 92145 92145-2297 1
BOLT,6X25 92151 92151-1241 2
BOLT,6X25 92154 92154-0467 4
BOLT,SOCKET,5X12 92154A 92154-1421 1
DAMPER 92160 92160-1007 2
DAMPER,10X24X12 92161 92161-0927 2
SCREW,TAPPING,5X16 92172 92172-0175 18
SCREW,4X14 92172A 92172-1489 5
WASHER,LOCK 92200 92200-2587 1
NUT,PLATE,5MM 92210 92210-0935 8
BOLT-FLANGED,5X14 130 130BA0514 8
BOLT-FLANGED,6X12 130A 130BB0612 2
BOLT-STUD,6X14 171 171BA0614 2
BOLT-UPSET-WP,5X14 186 186BB0514 6
WASHER-PLAIN-SMALL 410 410AA0500 1
CIRCLIP-TYPE-E,6MM 482 482EA6000 2
CIRCLIP-TYPE-E,8MM 482A 482EA8000 1
