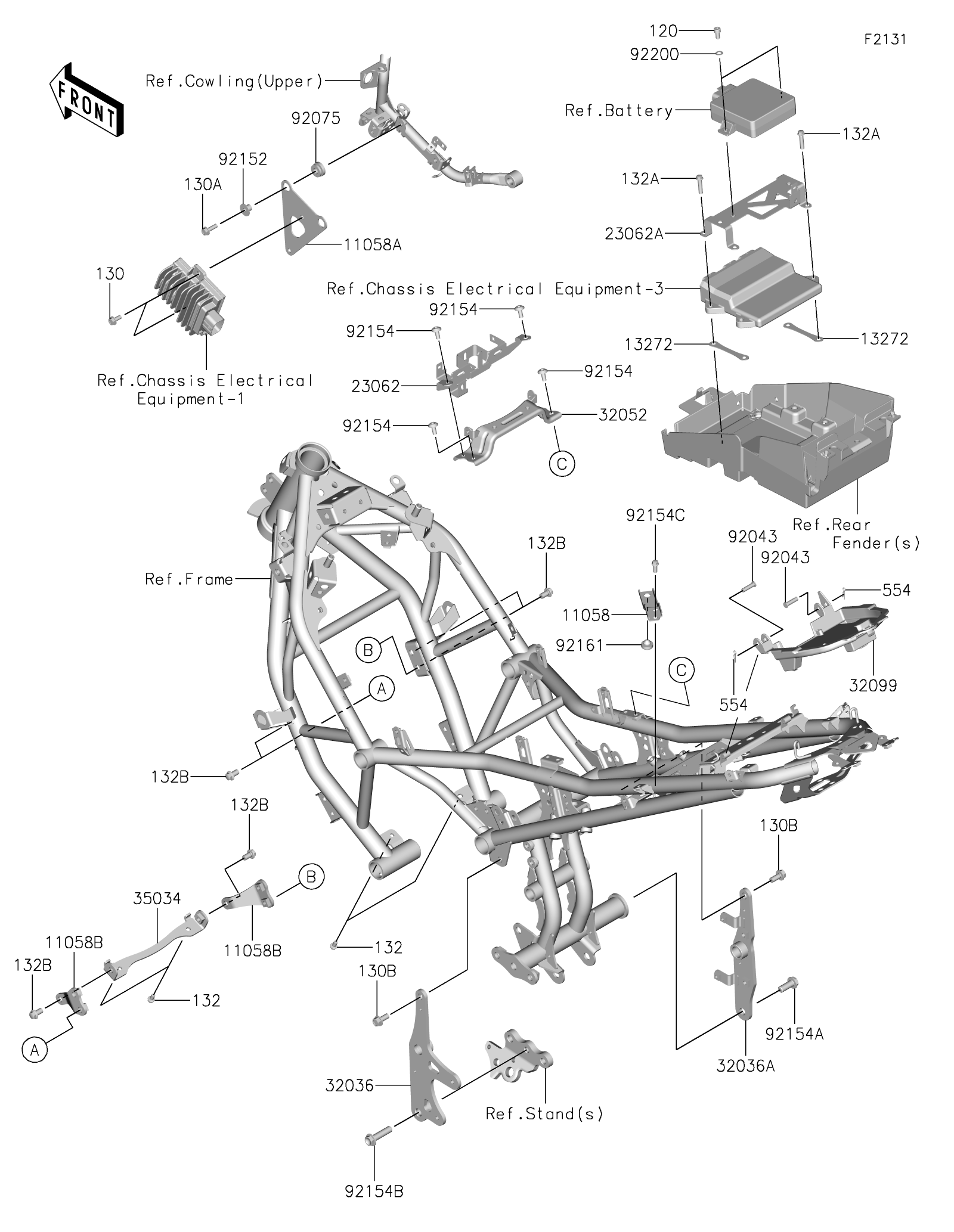

2024 NINJA® e-1 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058B
13272
13272
23062
23062A
32036
32036A
32052
32099
35034
92043
92043
92075
92152
92154
92154
92154
92154
92154A
92154B
92154C
92161
92200
120
130
130A
130B
130B
132
132
132A
132A
132B
132B
132B
132B
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-0752 1
BRACKET,CONVERTER 11058A 11058-0753 1
BRACKET 11058B 11058-0820 2
PLATE 13272 13272-4295 2
BRACKET-COMP,VDS 23062 23062-1431 1
BRACKET-COMP,BMU 23062A 23062-1432 1
BRACKET-SWINGARM,LH 32036 32036-0417 1
BRACKET-SWINGARM,RH 32036A 32036-0418 1
BRACKET-TANK 32052 32052-0809 1
CASE,SEAT UNDER 32099 32099-0787 1
REINFORCE 35034 35034-0615 1
PIN,6X23 92043 92043-0746 2
DAMPER 92075 92075-277 2
COLLAR 92152 92152-2855 2
BOLT,SOCKET,6X14 92154 92154-0932 4
BOLT,FLANGED,10X25 92154A 92154-2251 1
BOLT,FLANGED,10X40 92154B 92154-2812 1
BOLT,6X14 92154C 92154-4129 1
DAMPER,9.5X18X6 92161 92161-1473 1
WASHER,6.5X11.5X0.8 92200 92200-0947 2
BOLT-SOCKET,6X12 120 120CA0612 2
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X20 130A 130BA0620 2
BOLT-FLANGED,8X18 130B 130CA0818 2
BOLT-FLANGED-SMALL,6X10 132 132BA0610 4
BOLT-FLANGED-SMALL,6X25 132A 132BA0625 4
BOLT-FLANGED-SMALL,8X14 132B 132BA0814 6
PIN-SNAP,1.2X21.2 554 554DA0600 2
