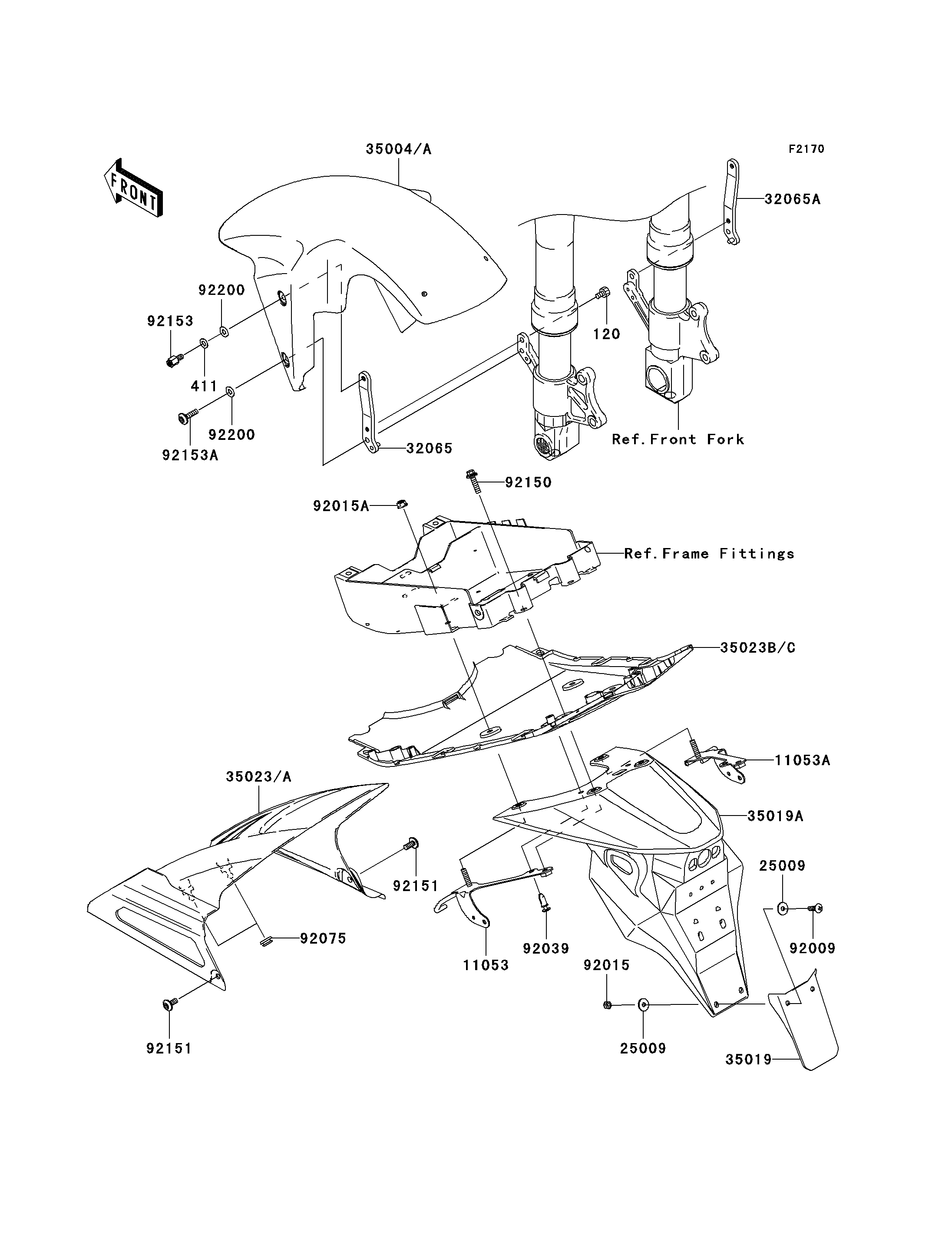

2006 Z1000 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
411
11053
11053A
25009
25009
32065
32065A
35004
35019
35019A
35023
35023B
92009
92015
92015A
92039
92075
92150
92151
92151
92153
92153A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120S0610 2
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
BRACKET,FLAP,LH 11053 11053-0060 1
BRACKET,FLAP,RH 11053A 11053-0061 1
WASHER,5.2X16X1.2 25009 25009-004 4
BRACKET-FENDER,LH 32065 32065-1376 1
BRACKET-FENDER,RH 32065A 32065-1377 1
FENDER-FRONT,BLUE 35004 35004-0024-10E 1
FLAP 35019 35019-0006 1
FLAP,REAR FENDER 35019A 35019-0007 1
FENDER-REAR,INNER,BLUE 35023 35023-1597-10E 1
FENDER-REAR,CNT,BLUE 35023B 35023-1602-10E 1
SCREW,5X14 92009 92009-1653 2
NUT,LOCK,5MM 92015 92015-1221 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 2
RIVET 92039 92039-1286 2
DAMPER 92075 92075-1011 2
BOLT,6X25 92150 92150-1829 2
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,6MM 92153 92153-0335 2
BOLT,SOCKET,6X23 92153A 92153-1267 2
WASHER,6.5X14X1 92200 92200-1388 4
FENDER-FRONT,TITANIUM 35004A 35004-0024-725 1 CN
FENDER-REAR,INNER,TITANIUM 35023A 35023-1597-725 1 CN
FENDER-REAR,CNT,TITANIUM 35023C 35023-1602-725 1 CN
