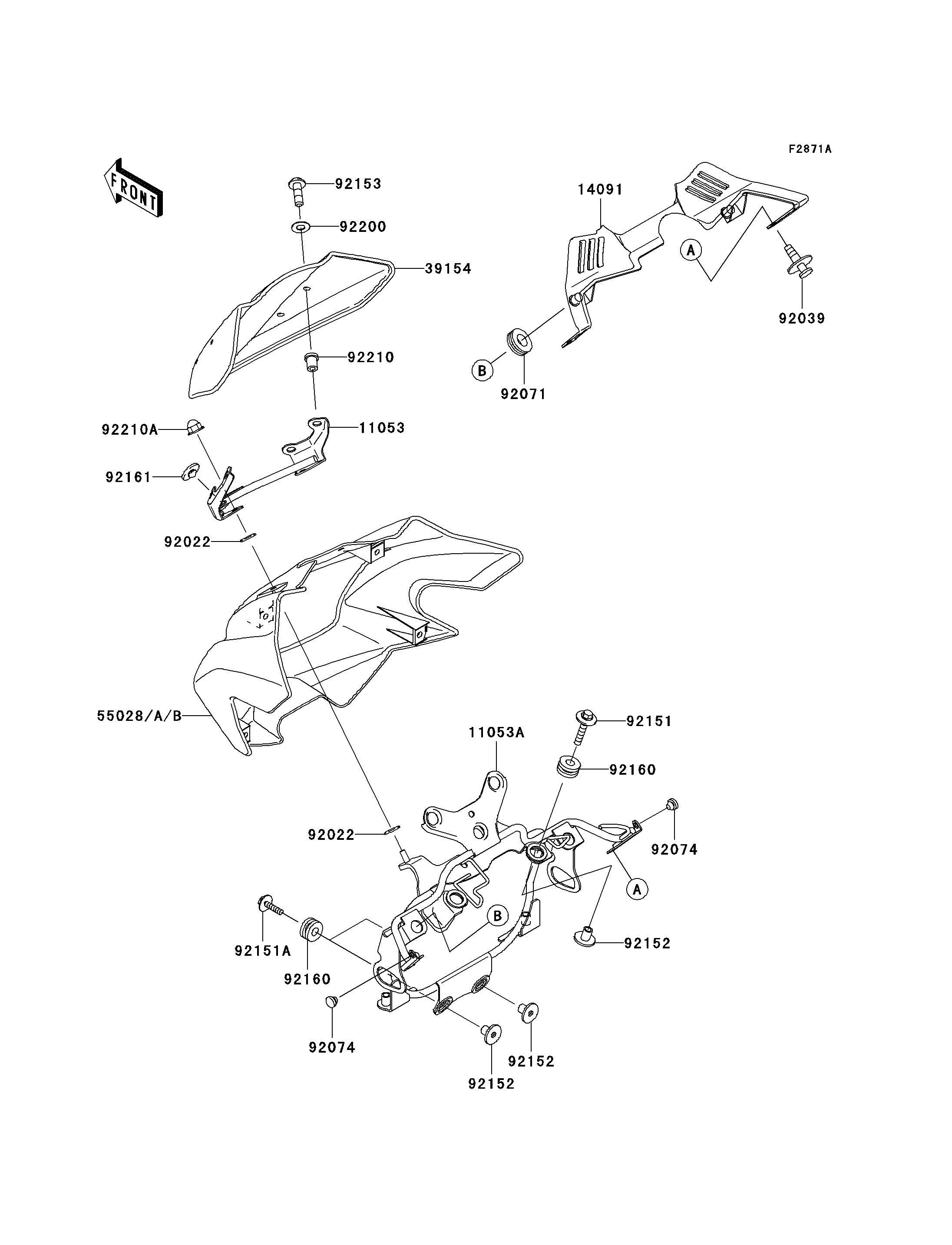

2005 Z1000 (European) - Cowling(A3H)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
14091
39154
55028
55028A
55028B
92022
92022
92039
92071
92074
92074
92151
92151A
92152
92152
92152
92153
92160
92160
92161
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,WINDSHIELD 11053 11053-1161 1
BRACKET,UPP COWLING&METER 11053A 11053-1412 1
COVER,COWLING,INNER 14091 14091-1549 1
WINDSHIELD 39154 39154-1160 1
COWLING,UPP,M.S.BLACK 55028 55028-1459-660 1
COWLING,UPP,TITANIUM 55028A 55028-1459-725 1
COWLING,UPP,L.GREEN 55028B 55028-1459-777 1
WASHER,6.5X16X1 92022 92022-1143 4
RIVET 92039 92039-1227 2
GROMMET 92071 92071-3737 2
PLUG,7X2 92074 92074-028 2
BOLT,FLANGED,6X30 92151 92151-1105 2
BOLT,6X25 92151A 92151-1241 2
COLLAR 92152 92152-0048 4
BOLT,SOCKET,5X18 92153 92153-0370 4
DAMPER 92160 92160-1162 4
DAMPER,RUBBER 92161 92161-1200 1
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 4
NUT,5MM 92210 92210-0001 4
NUT,CAP,6MM 92210A 92210-0003 2
