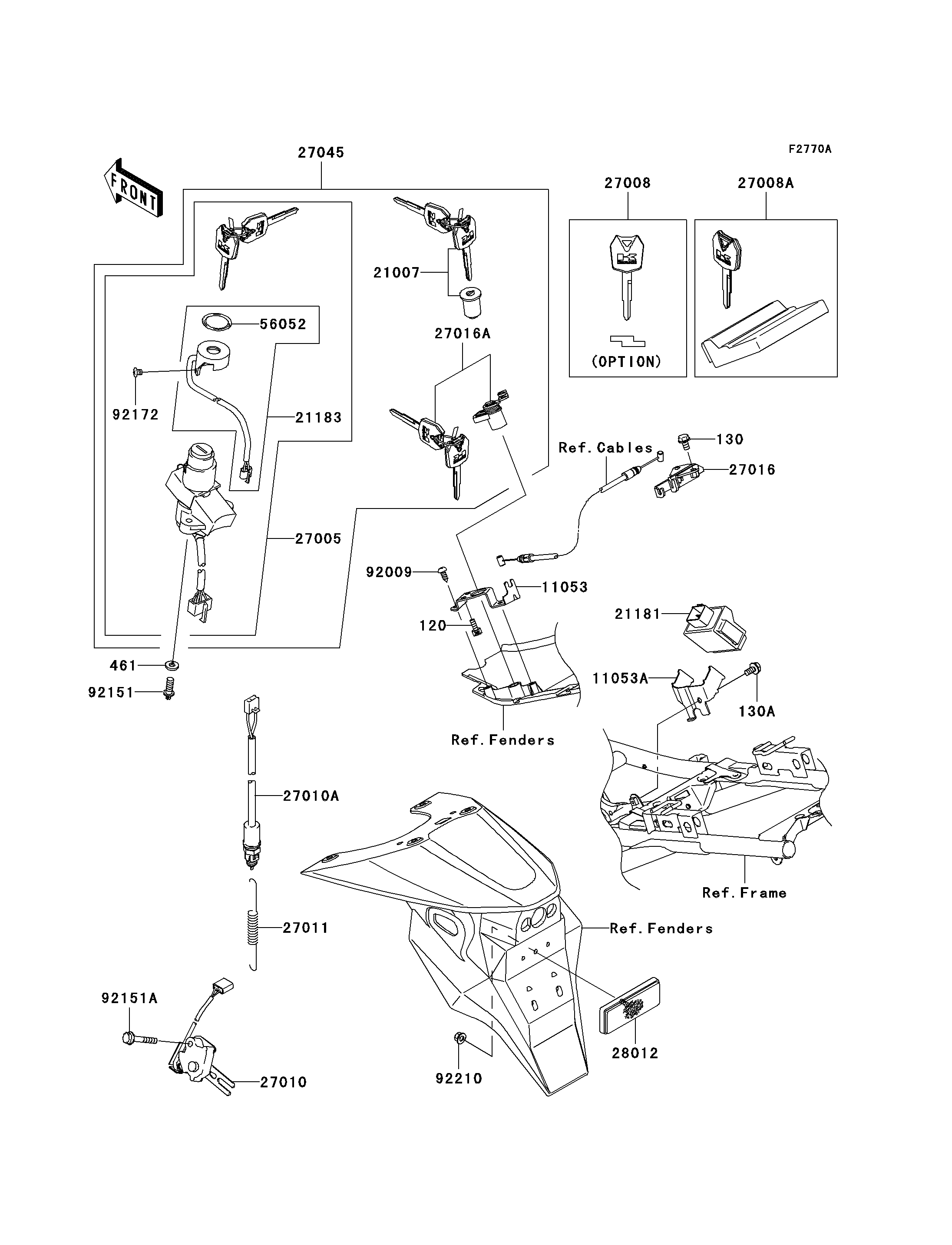

2005 Z1000 (European) - Ignition Switch(A3H)

DOWNLOAD PDF
SELECT A NEW PART
120
130
130A
461
11053
11053A
21007
21181
21183
27005
27008
27008A
27010
27010A
27011
27016
27016A
27045
28012
56052
92009
92151
92151A
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 2
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED 130A 130L0612 1
WASHER-SPRING 461 461L0600 2
BRACKET,SEAT LOCK 11053 11053-1146 1
BRACKET,AMPLIFIER 11053A 11053-1408 1
ROTOR,LOCK,TANK CAP 21007 21007-5056 1
AMPLIFIER,IMMOBILIZER 21181 21181-0001 1
ANTENNA,IMMOBILIZER 21183 21183-0002 1
SWITCH-ASSY-IGNITION 27005 27005-5129 1
KEY-LOCK,BLANK,IMMOBILIZER,SUB 27008 27008-0029 1 (OPTION)
MASTER KEY SET(BLANK),IMMOBI 27008A 27008-5013 1
SWITCH,SIDE STAND 27010 27010-1470 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-021 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5323 1
SWITCH-ASSY 27045 27045-5296 1
REFLECTOR-REFLEX 28012 28012-1077 1
MARK,IMMOBILIZER 56052 56052-0292 1
SCREW,TAPPING,5X12,BLACK 92009 92009-1138 2
BOLT,TORX,6X16 92151 92151-1911 2
BOLT,6X35 92151A 92151-1982 1
SCREW,4X8 92172 92172-0188 2
NUT,FLANGED,5MM 92210 92210-0007 1
