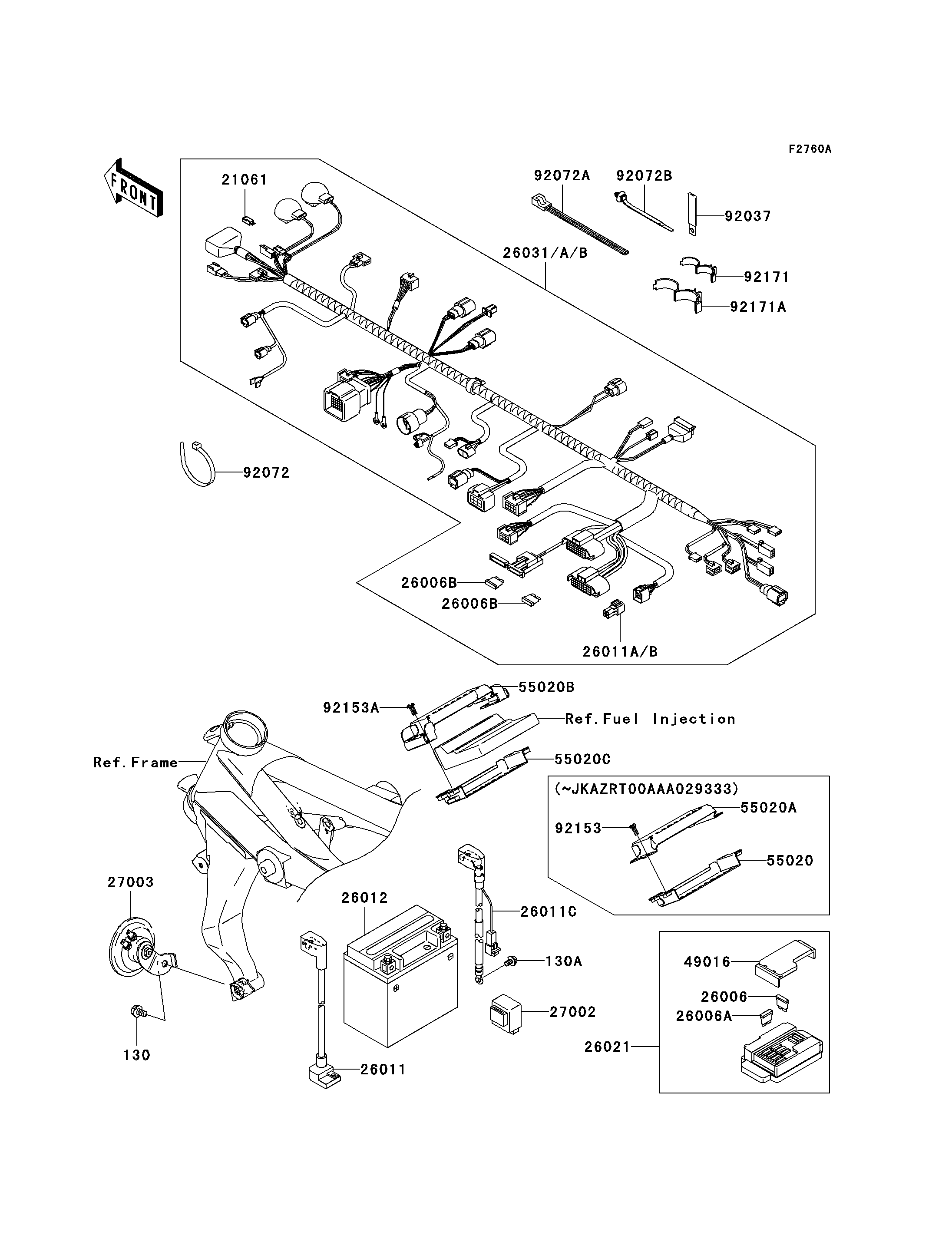

2005 Z1000 (European) - Chassis Electrical Equipment(A3H)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
21061
26006
26006A
26006B
26006B
26011
26011C
26012
26021
27002
27003
49016
55020
55020A
55020B
55020C
92037
92072
92072A
92072B
92153
92153A
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0812 1
BOLT-FLANGED,6X10 130A 130V0610 1
RECTIFIER 21061 21061-0001 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
FUSE,15A 26006B 26006-1075 2
WIRE-LEAD,BATTERY(+) 26011 26011-0006 1
WIRE-LEAD,BATTERY(-) 26011C 26011-0041 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1326 1
JUNCTION BOX 26021 26021-0001 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1101 1
HORN 27003 27003-0015 1
COVER-SEAL,FUSE 49016 49016-1177 1
GUARD,ECU,LWR 55020 55020-0138 1 ( - JKAZRT00AAA029333)
GUARD,ECU,UPP 55020A 55020-0182 1 ( - JKAZRT00AAA029333)
GUARD,ECU,UPP 55020B 55020-0185 1 (JKAZRT00AAA029334 - )
GUARD,ECU,LWR 55020C 55020-0187 1 (JKAZRT00AAA029334 - )
CLAMP,L=60 92037 92037-1069 1
BAND,L=202 92072 92072-1195 1
BAND,L=250 92072A 92072-1237 1
BAND 92072B 92072-1414 2
BOLT,5X12 92153 92153-0781 4 ( - JKAZRT00AAA029333)
BOLT,6X12 92153A 92153-0906 4 (JKAZRT00AAA029334 - )
CLAMP,DIA=15 92171 92171-1424 3
CLAMP,DIA=25 92171A 92171-1559 2
WIRE-LEAD 26011A 26011-0036 1 FR
WIRE-LEAD 26011B 26011-0037 1 UKWV
HARNESS,MAIN 26031 26031-0250 1 WV
HARNESS,MAIN 26031A 26031-0251 1 UK
HARNESS,MAIN 26031B 26031-0252 1 FR
