Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

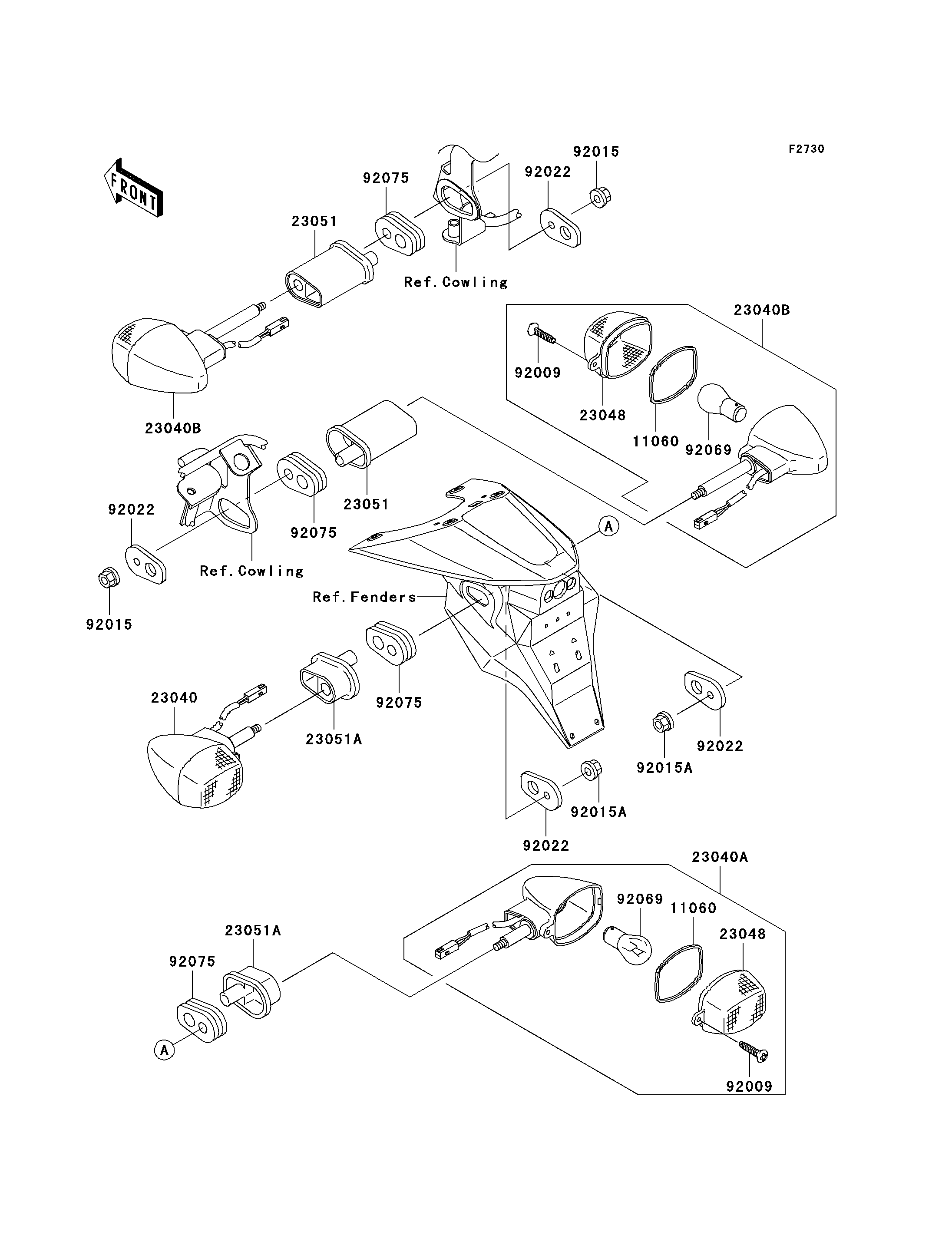

11060
11060
23040
23040A
23040B
23040B
23048
23048
23051
23051
23051A
23051A
92009
92009
92015
92015
92015A
92015A
92022
92022
92022
92022
92069
92069
92075
92075
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11060 | 11060-1826 | 4 | ||
| LAMP-SIGNAL,RR,LH | 23040 | 23040-1314 | 1 | ||
| LAMP-SIGNAL,RR,RH | 23040A | 23040-1315 | 1 | ||
| LAMP-SIGNAL,FR | 23040B | 23040-1321 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1168 | 4 | ||
| BRACKET-SIGNAL LAMP | 23051 | 23051-1248 | 2 | ||
| BRACKET-SIGNAL LAMP | 23051A | 23051-1251 | 2 | ||
| SCREW,TAPPING,4X12,BLACK | 92009 | 92009-1142 | 4 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
| NUT,FLANGED,6MM | 92015A | 92015-1367 | 2 | ||
| WASHER,SIGNAL LAMP | 92022 | 92022-1672 | 4 | ||
| BULB,12V 21W | 92069 | 4 | (LOCAL PROCUREMENT ITEM) | ||
| DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 4 |
