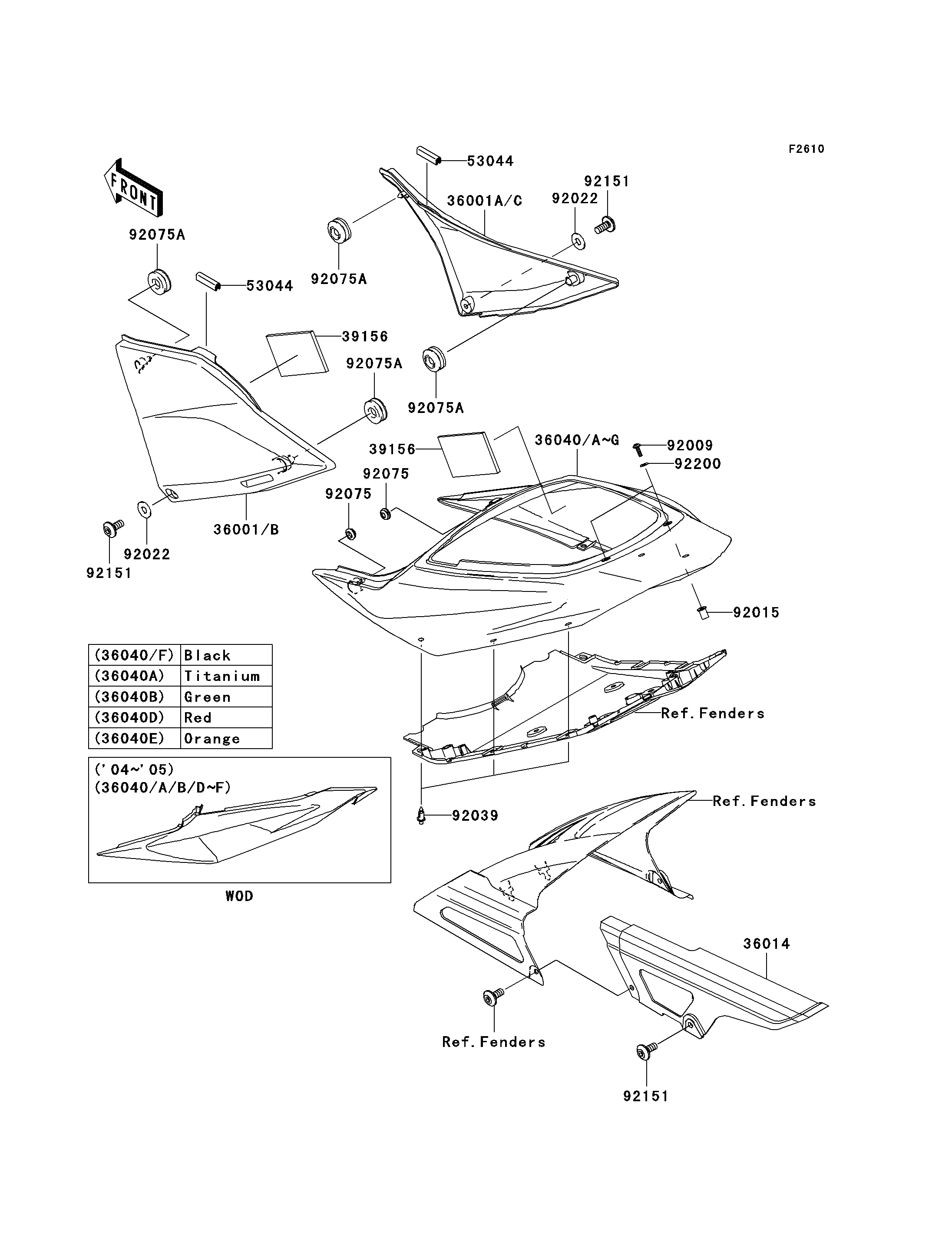

2005 Z1000 (European) - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
36040
36040A
36040B
39156
39156
53044
53044
92009
92015
92022
92022
92039
92075
92075
92075A
92075A
92075A
92075A
92151
92151
92151
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,M.F.GRAYSTONE 36001 36001-0040-4P 1
COVER-SIDE,RH,M.F.GRAYSTONE 36001A 36001-0041-4P 1
CASE-CHAIN 36014 36014-1263 1
COVER-TAIL,M.S.BLACK 36040 36040-0012-660 1
COVER-TAIL,TITANIUM 36040A 36040-0012-725 1
COVER-TAIL,L.GREEN 36040B 36040-0012-777 1
PAD 39156 39156-0024 2
TRIM,L=30 53044 53044-0001 2
SCREW,5X16 92009 92009-1909 2
NUT,WELL,5MM 92015 92015-1757 2
WASHER,6.5X16X1 92022 92022-1143 2
RIVET 92039 92039-0015 6
DAMPER 92075 92075-1011 2
DAMPER 92075A 92075-1067 4
BOLT,SOCKET,6X14 92151 92151-1654 3
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
