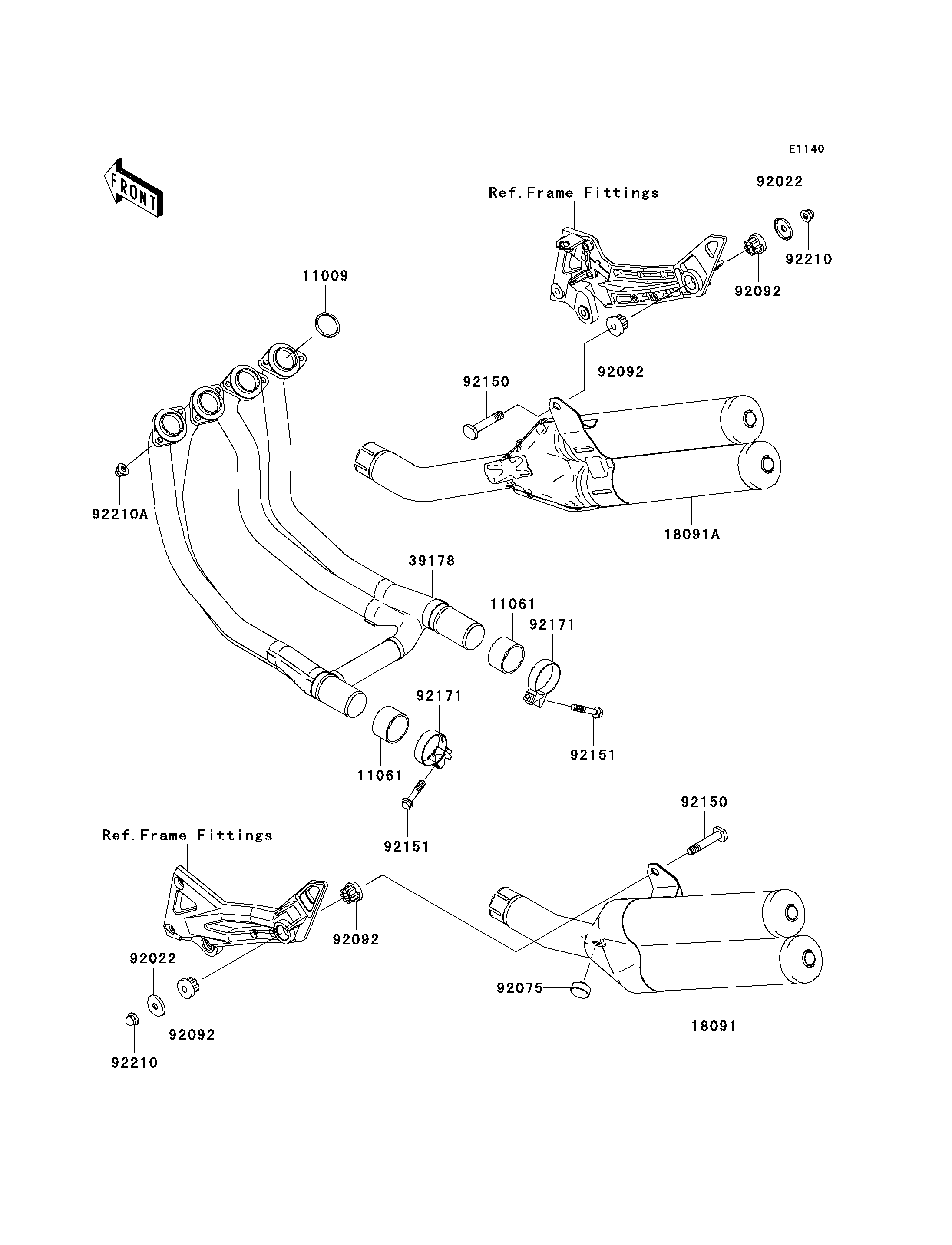

Parts Diagrams |
11009
11061
11061
18091
18091A
39178
92022
92022
92075
92092
92092
92092
92092
92150
92150
92151
92151
92171
92171
92210
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1840 | 4 | ||
| GASKET,MUFFLER CONNECTING | 11061 | 11061-0023 | 2 | ||
| BODY-COMP-MUFFLER,LH | 18091 | 18091-0019 | 1 | ||
| BODY-COMP-MUFFLER,RH | 18091A | 18091-0020 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0008 | 1 | ||
| WASHER | 92022 | 92022-289 | 2 | ||
| DAMPER | 92075 | 92075-1737 | 1 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1087 | 4 | ||
| BOLT,10X55 | 92150 | 92150-1792 | 2 | ||
| BOLT,FLANGED,8X40 | 92151 | 92151-1532 | 2 | ||
| CLAMP | 92171 | 92171-0043 | 2 | ||
| NUT,CAP,10MM | 92210 | 92210-1121 | 2 | ||
| NUT,8MM | 92210A | 92210-1328 | 8 |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER,LH | |
| REF # | 18091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER,RH | |
| REF # | 18091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,MUFFLER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X55 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X40 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
