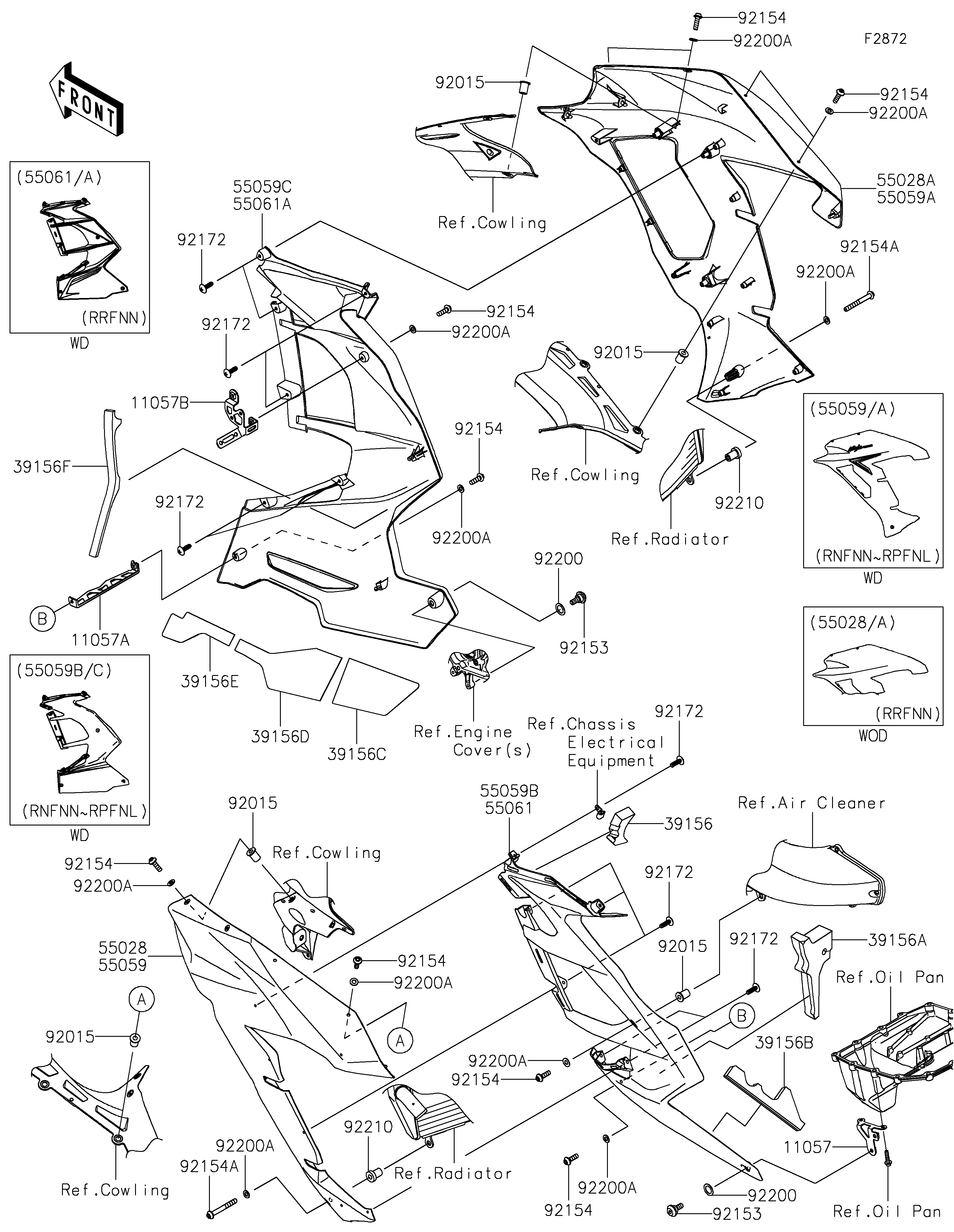

2022 NINJA H2® SX SE - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
39156
39156A
39156B
39156C
39156D
39156E
39156F
55059
55059A
55059B
55059C
92015
92015
92015
92015
92015
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92172
92172
92172
92172
92172
92172
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWL.,RR 11057 11057-1286 1
BRACKET,CONNECTING,LWR 11057A 11057-1287 1
BRACKET,SIDE COWL.,W/ABS PIPE 11057B 11057-1297 1
PAD,DUCT 39156 39156-2255 1
PAD,GENERATOR COVER 39156A 39156-2377 1
PAD,30X60X30 39156B 39156-2385 1
PAD,HEAT INSULATION,RR 39156C 39156-2733 1
PAD,HEAT INSULATION,MID 39156D 39156-2734 1
PAD,HEAT INSULATION,FR 39156E 39156-2735 1
PAD,RESERVOIR 39156F 39156-2745 1
COWLING,SIDE,FR,LH,M.D.BLACK 55059 55059-5451-17K 1
COWLING,SIDE,FR,RH,M.D.BLACK 55059A 55059-5452-17K 1
COWLING,SIDE,RR,LH,M.G.GRY+GRN 55059B 55059-5482-62Z 1
COWLING,SIDE,RR,RH,M.G.GRY+GRN 55059C 55059-5483-62Z 1
NUT,WELL,5MM 92015 92015-1757 9
BOLT,SOCKET,6MM 92153 92153-0489 2
BOLT,SOCKET,5X16 92154 92154-0209 12
BOLT,SOCKET,5X45 92154A 92154-2934 2
SCREW,TAPPING,5X16 92172 92172-0238 12
WASHER,10.4X15.9X0.5 92200 92200-0157 2
WASHER,5.2X10X1.0 92200A 92200-1820 14
NUT,5MM 92210 92210-0001 2
