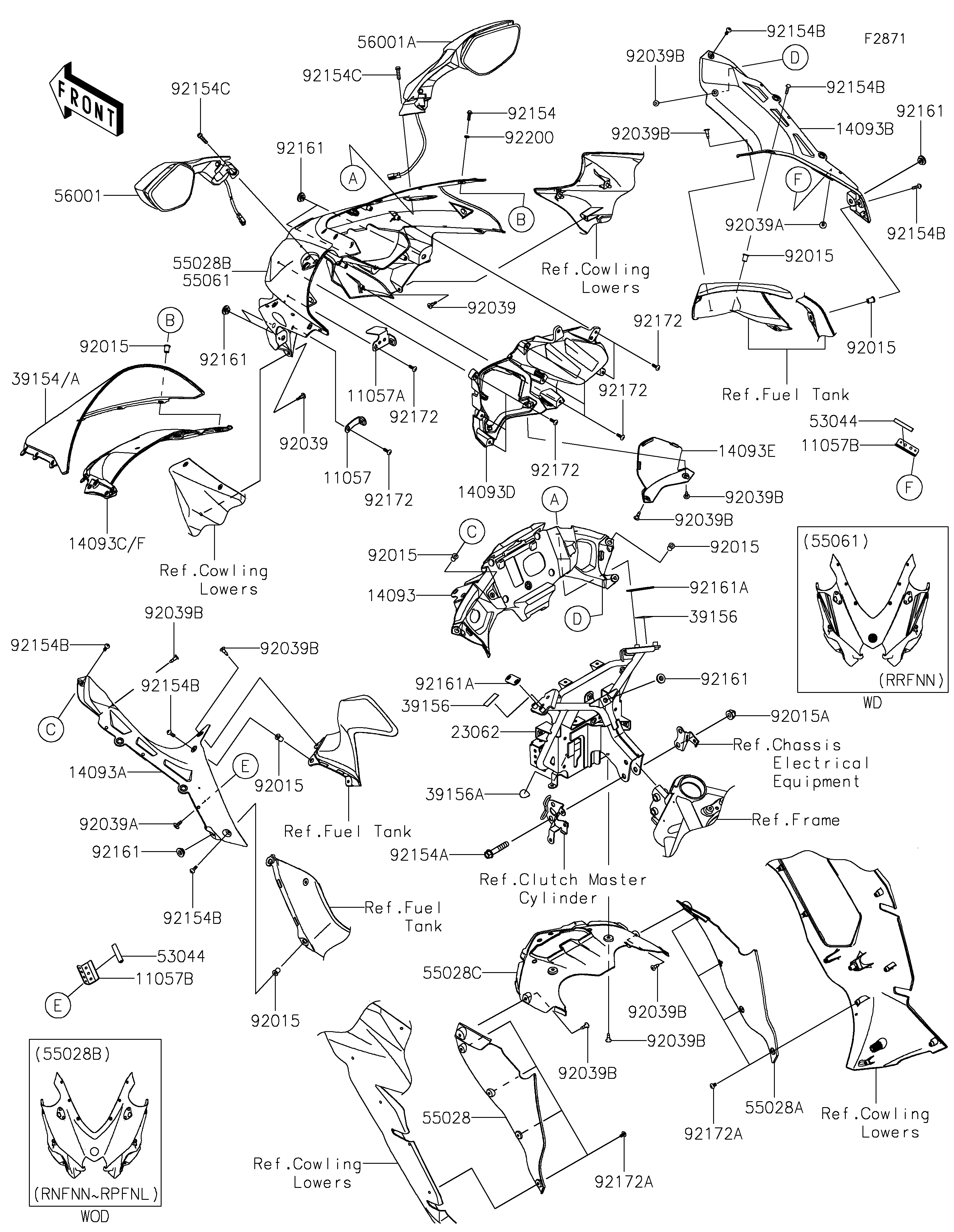

Parts Diagrams |
11057
11057A
11057B
11057B
14093
14093A
14093B
14093C
14093D
14093E
23062
39154
39156
39156
39156A
53044
53044
55028
55028A
55028B
55028C
56001
56001A
92015
92015
92015
92015
92015
92015
92015
92015A
92039
92039
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92154
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92161
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172A
92172A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,DUCT | 11057 | 11057-7236 | 1 | ||
| BRACKET,ETC ANTENNA | 11057A | 11057-7237 | 1 | ||
| BRACKET | 11057B | 11057-7349 | 2 | ||
| COVER,INNER,CNT | 14093 | 14093-1126 | 1 | ||
| COVER,INNER,LH | 14093A | 14093-1127 | 1 | ||
| COVER,INNER,RH | 14093B | 14093-1128 | 1 | ||
| COVER,METER | 14093C | 14093-1129 | 1 | ||
| COVER,DUCT | 14093D | 14093-1130 | 1 | ||
| COVER,RADAR | 14093E | 14093-1131 | 1 | ||
| BRACKET-COMP,METER&RADAR | 23062 | 23062-1462 | 1 | ||
| WINDSHIELD,LARGE | 39154 | 39154-0372 | 1 | ||
| PAD,35X25X0.2 | 39156 | 39156-2449 | 2 | ||
| PAD,15X0.25 | 39156A | 39156-2712 | 1 | ||
| TRIM | 53044 | 53044-0580 | 2 | ||
| COWLING,SIDE COWL.,INNER,LH | 55028 | 55028-0653 | 1 | ||
| COWLING,SIDE COWL.,INNER,RH | 55028A | 55028-0654 | 1 | ||
| COWLING,UPP,M.D.BLACK+GRN | 55028B | 55028-0801-62F | 1 | ||
| COWLING,FR,INNER | 55028C | 55028-0804 | 1 | ||
| MIRROR-ASSY,LH,SIGNAL | 56001 | 56001-0436 | 1 | ||
| MIRROR-ASSY,RH,SIGNAL | 56001A | 56001-0437 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 12 | ||
| NUT,CAP,10MM | 92015A | 92015-1961 | 2 | ||
| RIVET | 92039 | 92039-0051 | 2 | ||
| RIVET | 92039A | 92039-0067 | 4 | ||
| RIVET | 92039B | 92039-0068 | 10 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 6 | ||
| BOLT,FLANGED,10X54 | 92154A | 92154-0903 | 2 | ||
| BOLT,SOCKET,5X16 | 92154B | 92154-1701 | 6 | ||
| BOLT,SOCKET,6X22,MEC | 92154C | 92154-2736 | 4 | ||
| DAMPER | 92161 | 92161-1531 | 7 | ||
| DAMPER,MIRROR | 92161A | 92161-2397 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 10 | ||
| SCREW,TAPPING,5X10 | 92172A | 92172-0335 | 8 | ||
| WASHER,5.2X10X1.0 | 92200 | 92200-1820 | 6 |
