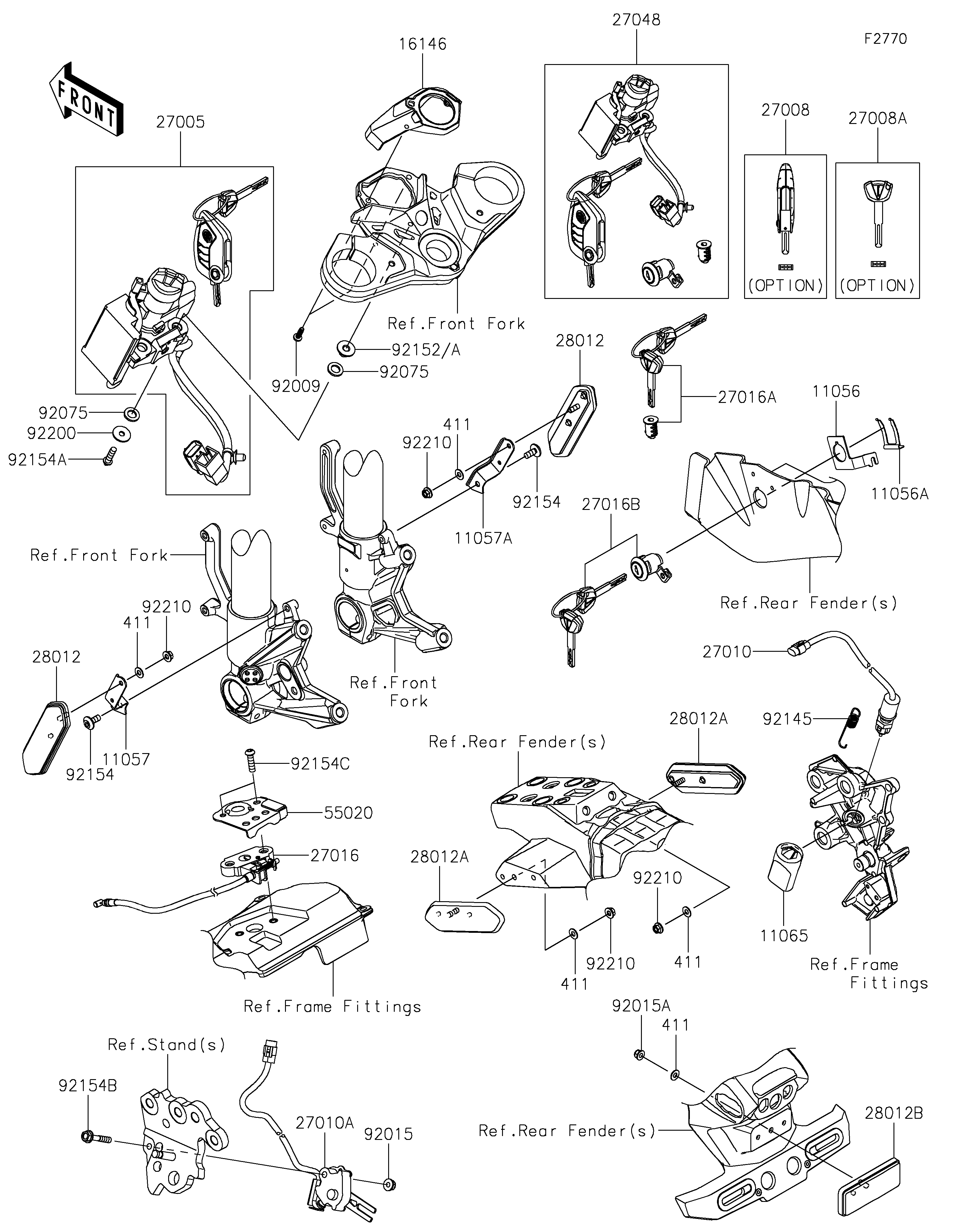

2022 NINJA H2® SX SE - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11057
11057A
11065
16146
27005
27008
27008A
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
28012A
28012B
55020
92009
92015
92015A
92075
92075
92145
92152
92154
92154
92154A
92154B
92154C
92200
92210
92210
92210
92210
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-0237 1
BRACKET,CLASP 11056A 11056-0238 1
BRACKET,REFLECTOR,LH 11057 11057-1300 1
BRACKET,REFLECTOR,RH 11057A 11057-1301 1
CAP,RR BRAKE SWITCH 11065 11065-0381 1
COVER-ASSY,SWITCH KNOB 16146 16146-0849 1
SWITCH-ASSY-IGNITION 27005 27005-0728 1
FOB KEY,BLANK 27008 27008-0680 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-0686 1 (OPTION)
SWITCH,STOP 27010 27010-0836 1
SWITCH,SIDE STAND 27010A 27010-0872 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0098 1
LOCK-ASSY,TANK CAP 27016A 27016-5425 1
LOCK-ASSY,SEAT 27016B 27016-5427 1
SWITCH-ASSY 27048 27048-5298 1
REFLECTOR-REFLEX,CCC 28012 28012-0045 2
REFLECTOR-REFLEX,RED,CCC 28012A 28012-0046 2
REFLECTOR-REFLEX 28012B 28012-1077 1
GUARD,SEAT STRIKER 55020 55020-2259 1
SCREW,TAPPING,5X16 92009 92009-1264 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 1
NUT,LOCK,FLANGED,5MM 92015A 92015-1752 1
DAMPER 92075 92075-1564 4
SPRING 92145 92145-1794 1
COLLAR 92152 92152-2842 2
BOLT,SOCKET,6X14 92154 92154-0745 2
BOLT,TORX,6X22 92154A 92154-1858 2
BOLT,FLANGED,6X35 92154B 92154-4455 1
BOLT,SOCKET,6X22 92154C 92154-4458 2
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 4
WASHER-PLAIN,5MM 411 411AA0500 5
