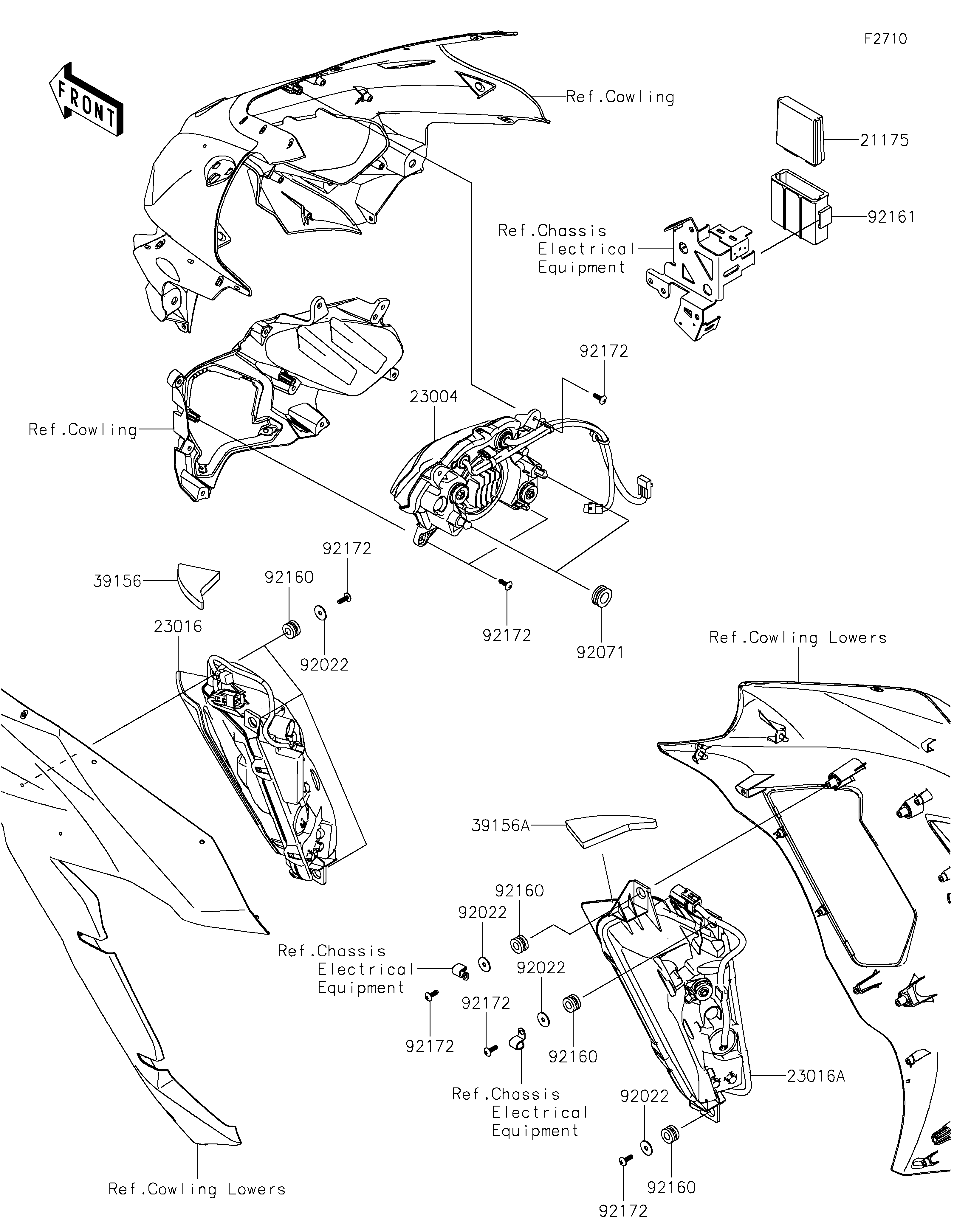

2022 NINJA H2® SX SE - Headlight(s)(RNFNN/RNFNL)
21175
23004
23016
23016A
39156
39156A
92022
92022
92022
92022
92071
92160
92160
92160
92160
92161
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CONTROL UNIT-ELECTRONIC,H.LAMP | 21175 | 21175-1698 | 1 | ||
| LAMP-HEAD,LED | 23004 | 23004-0425 | 1 | ||
| LAMP-ASSY,LED,CORNERING,LH | 23016 | 23016-0635 | 1 | ||
| LAMP-ASSY,LED,CORNERING,RH | 23016A | 23016-0636 | 1 | ||
| PAD | 39156 | 39156-2446 | 1 | ||
| PAD | 39156A | 39156-2447 | 1 | ||
| WASHER,5.5X20X1.2 | 92022 | 92022-1405 | 6 | ||
| GROMMET | 92071 | 92071-1131 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 6 | ||
| DAMPER,HEAD LAMP,ECU | 92161 | 92161-2396 | 1 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 10 |
