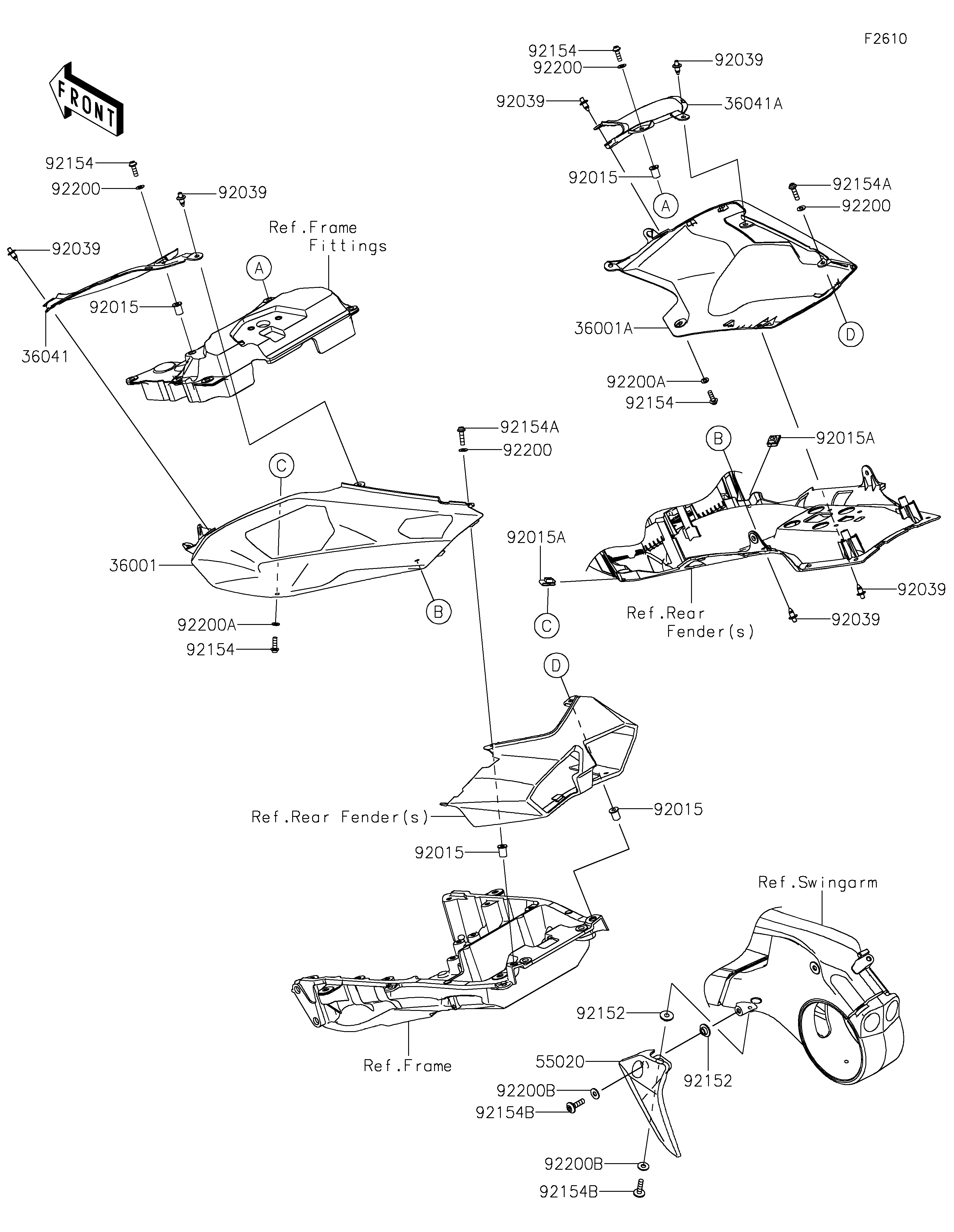

2022 NINJA H2® SX SE - Side Covers/Chain Cover
36001
36001A
36041
36041A
55020
92015
92015
92015
92015
92015A
92015A
92039
92039
92039
92039
92039
92039
92152
92152
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92200
92200
92200
92200
92200A
92200A
92200B
92200B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,E.B.GREEN | 36001 | 36001-0680-60R | 1 | ||
| COVER-SIDE,RH,E.B.GREEN | 36001A | 36001-0681-60R | 1 | ||
| COVER-TAIL,LH,E.B.GREEN | 36041 | 36041-0040-60R | 1 | ||
| COVER-TAIL,RH,E.B.GREEN | 36041A | 36041-0041-60R | 1 | ||
| GUARD,SPROCKET | 55020 | 55020-1851 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 4 | ||
| NUT,5MM | 92015A | 92015-1996 | 2 | ||
| RIVET | 92039 | 92039-0068 | 6 | ||
| COLLAR,6.2X18X5.65 | 92152 | 92152-1979 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 4 | ||
| BOLT,SOCKET,5X20 | 92154A | 92154-0210 | 2 | ||
| BOLT,SOCKET,6X22 | 92154B | 92154-1810 | 2 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 4 | ||
| WASHER,NYLON,5.2X12X1 | 92200A | 92200-1011 | 2 | ||
| WASHER,6.2X15X1.2 | 92200B | 92200-1762 | 2 |
