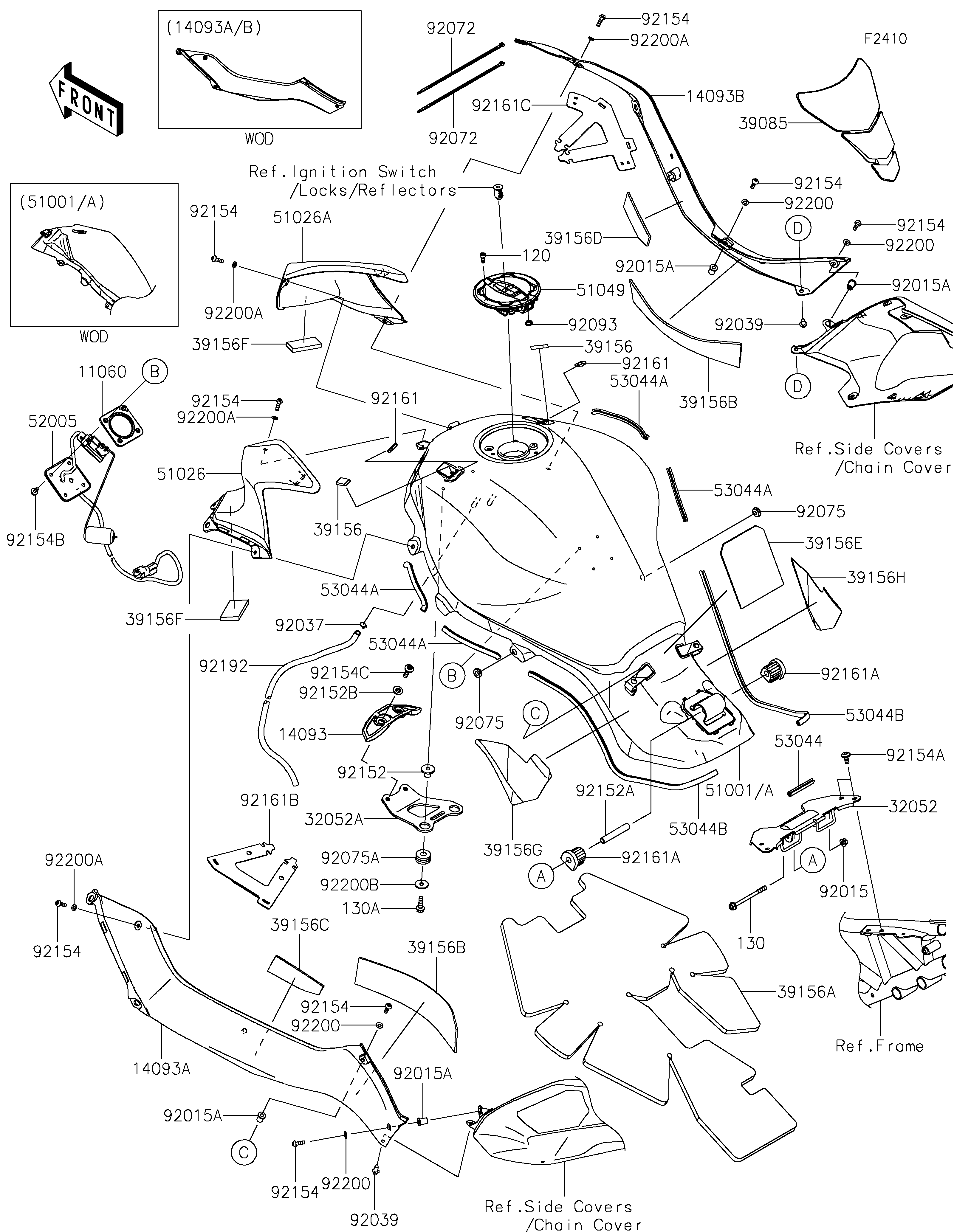

2022 NINJA H2® SX SE - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
14093
14093
14093A
14093A
14093B
14093B
32052
32052
32052A
32052A
39085
39085
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156F
39156F
39156G
39156G
39156H
39156H
51001A
51001A
51026
51026
51026A
51026A
51049
51049
52005
52005
53044
53044
53044A
53044A
53044A
53044A
53044A
53044A
53044A
53044A
53044B
53044B
53044B
53044B
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92037
92037
92039
92039
92039
92039
92072
92072
92072
92072
92075
92075
92075
92075
92075A
92075A
92093
92093
92152
92152
92152A
92152A
92152B
92152B
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92192
92192
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200B
92200B
120
120
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,TANK,FR 14093 14093-0676 1
COVER,KNEE,LH,M.D.BLACK 14093A 14093-0912-J03 1
COVER,KNEE,RH,M.D.BLACK 14093B 14093-0913-J03 1
BRACKET-TANK 32052 32052-0812 1
BRACKET-TANK 32052A 32052-0860 1
PAD-TANK 39085 39085-0015 1
PAD,20X30X4 39156 39156-0705 2
PAD,FUEL TANK,LWR 39156A 39156-2229 1
PAD,50X250X3 39156B 39156-2257 2
PAD,43X95X8,LH 39156C 39156-2290 1
PAD,43X95X8,RH 39156D 39156-2291 1
PAD,113X100X2 39156E 39156-2307 1
PAD,25X50X8 39156F 39156-2520 2
PAD,FUEL TANK,LH 39156G 39156-2816 1
PAD,FUEL TANK,RH 39156H 39156-2817 1
TANK-COMP-FUEL,E.B.GREEN 51001A 51001-0919-J06 1
COVER TANK,LH,M.D.BLACK 51026 51026-0016-J03 1
COVER TANK,RH,M.D.BLACK 51026A 51026-0017-J03 1
CAP-TANK,FUEL 51049 51049-0756 1
GAUGE,FUEL 52005 52005-0763 1
TRIM 53044 53044-0565 1
TRIM,105MM 53044A 53044-0627 4
TRIM,450MM 53044B 53044-0628 2
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,WELL,5MM 92015A 92015-1757 4
CLAMP,TUBE 92037 92037-010 1
RIVET 92039 92039-0068 2
BAND,202X3.6 92072 92072-0782 2
DAMPER,6X16X7 92075 92075-1011 2
DAMPER,10X24X12 92075A 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.3X10X14.5 92152 92152-0091 2
COLLAR,6.8X10X60 92152A 92152-1182 1
COLLAR,6.5X16X4.6 92152B 92152-2495 2
BOLT,SOCKET,5X16 92154 92154-0209 8
BOLT,SOCKET,6X14 92154A 92154-1807 4
BOLT,FLANGED,5X12 92154B 92154-1856 4
BOLT,SOCKET,6X22 92154C 92154-2234 2
DAMPER 92161 92161-0365 2
DAMPER,FUEL TANK 92161A 92161-1737 2
DAMPER,LH 92161B 92161-2181 1
DAMPER,RH 92161C 92161-2182 1
TUBE,DRAIN,6X9X808 92192 92192-1669 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
WASHER,NYLON,5.2X12X1 92200A 92200-1011 4
WASHER,6.5X22X1.6 92200B 92200-1087 2
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,6X75 130 130BA0675 1
BOLT-FLANGED,6X22 130A 130CA0622 2
