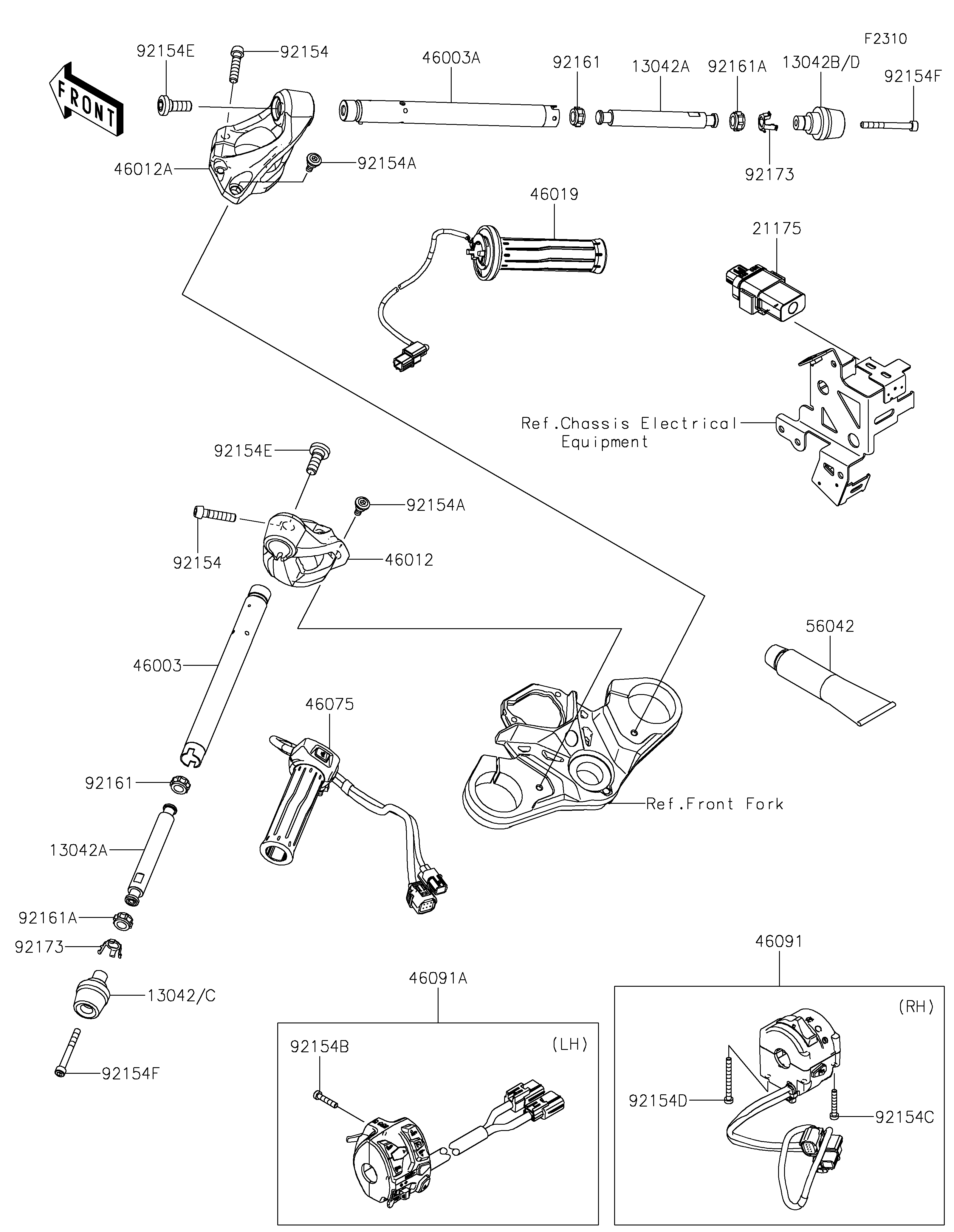

2022 NINJA H2® SX SE - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042A
13042A
13042B
21175
46003
46003A
46012
46012A
46019
46075
46091
46091A
56042
92154
92154
92154A
92154A
92154B
92154C
92154D
92154E
92154E
92154F
92154F
92161
92161
92161A
92161A
92173
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE,END 13042 13042-0767 1
WEIGHT,HANDLE,INSIDE 13042A 13042-0768 2
WEIGHT,HANDLE,END 13042B 13042-0802 1
CONTROL UNIT-ELECTRONIC,GH 21175 21175-1329 1
HANDLE,LH 46003 46003-0816 1
HANDLE,RH 46003A 46003-0817 1
HOLDER-HANDLE,LH,M.F.S.BLACK 46012 46012-0392-46R 1
HOLDER-HANDLE,RH,M.F.S.BLACK 46012A 46012-0393-46R 1
GRIP-ASSY,THROTTLE,HEATER 46019 46019-0116 1
GRIP,LH,HEATER 46075 46075-0662 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0572 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0593 1
ADHESIVE,TB1530C 56042 56042-0001 AR
BOLT,SOCKET,8X35 92154 92154-1969 2
BOLT,SOCKET,6X16.5 92154A 92154-2325 2
BOLT,SOCKET,5X25 92154B 92154-2596 2
BOLT,5X30 92154C 92154-3921 2
BOLT,5X50 92154D 92154-3922 2
BOLT,SOCKET,10X27 92154E 92154-3954 2
BOLT,SOCKET,6X55 92154F 92154-4251 2
DAMPER,INSIDE 92161 92161-2084 2
DAMPER,OUTSIDE 92161A 92161-2085 2
CLAMP,WEIGHT 92173 92173-1386 2
