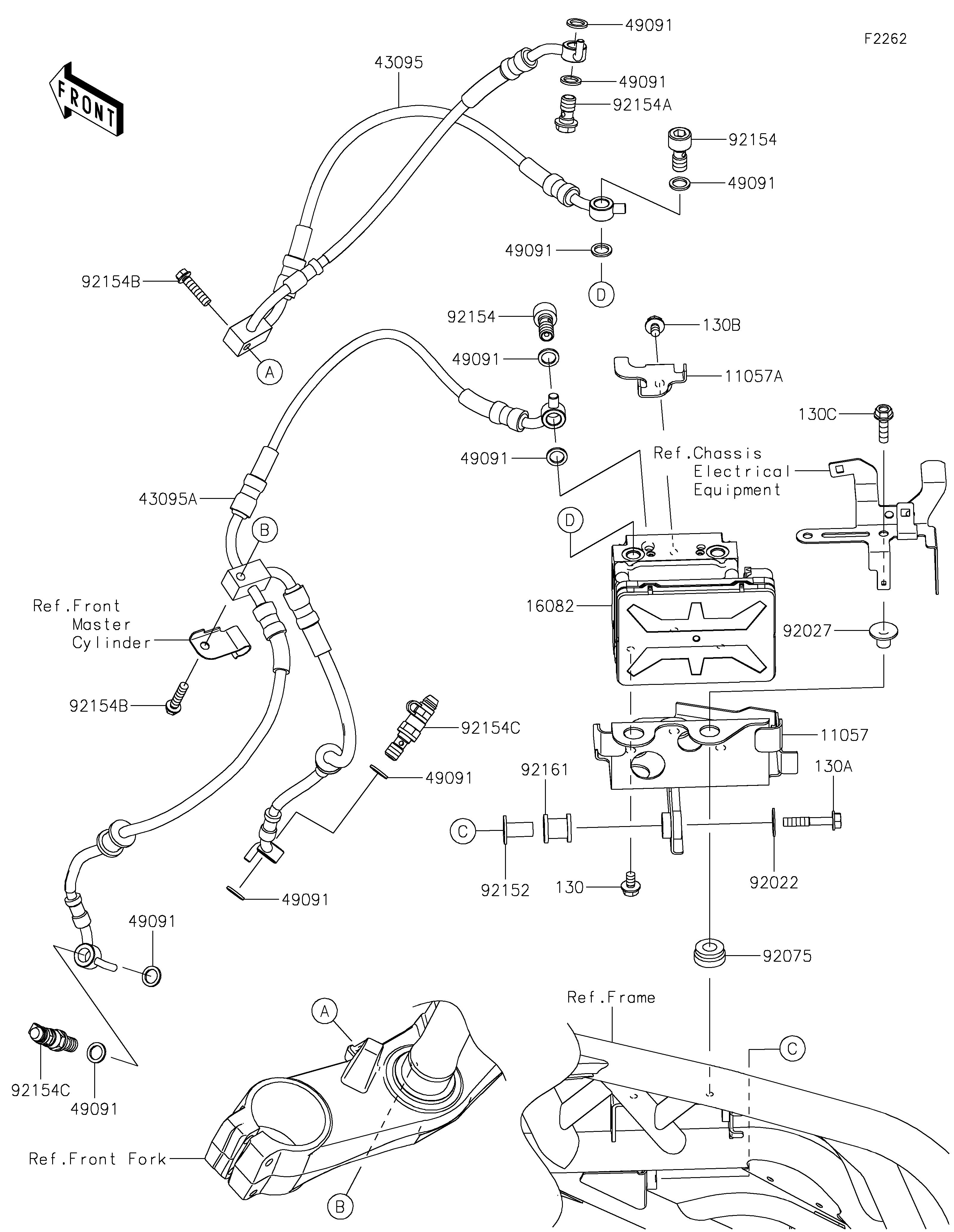

2022 NINJA H2® SX SE - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
16082
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92022
92027
92075
92152
92154
92154
92154A
92154B
92154B
92154C
92154C
92161
130
130A
130B
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11057 11057-7228 1
BRACKET 11057A 11057-7260 1
PUMP-ASSY-OIL,ABS,10.3ME 16082 16082-0865 1
HOSE-BRAKE,ABS UNIT-FR M/C 43095 43095-1781 1
HOSE-BRAKE,ABS UNIT-FR CALIPER 43095A 43095-1784 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 10
WASHER,PLAIN,6.5X20X1 92022 92022-165 1
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
DAMPER 92075 92075-277 2
COLLAR,6.5X10X20.5 92152 92152-1570 1
BOLT,BANJO,10X20.8 92154 92154-1121 2
BOLT,BANJO,10X19 92154A 92154-1554 1
BOLT,FLANGED,6X25 92154B 92154-1849 2
BOLT,BANJO,10X19 92154C 92154-4032 2
DAMPER,10X20X18.9 92161 92161-1406 1
BOLT-FLANGED,6X10 130 130BA0610 3
BOLT-FLANGED,6X35 130A 130BA0635 1
BOLT-FLANGED,6X8 130B 130BB0608 1
BOLT-FLANGED,6X22 130C 130BB0622 2
