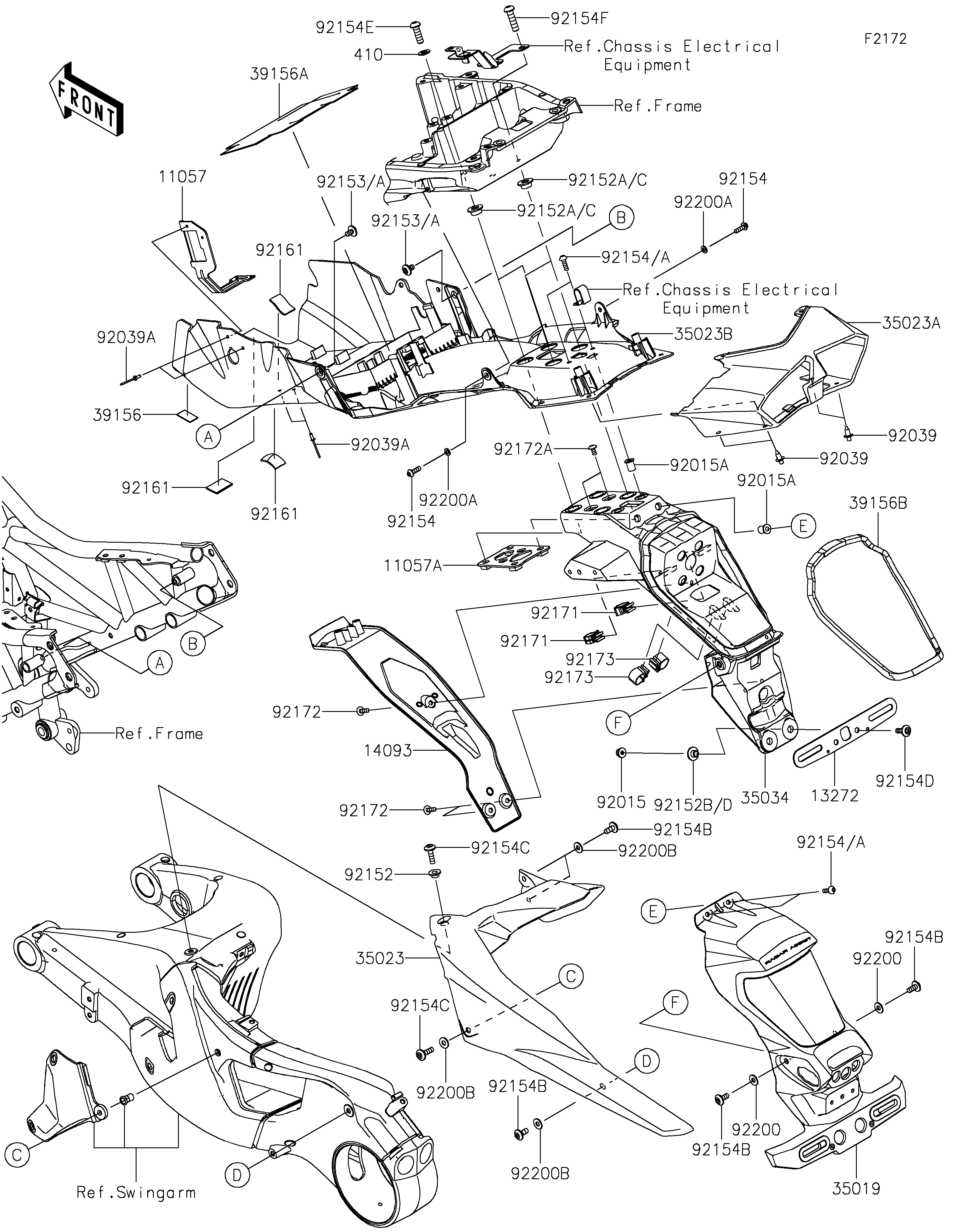

2022 NINJA H2® SX SE - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
13272
14093
35019
35023
35023A
35023B
35034
39156
39156A
39156B
92015
92015A
92015A
92039
92039
92039A
92039A
92152
92152A
92152A
92152B
92153
92153
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154E
92154F
92161
92161
92161
92171
92171
92172
92172
92172A
92173
92173
92200
92200
92200A
92200A
92200B
92200B
92200B
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,KEY CYLINDER 11057 11057-1627 1
BRACKET,NUMBER PLATE 11057A 11057-7210 1
PLATE 13272 13272-3911 1
COVER,FLAP 14093 14093-1125 1
FLAP 35019 35019-0690 1
FENDER-REAR,HUGGER 35023 35023-0442 1
FENDER-REAR,TAIL 35023A 35023-0443 1
FENDER-REAR 35023B 35023-0458 1
REINFORCE 35034 35034-0612 1
PAD,15X25X1 39156 39156-2119 1
PAD 39156A 39156-2487 1
PAD 39156B 39156-2710 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
NUT,WELL,5MM 92015A 92015-1757 4
RIVET 92039 92039-0068 4
RIVET,3.2X9.5 92039A 92039-0752 4
COLLAR,6.5X10X6.2 92152 92152-2152 1
COLLAR 92152A 92152-2788 4
COLLAR 92152B 92152-2845 2
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,5X16 92154A 92154-1701 4
BOLT,SOCKET,6X14 92154B 92154-1807 5
BOLT,SOCKET,6X22 92154C 92154-1810 2
BOLT,SOCKET,6X18 92154D 92154-2438 2
BOLT,SOCKET,8X25 92154E 92154-4459 2
BOLT,SOCKET,8X30 92154F 92154-4460 2
DAMPER,30X20X2 92161 92161-0833 3
CLAMP,EDGE CLIP 92171 92171-1722 2
SCREW,TAPPING,5X16 92172 92172-0175 3
SCREW,TAPPING,5X10 92172A 92172-0335 2
CLAMP,CLIP 92173 92173-0127 2
WASHER,6.2X15X1.2 92200 92200-1762 2
WASHER,5.2X10X1.0 92200A 92200-1820 2
WASHER,6.2X15X1.2 92200B 92200-1937 4
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
