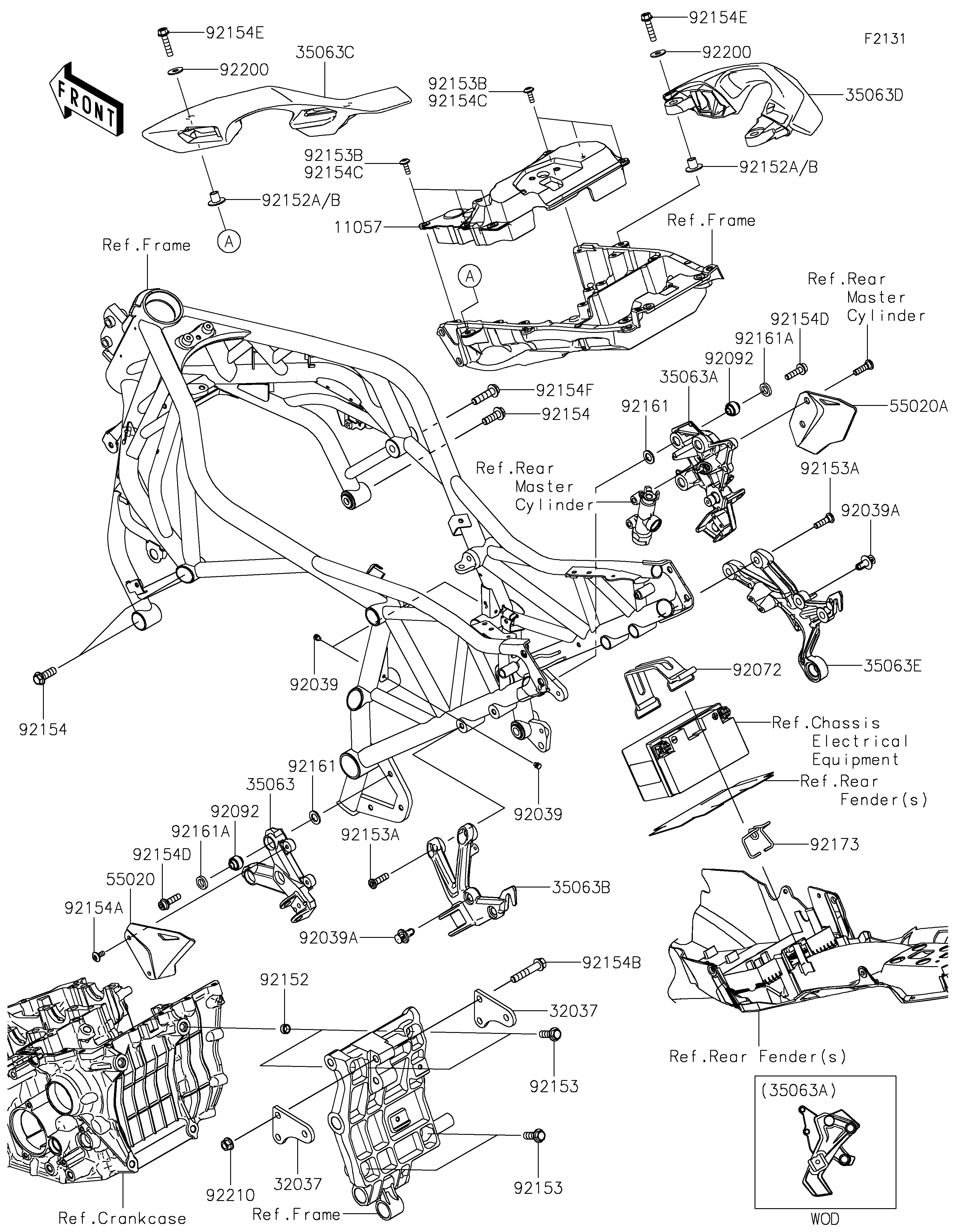

2022 NINJA H2® SX SE - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
32037
32037
35063
35063A
35063B
35063C
35063D
35063E
55020
55020A
92039
92039
92039A
92039A
92072
92092
92092
92152
92152A
92152A
92153
92153
92153A
92153A
92154
92154
92154A
92154B
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92161
92161
92161A
92161A
92173
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR FRAME,UPP 11057 11057-7231 1
BRACKET-SHOCKABSORBER 32037 32037-0454 2
STAY,STEP,LH,FR,M.F.S.BLACK 35063 35063-1418-46R 1
STAY,STEP,RH,FR,M.F.S.BLACK 35063A 35063-1419-46R 1
STAY,STEP,LH,RR,M.F.S.BLACK 35063B 35063-1420-46R 1
STAY,GRIP,LH 35063C 35063-1474 1
STAY,GRIP,RH 35063D 35063-1475 1
STAY,STEP,RH,RR,M.F.S.BLACK 35063E 35063-1557-46R 1
GUARD,FOOT,LH 55020 55020-2201 1
GUARD,FOOT,RH 55020A 55020-2202 1
RIVET,PLASTI 92039 92039-0773 3
RIVET 92039A 92039-0789 4
BAND,L=150 92072 92072-1338 1
BUSHING-RUBBER,8.4X20X18 92092 92092-0039 6
COLLAR,DOWEL PIN 92152 92152-0679 2
COLLAR,9.05X12.6X15.3 92152A 92152-2412 4
BOLT,FLANGED,10X30 92153 92153-0801 4
BOLT,SOCKET,8X30 92153A 92153-1624 4
BOLT,FLANGED,10X30 92154 92154-0543 3
BOLT,SOCKET,6X14 92154A 92154-0745 2
BOLT,FLANGED,10X54 92154B 92154-0903 3
BOLT,SOCKET,6X18 92154C 92154-1694 6
BOLT,SOCKET,8X30 92154D 92154-2912 6
BOLT,FLANGED,8X35 92154E 92154-2915 4
BOLT,FLANGED,10X40 92154F 92154-2924 1
DAMPER,12.5X21X2 92161 92161-0943 6
DAMPER,12.5X20X4 92161A 92161-0944 6
CLAMP 92173 92173-2093 1
WASHER,8.5X23X1.6 92200 92200-1936 4
NUT,LOCK,FLANGED,10MM 92210 92210-1139 3
