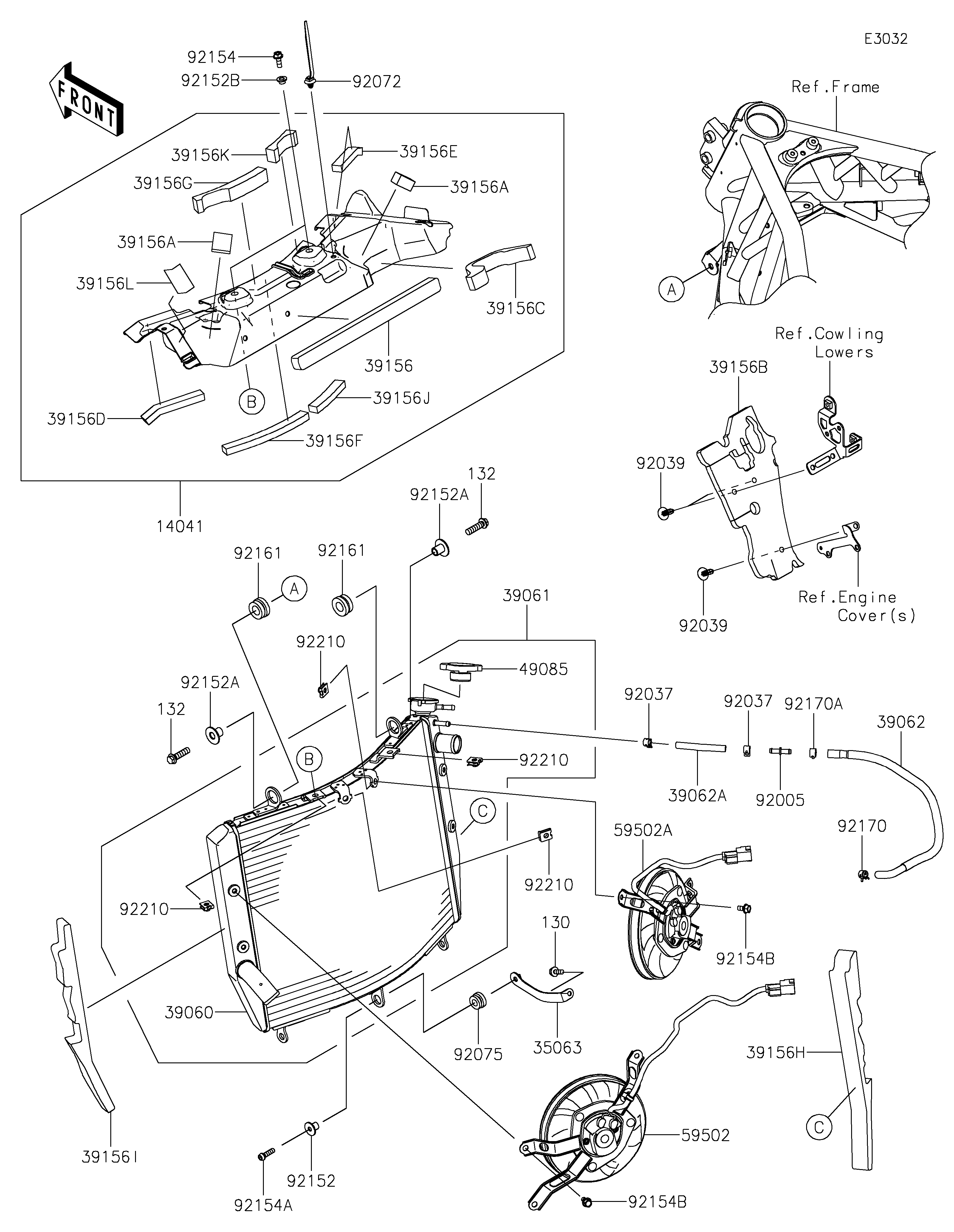

2022 NINJA H2® SX SE - Radiator

DOWNLOAD PDF
SELECT A NEW PART
14041
35063
39060
39061
39062
39062A
39156
39156A
39156A
39156B
39156C
39156D
39156E
39156F
39156G
39156H
39156I
39156J
39156K
39156L
49085
59502
59502A
92005
92037
92037
92039
92039
92072
92075
92152
92152A
92152A
92152B
92154
92154A
92154B
92154B
92161
92161
92170
92170A
92210
92210
92210
92210
130
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-COMP,HEAT 14041 14041-0603 1
STAY 35063 35063-1416 1
RADIATOR 39060 39060-0734 1
RADIATOR-ASSY 39061 39061-0842 1
HOSE-COOLING,CYLINDER-FITTING 39062 39062-0790 1
HOSE-COOLING,FITTING-RADIATOR 39062A 39062-0791 1
PAD,20X285X15 39156 39156-1840 1
PAD,27X27X15 39156A 39156-1841 2
PAD,HEAT GUARD,RH,ENGINE 39156B 39156-2222 1
PAD 39156C 39156-2240 1
PAD,94.4X15X10 39156D 39156-2248 1
PAD,68X15X10 39156E 39156-2249 1
PAD,141X15X10 39156F 39156-2250 1
PAD 39156G 39156-2251 1
PAD,HEAT GUARD,RH,RADIATOR 39156H 39156-2259 1
PAD,HEAT GUARD,LH,RADIATOR 39156I 39156-2260 1
PAD,80X15X10 39156J 39156-2327 1
PAD 39156K 39156-2328 1
PAD 39156L 39156-2401 1
CAP-ASSY-PRESSURE 49085 49085-0006 1
FAN-ASSY,LH 59502 59502-0634 1
FAN-ASSY,RH 59502A 59502-0635 1
FITTING 92005 92005-0721 1
CLAMP,TUBE 92037 92037-1461 2
RIVET 92039 92039-0090 3
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
DAMPER,RUBBER 92075 92075-1123 1
COLLAR,6.5X10X13.1 92152 92152-0332 1
COLLAR 92152A 92152-0439 2
COLLAR 92152B 92152-2111 2
BOLT,FLANGED,6X16 92154 92154-0887 2
BOLT,SOCKET,6X22 92154A 92154-1456 1
BOLT 92154B 92154-1648 6
DAMPER 92161 92161-0304 2
CLAMP 92170 92170-1493 1
CLAMP 92170A 92170-1872 1
NUT 92210 92210-1323 4
BOLT-FLANGED,6X16 130 130CC0616 1
BOLT-FLANGED-SMALL,8X30 132 132BC0830 2
