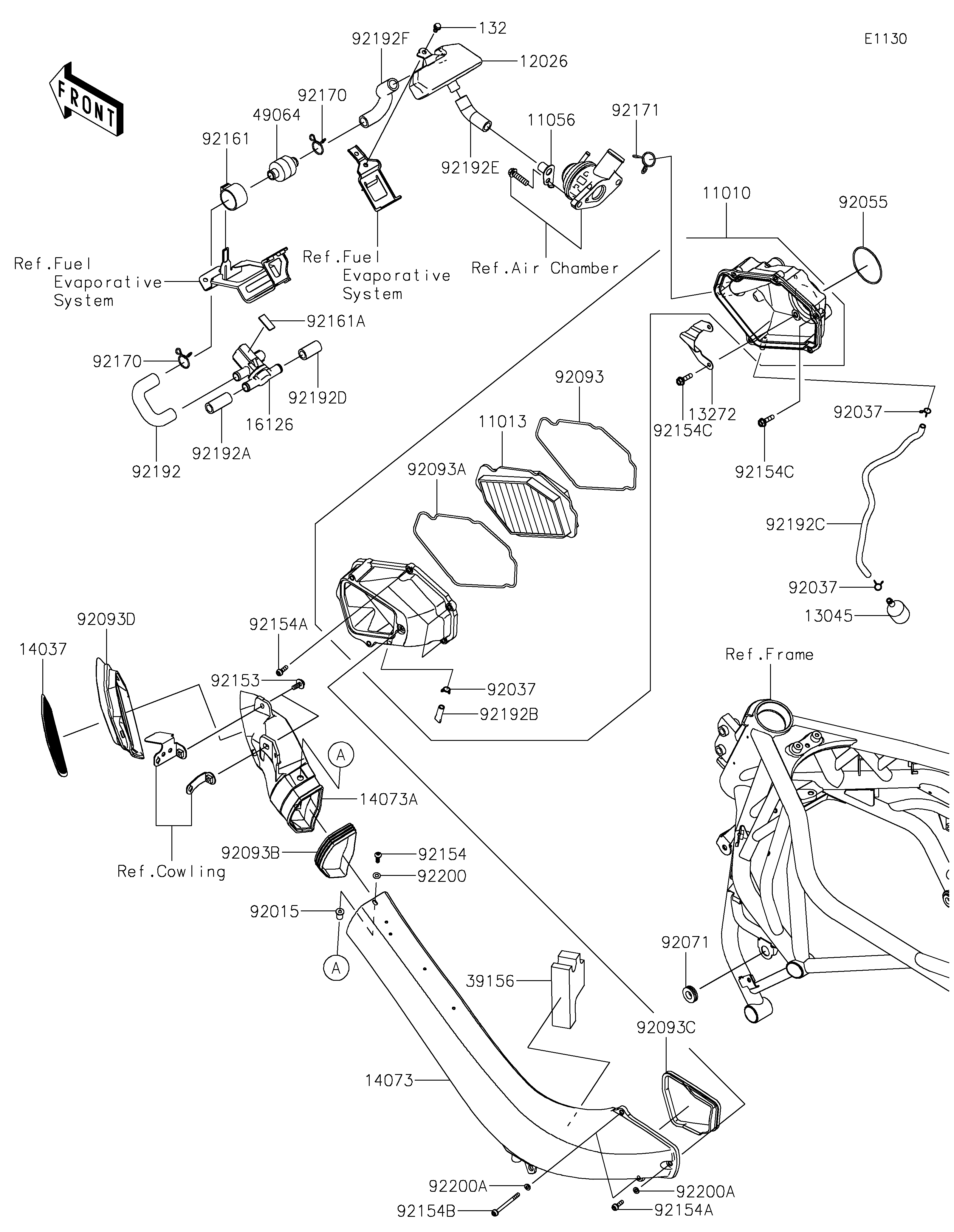

Parts Diagrams |
11010
11013
11056
12026
13045
13272
14037
14073
14073A
16126
39156
49064
92015
92037
92037
92037
92055
92071
92093
92093A
92093B
92093C
92093D
92153
92154
92154A
92154A
92154B
92154C
92154C
92161
92161A
92170
92170
92171
92192
92192A
92192B
92192C
92192D
92192E
92192F
92200
92200A
92200A
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0880 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-0776 | 1 | ||
| BRACKET,2ND AIR TUBE | 11056 | 11056-4479 | 1 | ||
| CHAMBER | 12026 | 12026-0024 | 1 | ||
| RECEIVER-OIL | 13045 | 13045-1057 | 1 | ||
| PLATE | 13272 | 13272-2494 | 1 | ||
| SCREEN,G.B.GREEN | 14037 | 14037-0822-46Y | 1 | ||
| DUCT,RAM AIR,RR,M.D.BLACK | 14073 | 14073-0880-17K | 1 | ||
| DUCT,RAM AIR,FR | 14073A | 14073-1867 | 1 | ||
| VALVE,AIR SWITCHING | 16126 | 16126-0745 | 1 | ||
| PAD | 39156 | 39156-2376 | 1 | ||
| FILTER-AIR | 49064 | 49064-0010 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 1 | ||
| CLAMP | 92037 | 92037-1712 | 3 | ||
| RING-O,59.6X2.4 | 92055 | 92055-0894 | 1 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| SEAL,ELEMENT | 92093 | 92093-0614 | 1 | ||
| SEAL,CASE | 92093A | 92093-0615 | 1 | ||
| SEAL,RR | 92093B | 92093-0619 | 1 | ||
| SEAL | 92093C | 92093-0620 | 1 | ||
| SEAL,FR | 92093D | 92093-0758 | 1 | ||
| BOLT,UPSET-WP,6X16 | 92153 | 92153-1587 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 1 | ||
| BOLT,SOCKET,5X18 | 92154A | 92154-1450 | 4 | ||
| BOLT,SOCKET,5X18 | 92154B | 92154-1452 | 2 | ||
| BOLT,FLANGED,6X22 | 92154C | 92154-3858 | 3 | ||
| DAMPER,FILTER | 92161 | 92161-1713 | 1 | ||
| DAMPER,12X27X2 | 92161A | 92161-2122 | 1 | ||
| CLAMP | 92170 | 92170-1997 | 2 | ||
| CLAMP | 92171 | 92171-0391 | 1 | ||
| TUBE,ASWV-AIR FILTER | 92192 | 92192-1834 | 1 | ||
| TUBE,ASWV-HEAD CAP,LH | 92192A | 92192-1847 | 1 | ||
| TUBE,CAP | 92192B | 92192-1908 | 1 | ||
| TUBE,6X9X345 | 92192C | 92192-1910 | 1 | ||
| TUBE,ASWV-HEAD CAP,RH | 92192D | 92192-2276 | 1 | ||
| TUBE | 92192E | 92192-2503 | 1 | ||
| TUBE | 92192F | 92192-2504 | 1 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 1 | ||
| WASHER,5.2X10X1.5 | 92200A | 92200-2217 | 3 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 1 |
