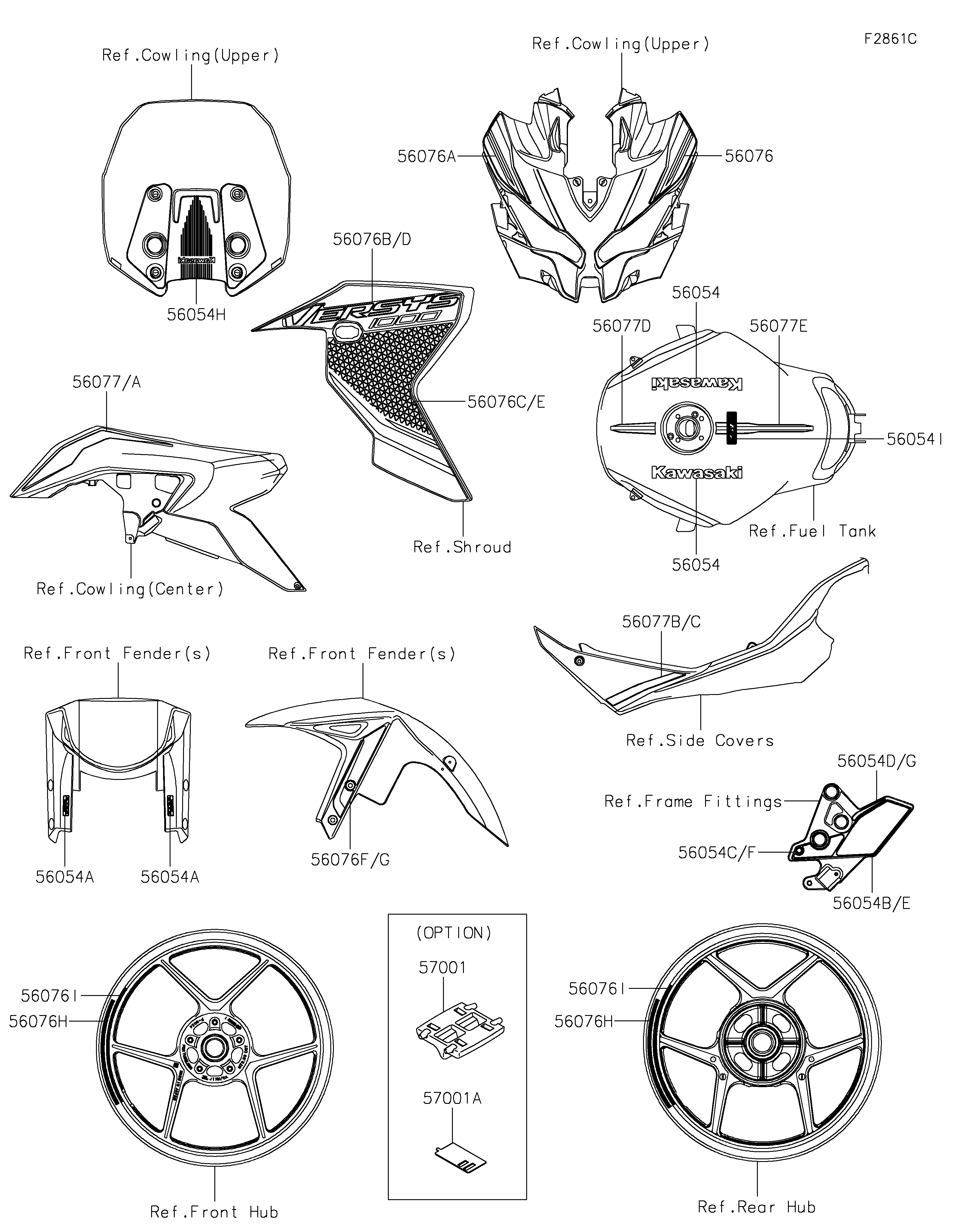

2024 Versys 1000 SE LT+ - Decals(Black/Red)(DPSNN)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56054H
56054I
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076H
56076I
56076I
56077
56077A
56077B
56077C
56077D
56077E
57001
57001A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56054 56054-1404 2
MARK,FR FENDER,KTRC ABS 56054A 56054-1428 2
MARK,STEP STAY,LH,RR 56054B 56054-1548 1
MARK,STEP STAY,LH,FR 56054C 56054-1549 1
MARK,STEP STAY,LH,SIDE 56054D 56054-1710 1
MARK,STEP STAY,RH,RR 56054E 56054-1711 1
MARK,STEP STAY,RH,FR 56054F 56054-1712 1
MARK,STEP STAY,RH,SIDE 56054G 56054-1713 1
MARK,WINDSHIELD,KAWASAKI 56054H 56054-2185 1
MARK,FUEL TANK,SE,3D 56054I 56054-2435 1
PATTERN,UPP COWL.,LH 56076 56076-7714 1
PATTERN,UPP COWL.,RH 56076A 56076-7715 1
PATTERN,SHROUD,LH,UPP 56076B 56076-7718 1
PATTERN,SHROUD,LH,LWR 56076C 56076-7719 1
PATTERN,SHROUD,RH,UPP 56076D 56076-7720 1
PATTERN,SHROUD,RH,LWR 56076E 56076-7721 1
PATTERN,FR FENDER,LH 56076F 56076-7724 1
PATTERN,FR FENDER,RH 56076G 56076-7725 1
PATTERN,WHEEL,253X6 56076H 56076-7726 4
PATTERN,WHEEL,273X12 56076I 56076-7727 4
PATTERN,SIDE COWL.,LH 56077 56077-0048 1
PATTERN,SIDE COWL.,RH 56077A 56077-0049 1
PATTERN,SIDE COVER,LH 56077B 56077-0050 1
PATTERN,SIDE COVER,RH 56077C 56077-0051 1
PATTERN,FUEL TANK,UPP,FR 56077D 56077-0096 1
PATTERN,FUEL TANK,UPP,RR 56077E 56077-0097 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
RIM STRIPE APPLICATOR,10/12MM 57001A 57001-1836 AR (OPTION)
