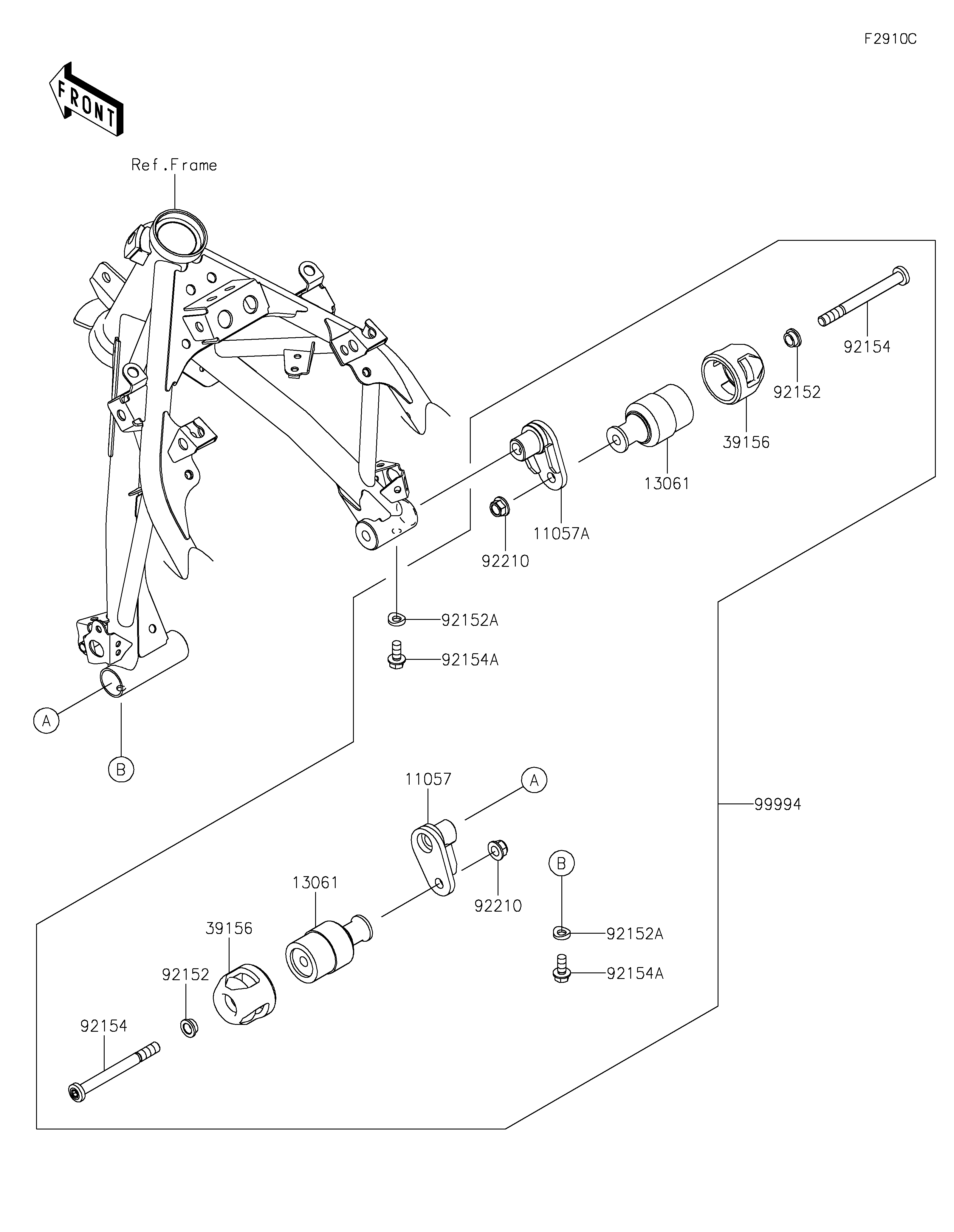

2021 NINJA® 400 - Accessory(Slider)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
13061
13061
39156
39156
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92210
92210
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SLIDER,LH 11057 11057-1234 1
BRACKET,SLIDER,RH 11057A 11057-1235 1
BOSS 13061 13061-0782 2
PAD,SLIDER 39156 39156-1913 2
COLLAR,10.2X14X7 92152 92152-2129 2
COLLAR,8.3X16 92152A 92152-2423 2
BOLT,SOCKET,10X105 92154 92154-1767 2
BOLT-FLANGED,8X14 92154A 92154-3798 2
NUT,LOCK,FLANGED,10MM 92210 92210-1081 2
KIT-ACCESSORY,SLIDER 99994 99994-1036 1
