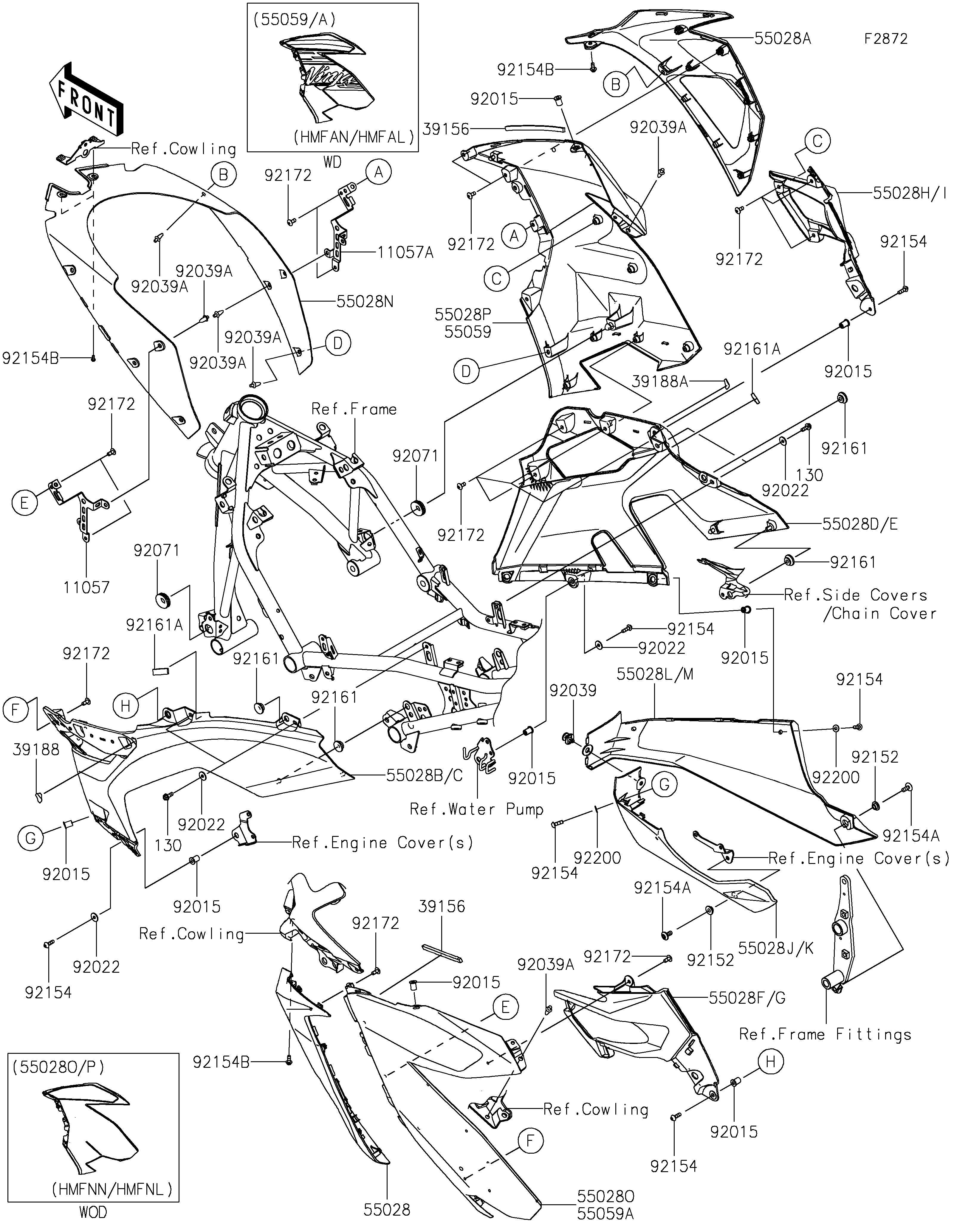

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11057
11057A
39156
39156
39188
39188A
55028
55028A
55028B
55028D
55028F
55028H
55028K
55028M
55028N
55028O
55028P
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92039
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92152
92152
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COWL.,FR,LH | 11057 | 11057-1197 | 1 | ||
| BRACKET,COWL.,FR,RH | 11057A | 11057-1198 | 1 | ||
| PAD,7X130X5 | 39156 | 39156-2296 | 2 | ||
| TAPE,LWR SIDE COWL.,LH | 39188 | 39188-0573 | 1 | ||
| TAPE,LWR SIDE COWL.,RH | 39188A | 39188-0574 | 1 | ||
| COWLING,SIDE,FR,LH | 55028 | 55028-0637 | 1 | ||
| COWLING,SIDE,FR,RH | 55028A | 55028-0638 | 1 | ||
| COWLING,SIDE,LWR,LH,P.RED | 55028B | 55028-0641-234 | 1 | ||
| COWLING,SIDE,LWR,RH,P.RED | 55028D | 55028-0642-234 | 1 | ||
| COWLING,FIN,LH,M.S.SILVER | 55028F | 55028-0643-35Z | 1 | ||
| COWLING,FIN,RH,M.S.SILVER | 55028H | 55028-0644-35Z | 1 | ||
| COWLING,LWR,LH,M.F.S.BLACK | 55028K | 55028-0645-739 | 1 | ||
| COWLING,LWR,RH,M.F.S.BLACK | 55028M | 55028-0646-739 | 1 | ||
| COWLING,INNER | 55028N | 55028-0647 | 1 | ||
| COWLING,SIDE,UPP,LH,P.RED | 55028O | 55028-0686-234 | 1 | ||
| COWLING,SIDE,UPP,RH,P.RED | 55028P | 55028-0687-234 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 10 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 6 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0060 | 10 | ||
| GROMMET | 92071 | 92071-1043 | 2 | ||
| COLLAR,6.5X10X5.6 | 92152 | 92152-0445 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 8 | ||
| BOLT,SOCKET,6X14 | 92154A | 92154-0932 | 2 | ||
| BOLT,SOCKET,5X12 | 92154B | 92154-1421 | 4 | ||
| DAMPER | 92161 | 92161-1531 | 6 | ||
| DAMPER,10X28X5 | 92161A | 92161-2107 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 22 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 4 | ||
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 4 |
| BRACKET,COWL.,FR,LH | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,COWL.,FR,RH | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,7X130X5 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TAPE,LWR SIDE COWL.,LH | |
| REF # | 39188 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAPE,LWR SIDE COWL.,RH | |
| REF # | 39188A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,FR,LH | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,FR,RH | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LWR,LH,P.RED | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LWR,RH,P.RED | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,LH,M.S.SILVER | |
| REF # | 55028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,RH,M.S.SILVER | |
| REF # | 55028H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.F.S.BLACK | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.F.S.BLACK | |
| REF # | 55028M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER | |
| REF # | 55028N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,LH,P.RED | |
| REF # | 55028O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,RH,P.RED | |
| REF # | 55028P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X5.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X12 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X28X5 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X12X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
