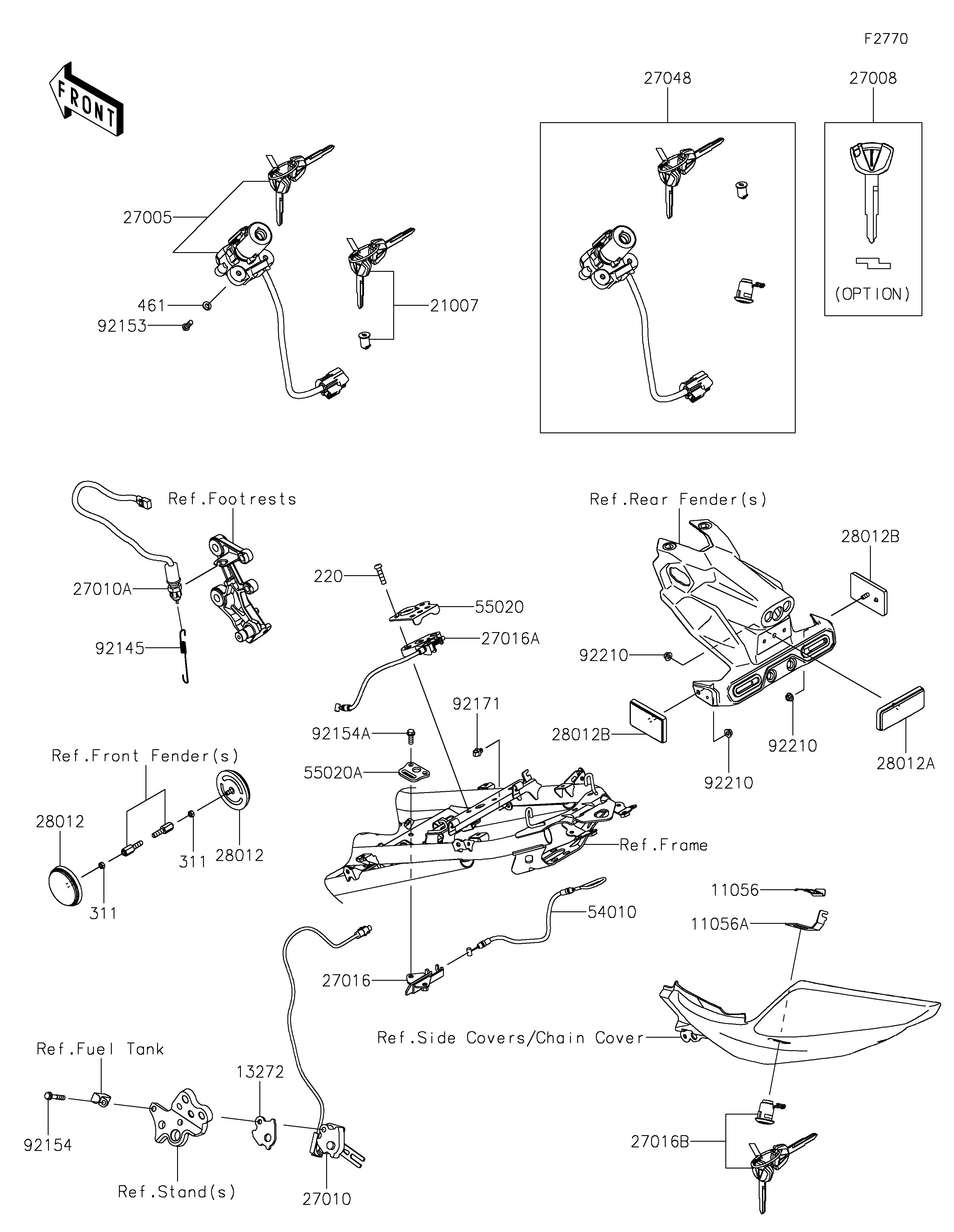

2021 NINJA® 400 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
13272
21007
27005
27008
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
28012B
28012B
54010
55020
55020A
92145
92153
92154
92154A
92171
92210
92210
92210
220
311
311
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLASP 11056 11056-0238 1
BRACKET,SEAT LOCK 11056A 11056-2119 1
PLATE 13272 13272-1330 1
ROTOR,LOCK,TANK CAP 21007 21007-5077 1
SWITCH-ASSY-IGNITION 27005 27005-0635 1
KEY-LOCK,BLANK 27008 27008-0596 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0845 1
SWITCH,STOP 27010A 27010-0863 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT STRIKER 27016A 27016-0025 1
LOCK-ASSY,SEAT 27016B 27016-5386 1
SWITCH-ASSY 27048 27048-5144 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
CABLE 54010 54010-0621 1
GUARD 55020 55020-2193 1
GUARD,SEAT STRIKER 55020A 55020-2246 1
SPRING,BRAKE LAMP SWITCH 92145 92145-0683 1
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,FLANGED,6X35 92154 92154-1009 1
BOLT,FLANGED-SMALL,6X16,TB2468 92154A 92154-3869 2
CLAMP 92171 92171-0939 1
NUT,FLANGED,5MM 92210 92210-0007 3
SCREW-PAN-CROS,6X25 220 220AC0625 2
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
