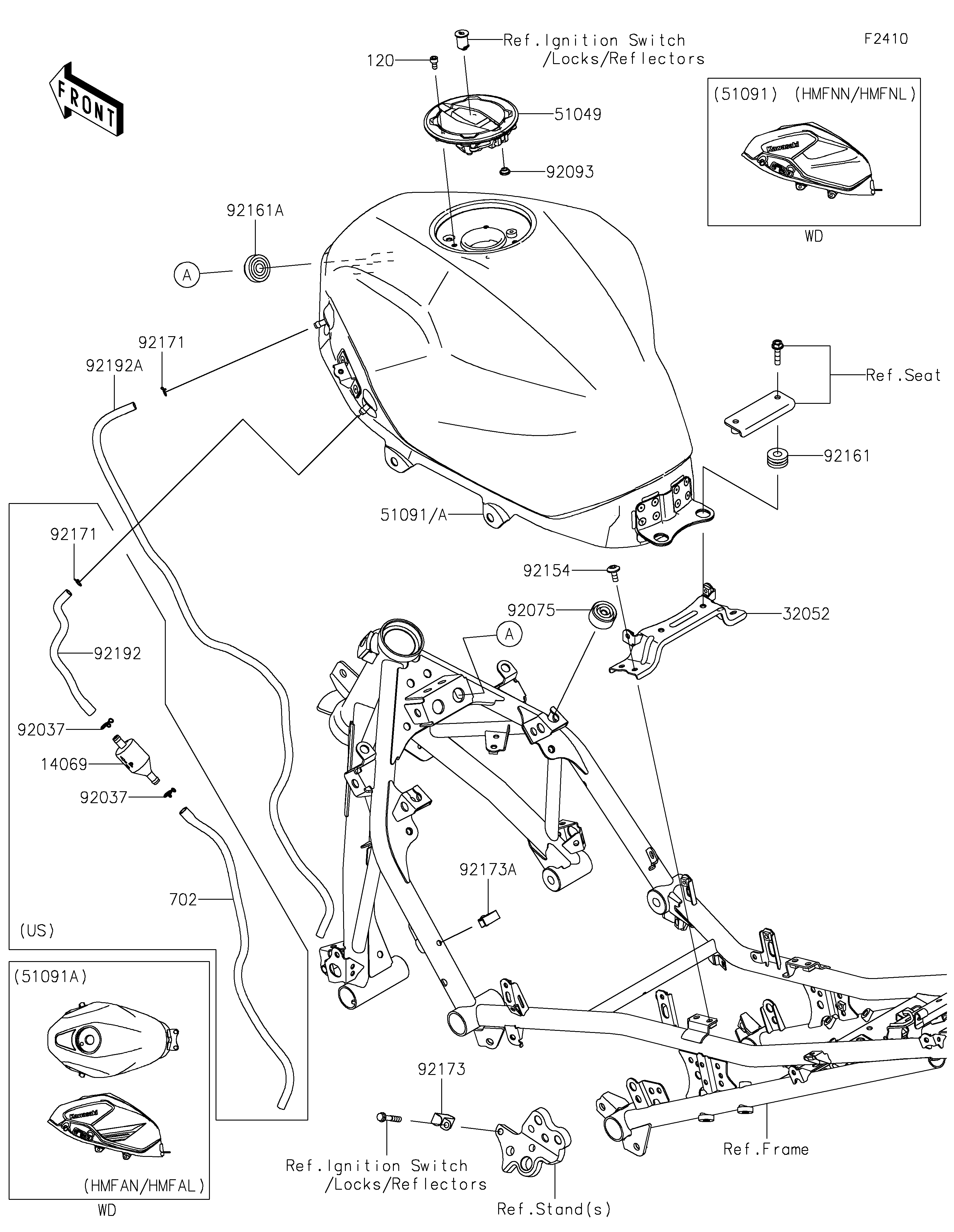

2021 NINJA® 400 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
32052
51049
51091
92037
92037
92075
92093
92154
92161
92161A
92171
92171
92173
92173A
92192
92192A
120
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,FUEL TANK 14069 14069-1004 1 US
BRACKET-TANK 32052 32052-0809 1
CAP-TANK 51049 51049-0735 1
TANK-COMP-FUEL,P.RED 51091 51091-5069-234 1
CLAMP,TUBE 92037 92037-147 2 US
DAMPER 92075 92075-015 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X14 92154 92154-0932 4
DAMPER,10X24X12 92161 92161-0927 2
DAMPER,10X32X17 92161A 92161-1980 2
CLAMP,8X0.7 92171 92171-1973 1 CA
CLAMP 92173 92173-0833 1
CLAMP,HOLDER CLIP 92173A 92173-0868 1
TUBE,6X9X200 92192 92192-1824 1 US
TUBE,DRAIN,6X9X810 92192A 92192-1860 1
BOLT-SOCKET,5X10 120 120CC0510 4
TUBE-RUBBER,6X9X450 702 702A06450 1 US
CLAMP,8X0.7 92171 92171-1973 2 US
