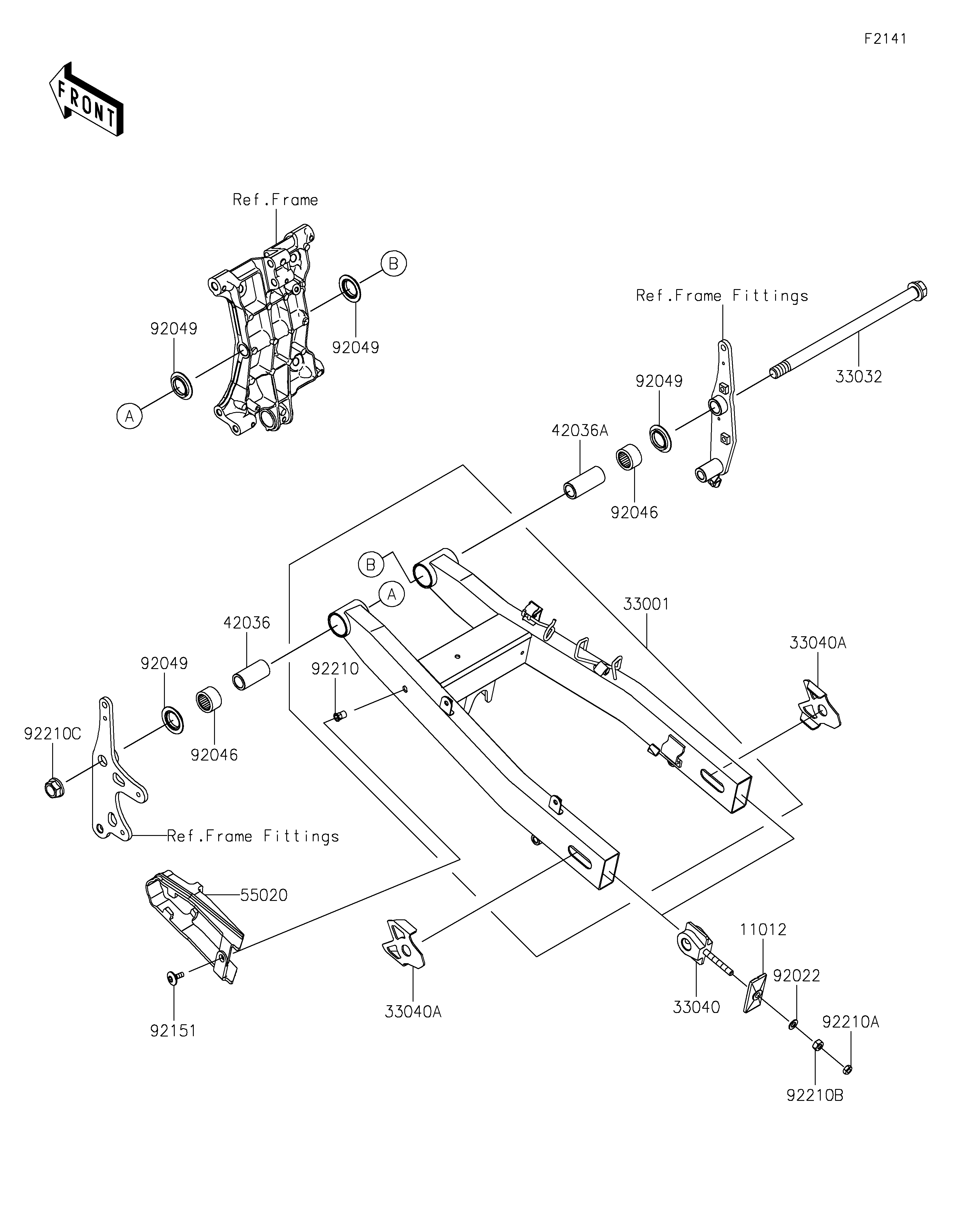

2021 NINJA® 400 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11012
33001
33032
33040
33040A
33040A
42036
42036A
55020
92022
92046
92046
92049
92049
92049
92049
92151
92210
92210A
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAIN ADJUSTER,F.S.BLACK 11012 11012-1871-18R 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0681-18R 1
SHAFT-SWING ARM,17X285 33032 33032-0056 1
ADJUSTER-CHAIN 33040 33040-0089 2
ADJUSTER-CHAIN,F.S.BLACK 33040A 33040-0090-18R 2
SLEEVE 42036 42036-0805 1
SLEEVE 42036A 42036-0806 1
GUARD,CHAIN 55020 55020-2199 1
WASHER,8.5X16X1.2 92022 92022-1582 2
BEARING-NEEDLE,BM2520 92046 92046-1228 2
SEAL-OIL,MF025N1 92049 92049-1426 4
BOLT,SOCKET,6X18 92151 92151-1149 1
NUT,POP,6MM,L=15 92210 92210-1397 1
NUT,8MM,5X12 92210A 92210-1588 2
NUT,8MM,6.5X14 92210B 92210-1589 2
NUT,16MM 92210C 92210-1590 1
