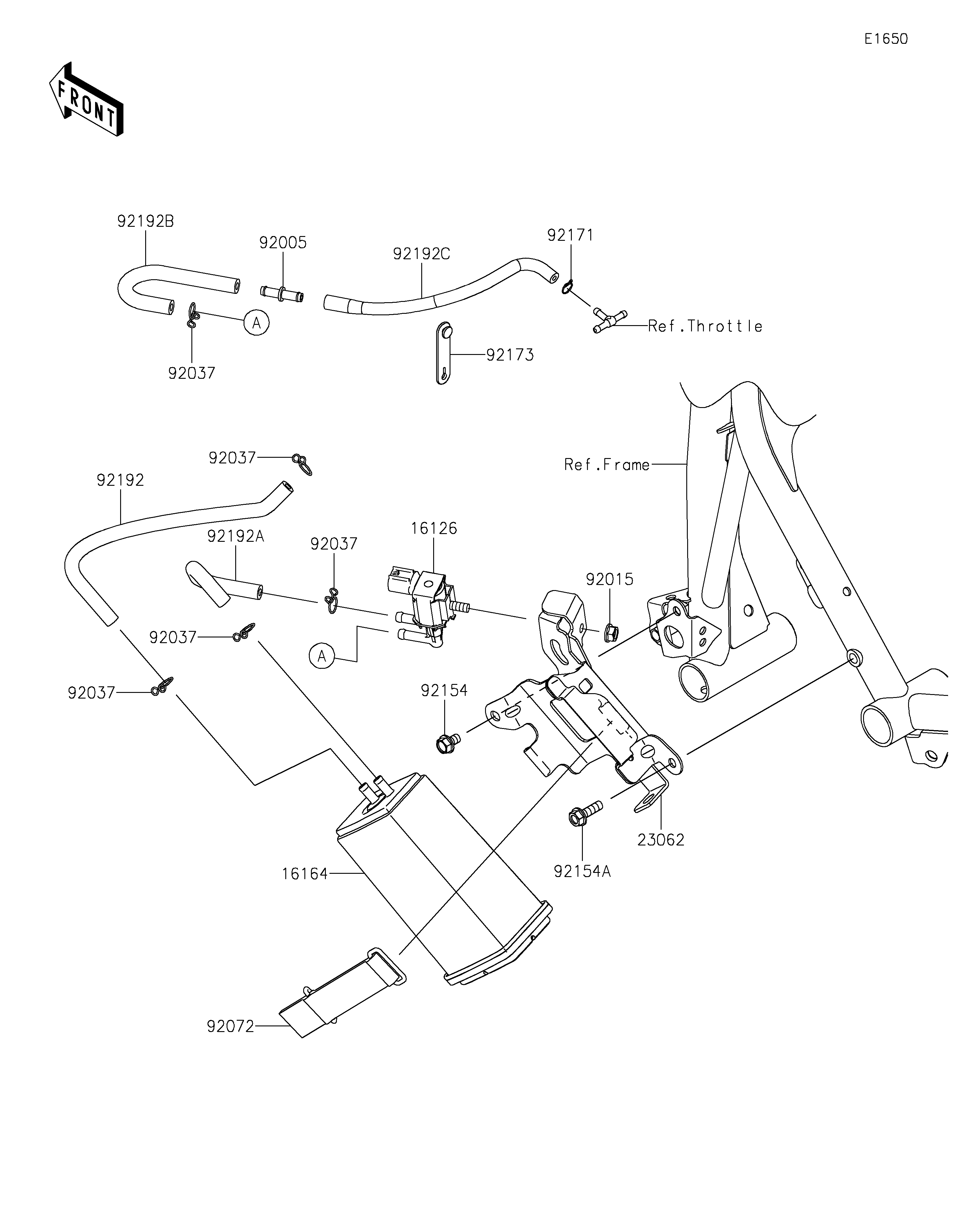

2021 NINJA® 400 - Fuel Evaporative System(CA)
16126
16164
23062
92005
92015
92037
92037
92037
92037
92037
92072
92154
92154A
92171
92173
92192
92192A
92192B
92192C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0012 | 1 | CA | |
| BRACKET-COMP,CANISTER | 23062 | 23062-0949 | 1 | CA | |
| FITTING | 92005 | 92005-0721 | 1 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 5 | CA | |
| BAND,CANISTER | 92072 | 92072-0815 | 1 | CA | |
| BOLT,FLANGED,6X10 | 92154 | 92154-2939 | 1 | CA | |
| BOLT-FLANGED,6X20 | 92154A | 92154-3812 | 1 | CA | |
| CLAMP | 92171 | 92171-0573 | 1 | CA | |
| CLAMP,RUBBER PLATE | 92173 | 92173-1229 | 1 | CA | |
| TUBE,FUEL TANK-CANISTER | 92192 | 92192-1806 | 1 | CA | |
| TUBE,CANISTER-VALVE SOLENOID | 92192A | 92192-1807 | 1 | CA | |
| TUBE,SOLENOID VALVE-FITTING | 92192B | 92192-1808 | 1 | CA | |
| TUBE,FITTING-THROTTLE BODY | 92192C | 92192-1920 | 1 | CA |
