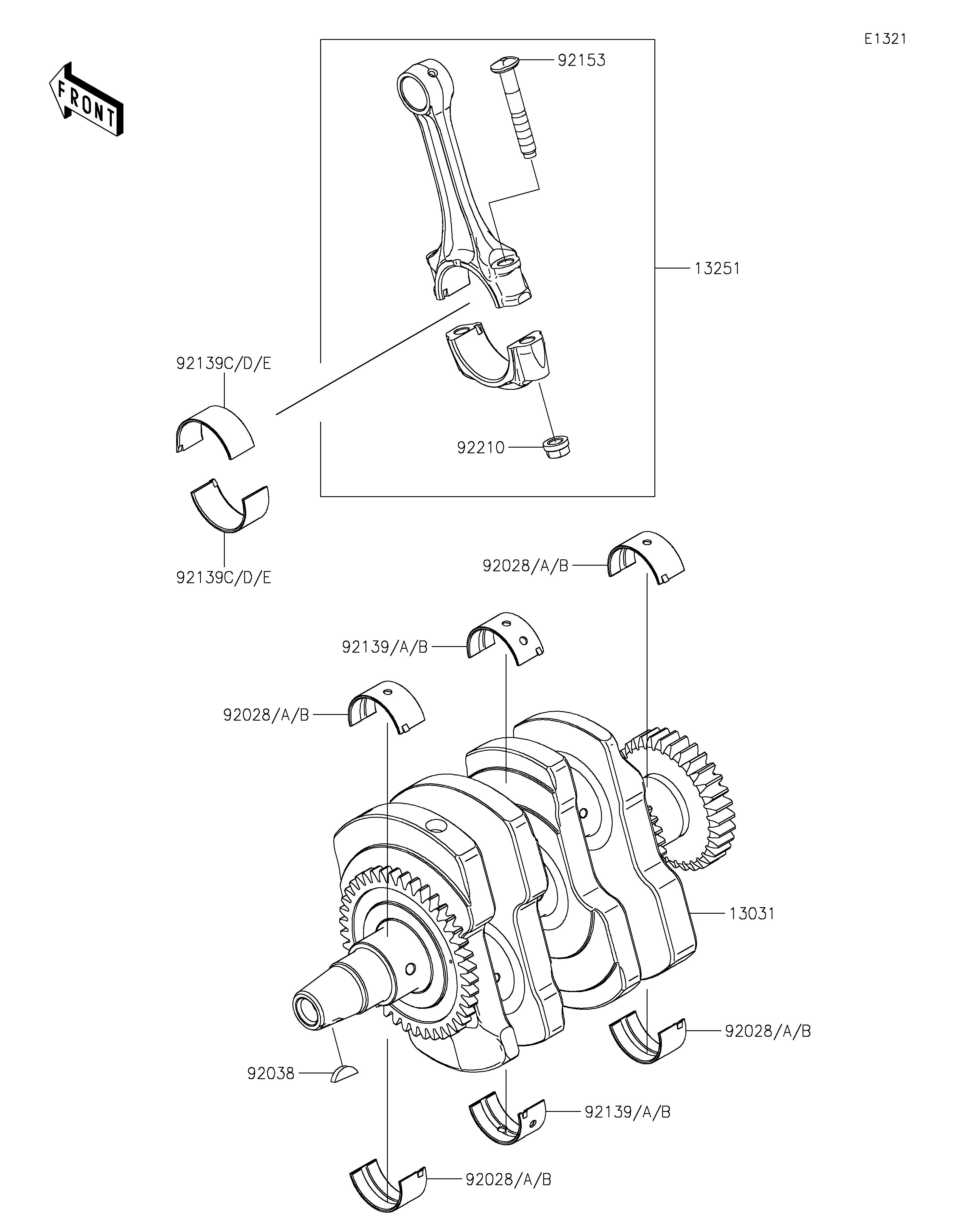

Parts Diagrams |
13031
13251
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92038
92139
92139
92139A
92139A
92139B
92139B
92139C
92139C
92139D
92139D
92139E
92139E
92153
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0878 | 1 | ||
| ROD-ASSY-CONNECTING,HH | 13251 | 13251-0727-HH | 2 | ||
| BUSHING,CRANK,#1,BLUE | 92028 | 92028-1866 | AR | ||
| BUSHING,CRANK,#1,BLACK | 92028A | 92028-1867 | 4 | ||
| BUSHING,CRANK,#1,BROWN | 92028B | 92028-1868 | AR | ||
| KEY,WOODRUFF | 92038 | 92038-001 | 1 | ||
| BUSHING,CRANK #2,BLUE | 92139 | 92139-0880 | AR | ||
| BUSHING,CRANK #2,BLACK | 92139A | 92139-0881 | 2 | ||
| BUSHING,CRANK #2,BROWN | 92139B | 92139-0882 | AR | ||
| BUSHING,CONNECTING ROD,BLUE | 92139C | 92139-0886 | AR | ||
| BUSHING,CONNECTING ROD,BLACK | 92139D | 92139-0887 | 4 | ||
| BUSHING,CONNECTING ROD,BROWN | 92139E | 92139-0888 | AR | ||
| BOLT,7MM | 92153 | 92153-1172 | 4 | ||
| NUT,CONNECTING ROD,7MM | 92210 | 92210-0384 | 4 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,HH | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,BLUE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,BLACK | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,BROWN | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| KEY,WOODRUFF | |
| REF # | 92038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #2,BLUE | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #2,BLACK | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK #2,BROWN | |
| REF # | 92139B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLUE | |
| REF # | 92139C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLACK | |
| REF # | 92139D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BROWN | |
| REF # | 92139E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,7MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CONNECTING ROD,7MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
